Before use

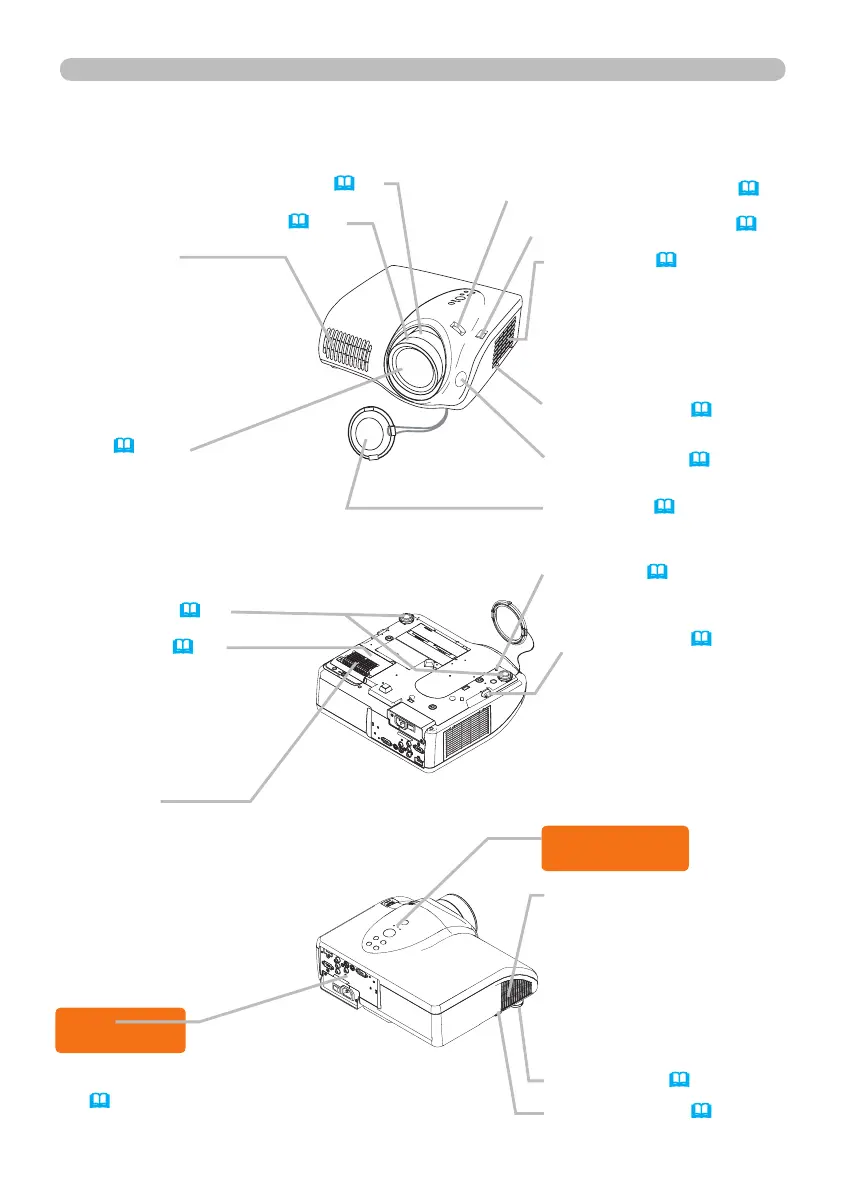

Part names
Projector
Exhaust vent
► Do not block or cover the
projector's vents.
► To avoid being burnt,
please do not touch areas
near the vents while the
projector is in use or
immediately after use.
Lens (9, 60)
A bright light for projecting is
emitted from the lens.
► Please do not look into the
lens while the projector is
in use.
Elevator feet (12)
Lamp cover (57)
Covers the lamp.
► The lamp has a finite
product life. Preparation
of a new lamp and
early replacement are
recommended.
Intake vent
► Do not place anything that
may be sucked into or stick
to the vents underneath
the projector.
Zoom ring (22)
Focus ring (22)
(Front right view)
Filter cover (58)
Covers the air filter and intake
vent.
► Maintain the air filter to
ensure proper ventilation.
Control buttons
See next page.
Exhaust vent
► Do not block or cover the
projector's vents.
► To avoid being burnt,
please do not touch areas
near the vents while the
projector is in use or
immediately after use.
Ports
See next page.
► Please see the
“Connecting your devices”
(13) section for more
information.
Horizontal lens shift dials (22)
Vertical lens shift dials (
22)
Elevator button (12)
Remote sensor (19)
Lens cover (9)
Strap hole (9)
Elevator button (12)
Elevator foot (12)
Elevator button (12)
(Bottom view)
(Rear left view)
