5.4.2 Installation
5.4.2.1 Installation site selection
Take note of the maximum admissible cable length between units and the control as well as between the units them-
selves, as shown in the following table:
Cable section 0.3 mm
2
≥ 0.75 mm
2
Cable length 30 m 500 m
5.4.2.2 Components list
Unpack the unit and check that:
• The package contains all the components (see next table).
• All components are in perfect condition.
Otherwise, contact the manufacturer.

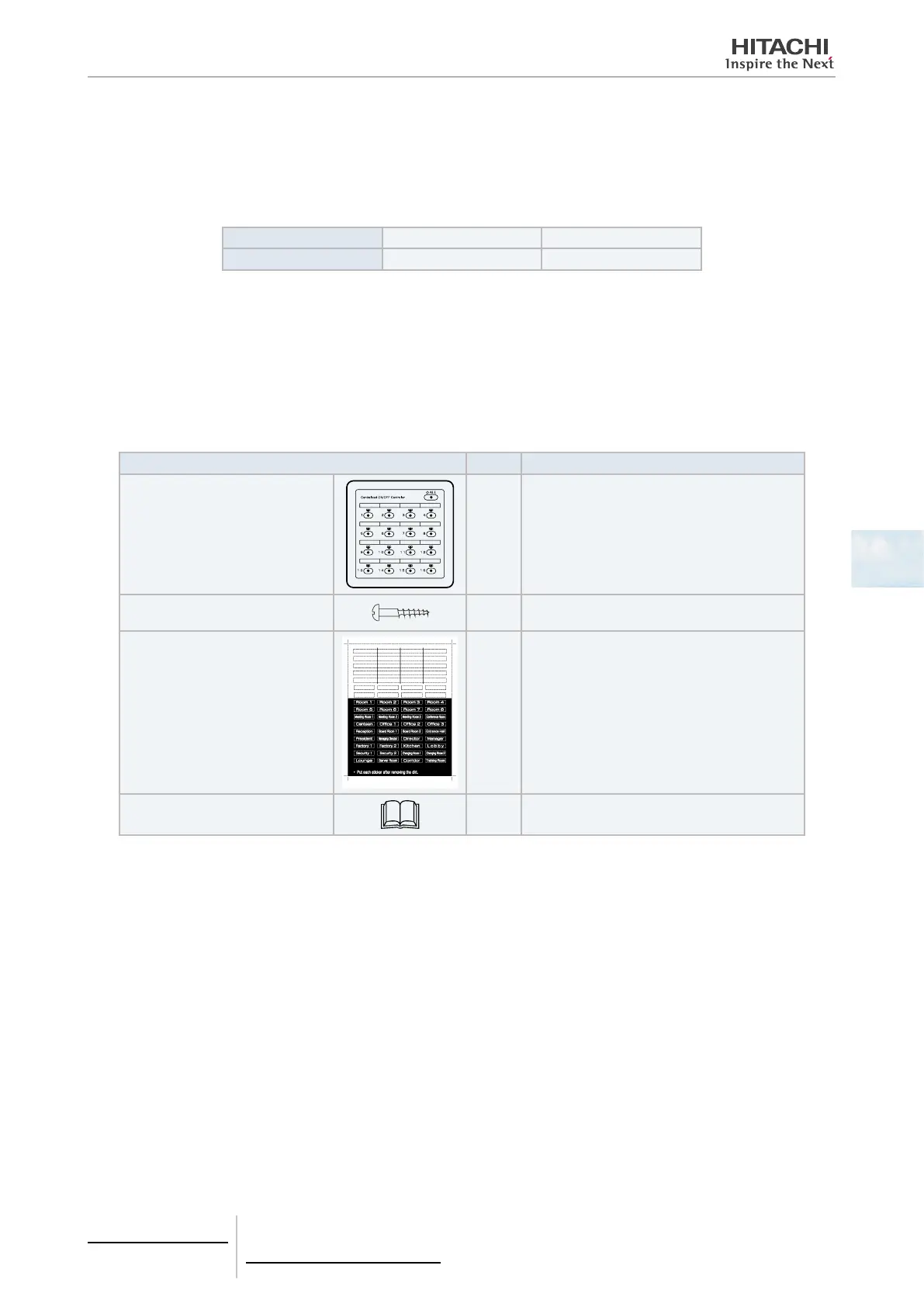

Name Quant. Comments
Centralised ON/OFF Controller
1
For managing the run/stop state of up to 16
groups of units
M4x16L screws
2
For xing the centralised ON/OFF controller to
the wall
Seal
1 For attaching nameplate
Installation and operation manual
1 Installation and operation unit instructions.
5 Centralised remote controls
PSC-A16RS
