Hitachi PSC-6RAD - Dimensional Data; Installation Space

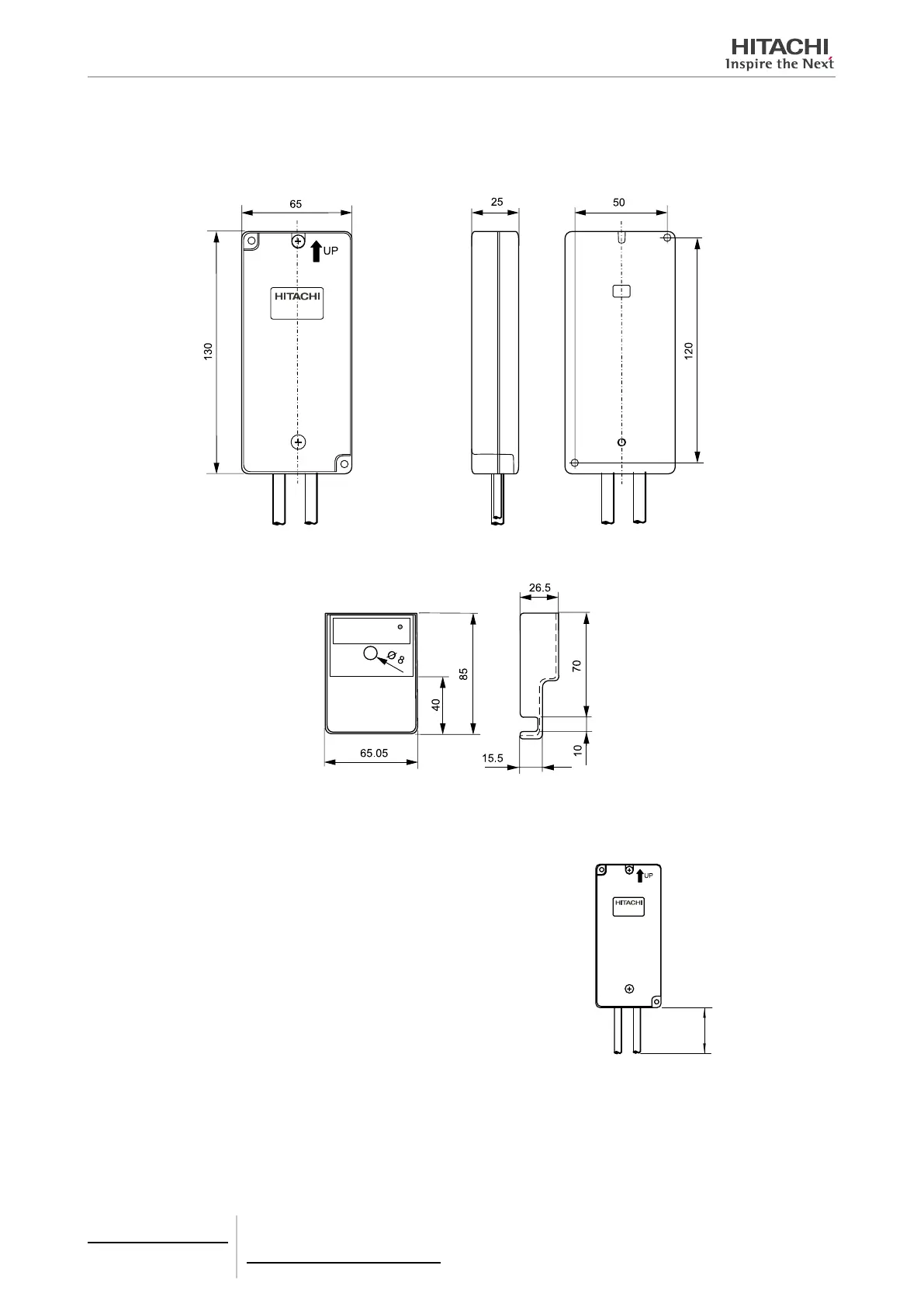

8.2.2.3 Dimensional data
All dimensions are in mm.

Adaptor

Wiring cover
8.2.2.4 Installation space
Keep a distance of at least 50 mm under the lower side of PSC-6RAD to enable
bending the cables easily.
At least 50 mm
