7 Gateways for building management systems
KNX001
TCGB0106 rev.0 - 12/2014
656656

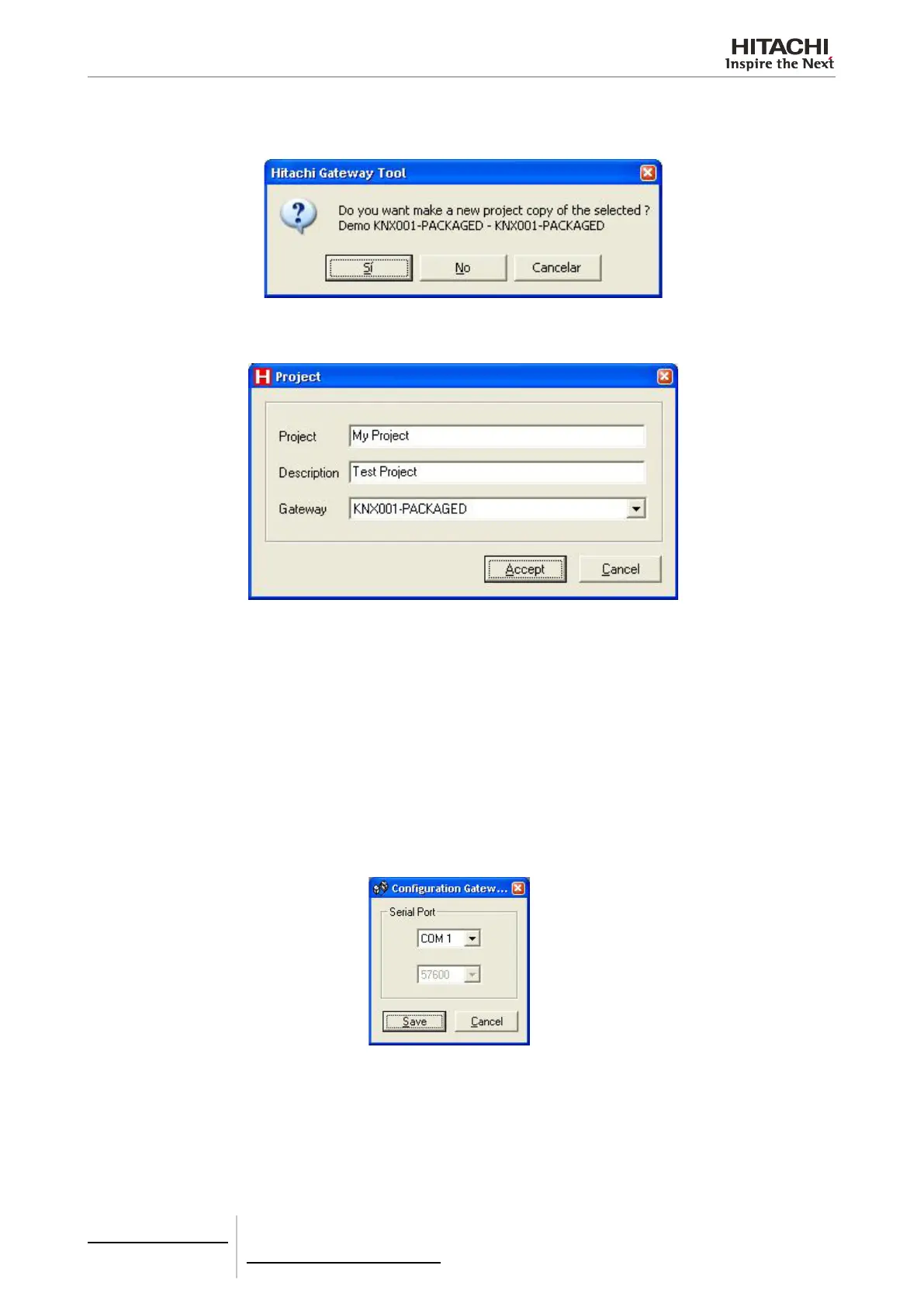

To create a new project, select a project with the same external protocol as the one you want to use and press New.
You will be asked whether a copy of a selected project or a new one is to be created.
If you select Yes, you will be able to specify the name and description of the new project, based on the same external pro-
tocol selected. If you select No, you will also be able to select the type of machines to use in the new project.
When you accept, a new folder will be created within the project folder, with the name of the project. If you select new
project without copying from another, the conguration by default will be that dened in the template les. Otherwise,
it will be the same as that of the copied project.
Connection with KNX001
Even if there is no connection with con KNX001 (Off-line), it is possible congure KNX001 easily in the ofce.
Before you can download the conguration and monitor KNX001, connection must be established between HGT
and KNX001 (On-line). This is done with the following steps:
1 Ensure that KNX001 is powered and correctly connected to the KNX bus and the external system.
2 Connect HGT, using the connector marked PC, to a serial port of the PC. USB-RS232 adaptors can be used.
3 In HGT select the serial port to be used for the connection, via Conguration Menu -> Connection.
