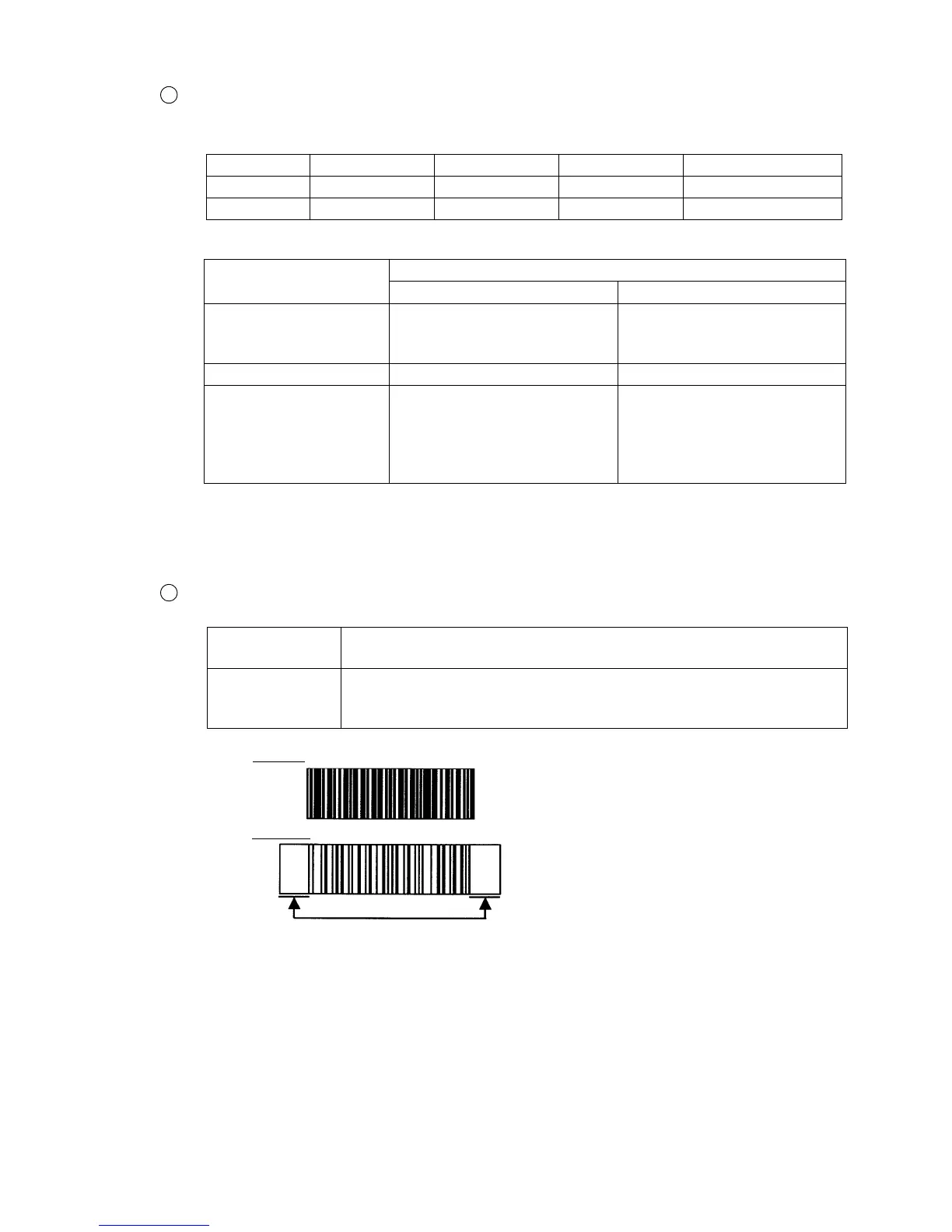

4-66 ●Set the print specifications
EAN Prefix
●Whether to set bar code EAN-13, EAN-8 country code by character input or print format is selected.
3
Number of digits of bar code
Country code Data Check digit Total number of digits
EAN-13 2 10 1 13
EAN-8251 8
EAN Prefix
Set value
Character input Print format
Handling of country code
Country code is input at the head
of the data.
Set by print format without
including country code in the
data.
Print format screen Country code is not displayed. Set the country code.
Edit message screen
For EAN-13, input 12 digits and
for EAN-8, input 7 digits, all
including the country code.
However, check digit is
excluded.
For EAN-13 input 10 digits and
for EAN-8, input 5 digits, with-
out including the country code.
However, the check digit is
excluded.
Normal
The barcode dot data will be printed as is.
(With yellow ink, a yellow bar is created.)
Reverse
The barcode dot data will be reversed and printed.
(The work color will become the color of the bar. The ink color will be that
of background.)
●When the country code is changed at the Print format screen, the country code for all the bar code
items in that message is changed to the same value.
●For UPC-A, input 11 digits including the prefix code at the edit message screen.
Barcode print
●Set the barcode print system.
●The white areas (quiet zone) are necessary at both ends of barcode for the barcode to be recognized.
Input one or two characters with all dots marked out (provided on numeric keyboard screen) to the
previous line and next line items.
●For DM codes and QR codes, printing will be performed in normal mode even if reverse is selected.
For DM codes and QR codes, process data to reverse mode at reader side before reading.
4
Normal
Reverse
Quiet zone
