S1 series standard inverter
-47-

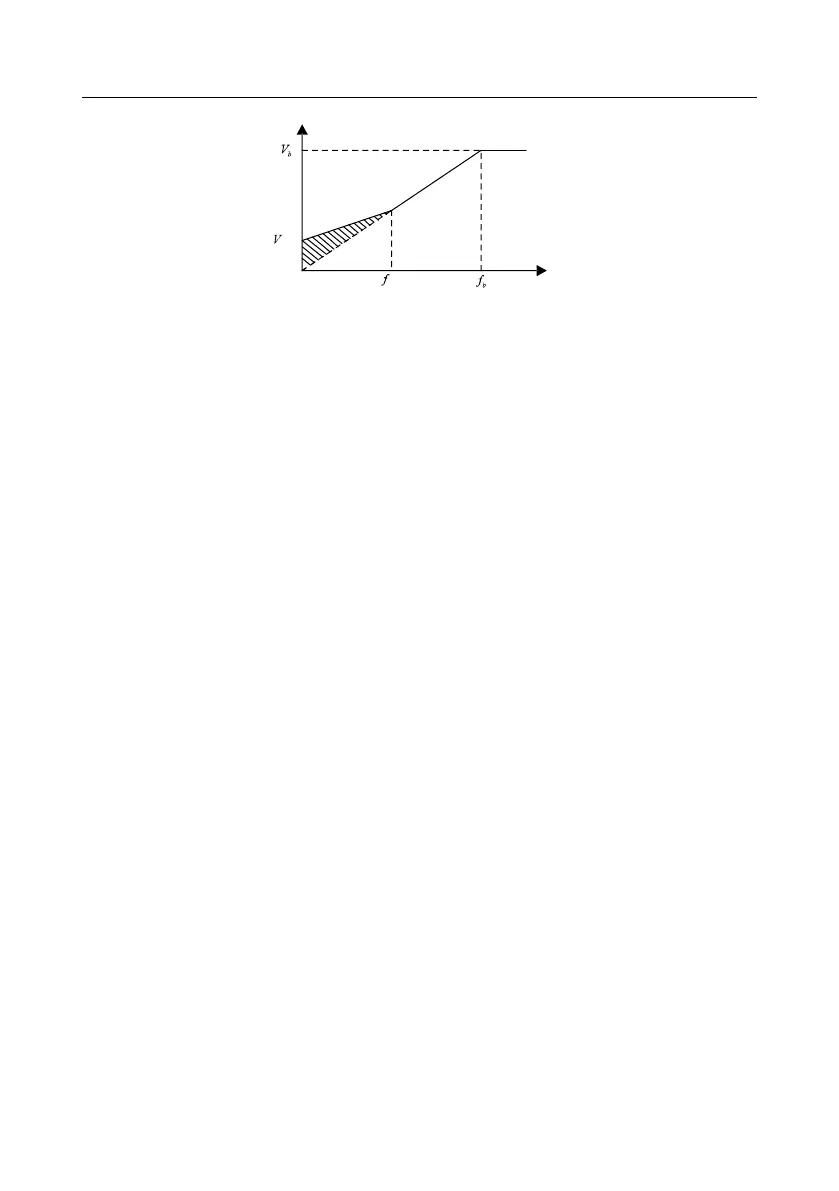

Output voltage V
Output frequency f
cut-off
boost
2. Energy-saving run
During actual running, the inverter can search for the max. efficiency point to keep running in the most
efficient state to save energy.
Note:
(1) This function is generally used in light load or no-load cases.
(2) This function does for fit in cases where load transient is required.
3. V/F slip compensation gain
V/F control belongs to open-loop mode, which will cause motor speed to fluctuate when motor load
transients. In cases where strict speed requirement is needed, users can set the slip compensation
gain to compensate for the speed variation caused by load fluctuation through internal output
adjustment of inverter.
The set range of slip compensation gain is 0–200%, in which 100% corresponds to rated slip
frequency.
Note: Rated slip frequency= (rated synchronous speed of motor-rated speed of motor) × number of
motor pole pairs/60
4. Oscillation control
Motor oscillation often occurs in V/F control in large-power drive applications. To solve this problem,
S1 series inverter sets two function codes to control the oscillation factor, and users can set the
corresponding function code based on the occurrence frequency of oscillation.
Note: The larger the set value, the better the control effect, however, if the set value is too large, it
may easily lead to too large inverter output current.
5. Asynchonous motor IF control
The IF control described in this manual is only involved with asynchonrous motors. IF control is
implemented by performing closed-loop control on the total output current of the inverter. The output
voltage adapts to the current reference, and open-loop control is separately performed over the
frequency of the voltage and current.
Customized V/F curve (V/F separation) function:
