3.4 Product nameplate

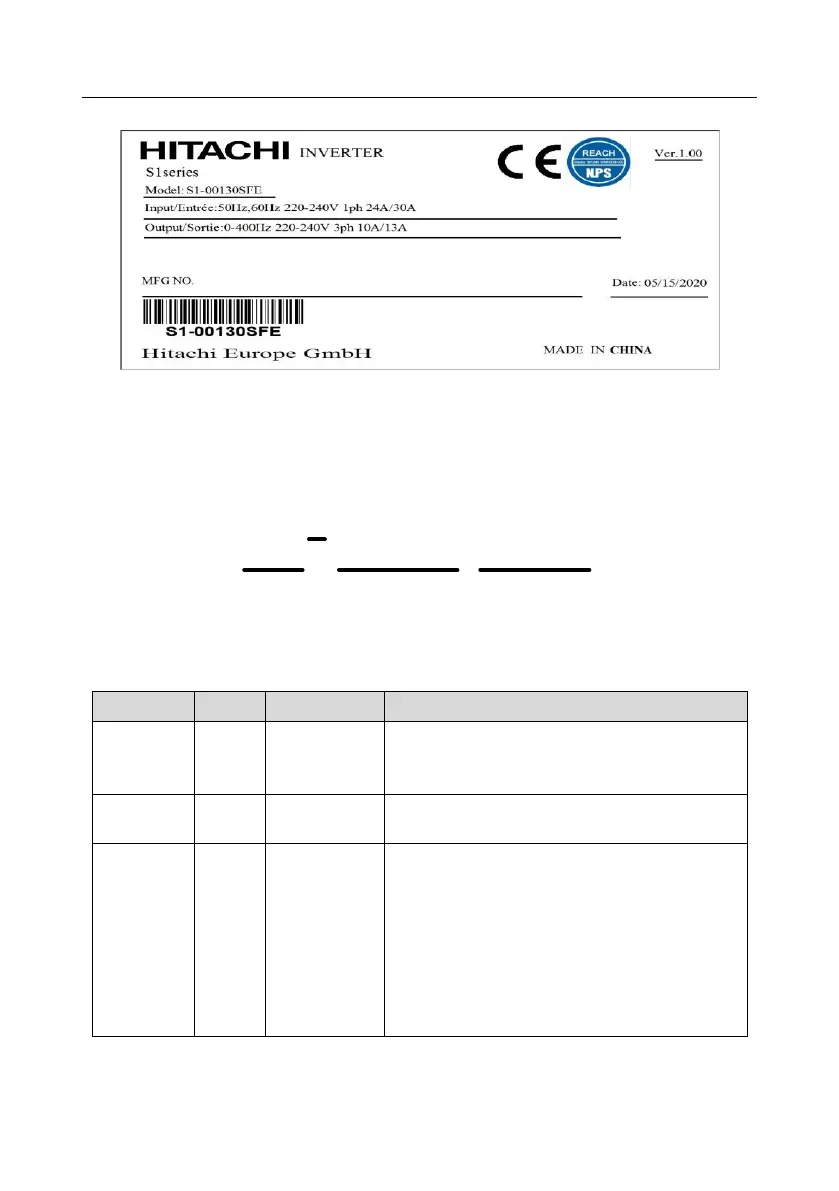

Fig 3.6 Product nameplate
3.5 Type designation key
The type designation key contains product information. Users can find the type designation key on
the nameplate of the inverter.
S1 00170 HFEF
①
②
③
Fig 3.7 Type designation key
Field
Sign
Description
Contents
Abbreviation
of product
series
①
Abbreviation of
product series
S1: standard inverter
Rated current
②
Rated output
current in LD
00170: 17.0A continuous output current
Version
③
Version
H/S:
H: AC 3PH 380V (-15%) – 440V (+ 10%) Rated
voltage: 400V
S: AC 1PH 220V (-15%) – 240V (+ 10%) Rated
voltage: 230V
F: built-in operator
E: European version
F: built-in EMC filter

Hitachi S1 Series Specifications

General

Output Frequency	0 - 400 Hz
Overload Capacity	150% for 60 seconds
Frequency	50/60 Hz
Control Method	Sensorless Vector Control
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication	RS485, Modbus RTU
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC (Matches Input Voltage)
Cooling Method	Fan Cooled
