Hitachi S1 Series User Manual

S1 series standard inverter
-205-

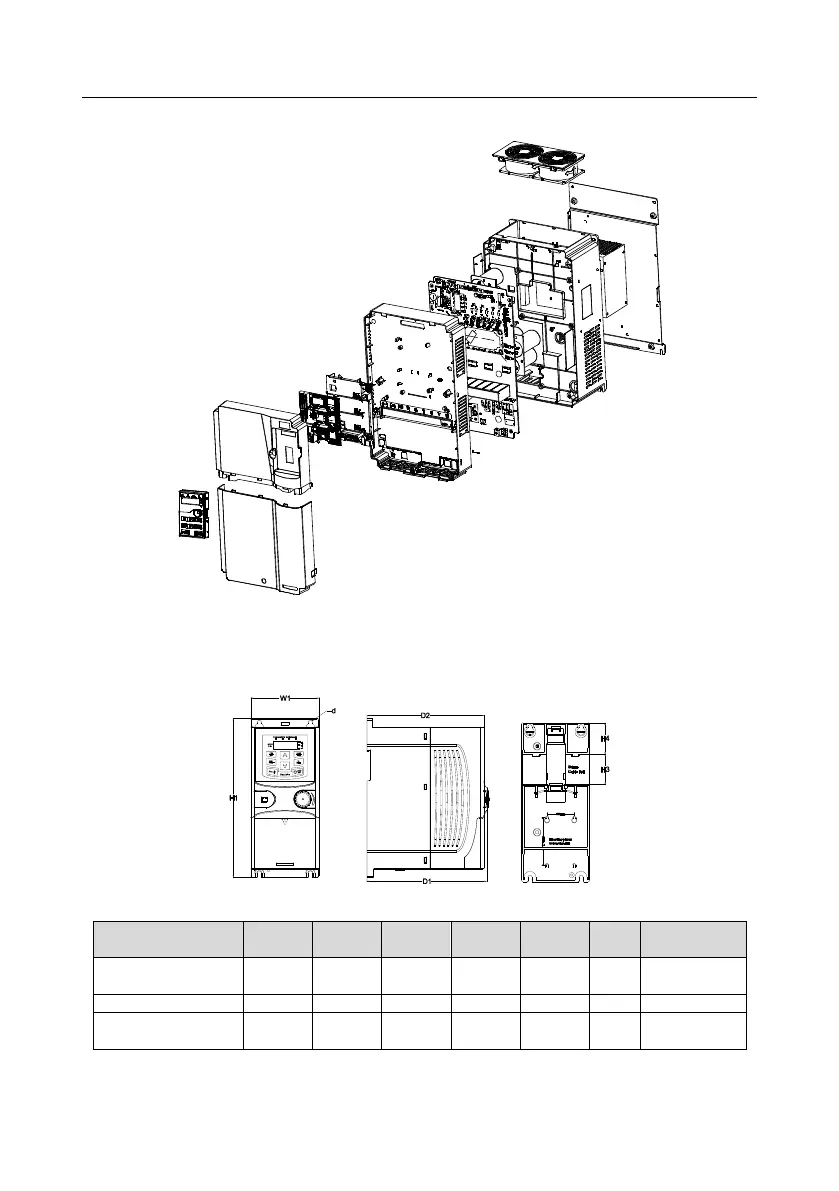

11.3 Inverter structure
Fig 11.3 Inverter structure diagram
11.4 Dimensions of Inverters
11.4.1 Rail-mounting dimensions
Fig 11.4 Rail-mounting diagram of inverters 230V/400 V, up to 2.2 kW
Model
W1
H1
H3
H4
D1
D2
Installation
hole diameter
0.4kW -0.75kW,
230V
80.0
160.0
35.4
36.6
123.5
120.3
5
1.5kW -2.2kW, 230V
80.0
185.0
35.4
36.6
140.5
137.3
5
0.75kW -2.2kW,
400V
80.0
185.0
35.4
36.6
140.5
137.3
5

Hitachi S1 Series Specifications

General

Output Frequency	0 - 400 Hz
Overload Capacity	150% for 60 seconds
Frequency	50/60 Hz
Control Method	Sensorless Vector Control
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication	RS485, Modbus RTU
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC (Matches Input Voltage)
Cooling Method	Fan Cooled
