Hitachi S1 Series User Manual

S1 series standard inverter
-58-

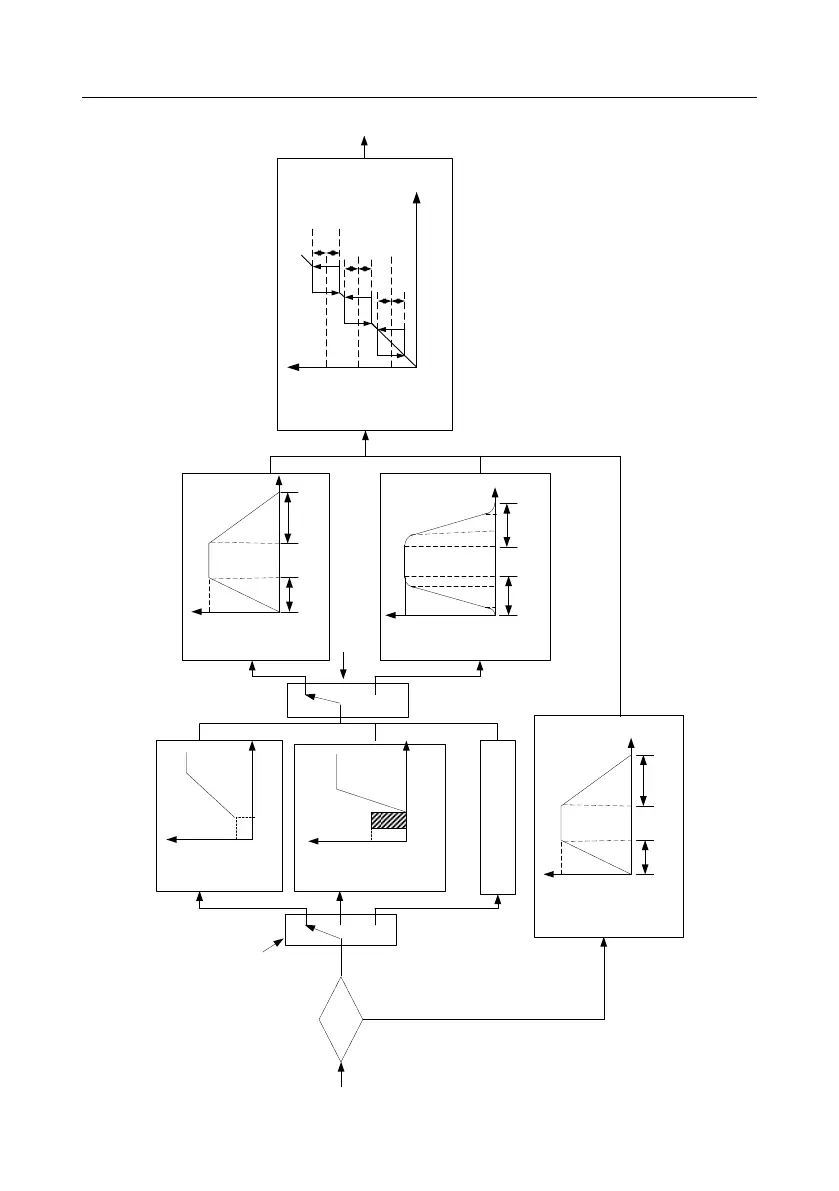

1. Logic diagram for running command after power-up
Jogging?
N
1f
1t
P00.11
Acceleration
time
P00.12
Deceleration time
Acceleration
process
Deceleration
process
P00.03
Acceleration
process
Deceleration
process
P00.03
1f
1t
P08.07
Acceleration
time
P08.08
Deceleration time
Acceleration
process
Deceleration
process
P08.06
1t
1f
1t
Jump
frequency 2
1/2* jump amplitude 2 1/2* jump amplitude 2
Jump
frequency 1
1/2* jump amplitude 1 1/2* jump amplitude 1
Jump
frequency 3
1/2* jump amplitude 3
1/2* jump amplitude 3
Y
Start after speed-tracking
P01.00
Running mode of start
Starting
frequency of
direct start
Hold time of starting frequency
Brake time before
start
Brake
current
before start
P01.05
Acceleration/deceleration mode
selection
P00.11
Acceleration
time
P00.12
Deceleration time
0
1
2
0
1
Straight-type
acceleration/deceleration
S curve-type
acceleration/deceleration
Direct start
Start after DC brake
Running
frequency of
jogging
1f

Hitachi S1 Series Specifications

General

Output Frequency	0 - 400 Hz
Overload Capacity	150% for 60 seconds
Frequency	50/60 Hz
Control Method	Sensorless Vector Control
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication	RS485, Modbus RTU
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC (Matches Input Voltage)
Cooling Method	Fan Cooled
