S10 Series SIO Driver
GP-Pro EX Device/PLC Connection Manual
14
3.7 Setting Example 7

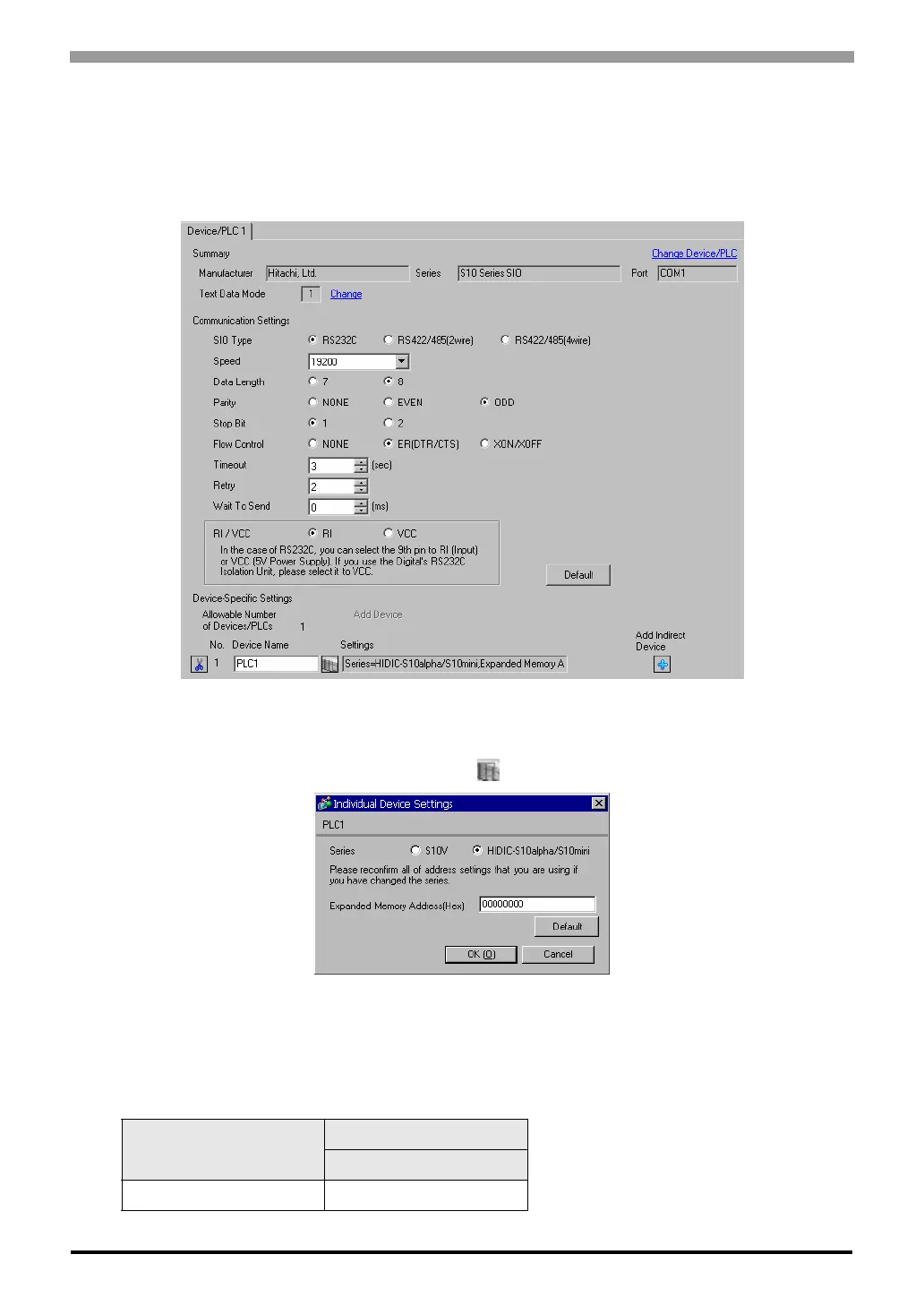

Settings of GP-Pro EX
Communication Settings
To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]
window, select the external device and click [Settings] .
Settings of External Device
Communication setting of External Device is fixed. No setting is required.
Rotary switch of External Device needs to be set depending on the channel in use.
Set as shown in the table below.
Channel in use
Rotary Switch
CN1MODU
CN1 8
