Hitachi S10 Series User Manual

S10 Series SIO Driver
GP-Pro EX Device/PLC Connection Manual
31
3A)
3B)

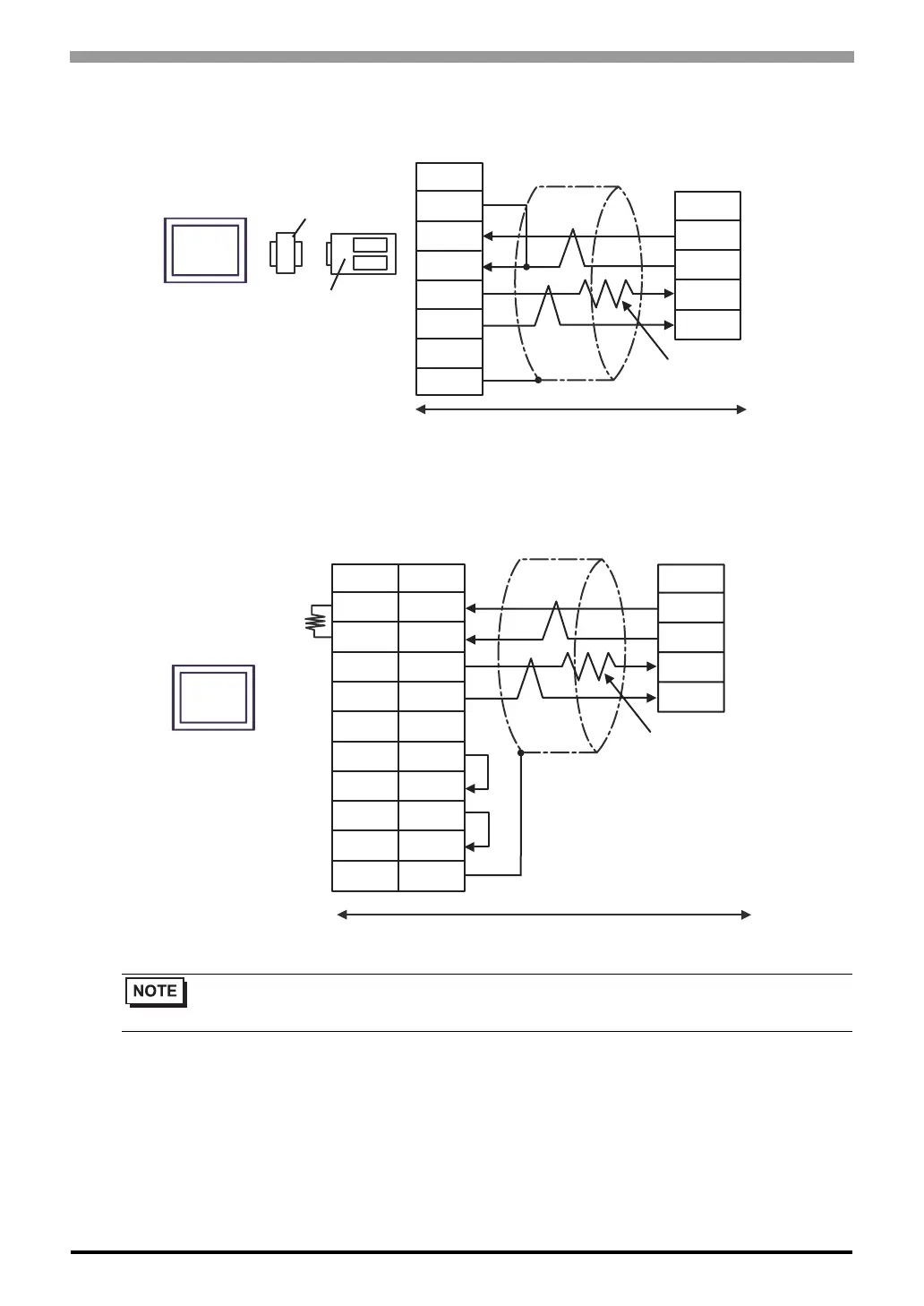

• When making your own connections, we recommend using KPEV-SB-3P 0.5mm
2
cable by
Hitachi Cable, Ltd..
UTX-H
UTX-L
URX-H
URX-L
External Device
Shield
Signal name
TRM
RDA
RDB
SDA
SDB
SG
FG
Signal name
Display
Terminal block
Your own cable
Series resistance
100Ω (1/2W)
CA3-ADPTRM-01
CA3-ADPCOM-01
Display
RDA
RDB
SDA
SDB
SG
ERA
CSA
ERB
CSB
FG
1
2
3
7
5
4
8
9
6
Shell
Signal name
Pin
Display
D-Sub 9pin (socket)
Termination
resistance
100Ω (1/2W)
Your own cable
UTX-H
UTX-L
URX-H
URX-L
External Device
Shield
Signal name
Series resistance
100Ω (1/2W)
Display
