Chapter 2
Installation and Wiring
2.1 Check the Inverter
Check the contents in the package, and confirm the
inverter model with a specification label.
The model of the product is as follows:
E.g.: 400V class input voltage for China
Applicable motor capacity for ND rating is 3.7kW
ND rated current 9.2A
LD rated current 11.1A
VLD rated current 12.6A
(1) Series name SH1
(2) Motor maximum rated current (at VLD rated current)
00001: 0.1A to 99999: 9999.9A
*SH1-03410-H(SH1-1600H)～SH1-06600-H(SH1-3150H) support only
ND(normal duty) and LD(low duty),rated current is at LD rated current.
(3) Input power specification
H: three-phase 400V class
(4) Panel
B: no operator keypad equipped;
F: panel equipped
(5) Region:
C: China/Southeast Asia
(6) Integrated noise filter
F: integrated noise filter equipped;
CB: conduit box equipped
When both F and CB are equipped, it is indicated as
FCB.
SH1-03410-H(SH1-1600H)～SH1-06600-H(SH1-3150H)do not
Build-in noise filter, (6)is be omitted.

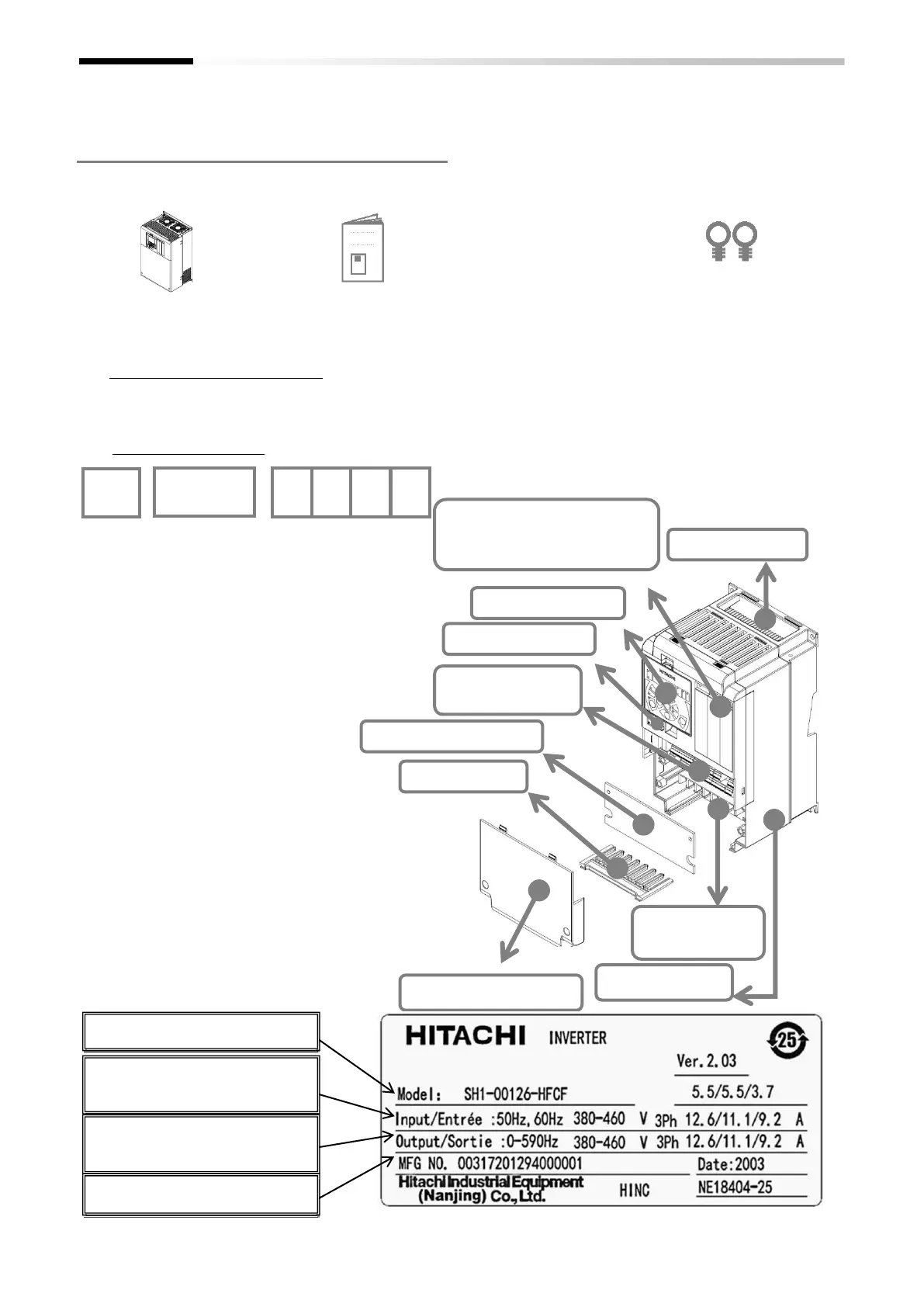

• Specification label example
Description example for SH1-00126-HFCF
(*) means eigenvalues
Configuration and description contents vary
depending on the model.
Contact your supplier or local Hitachi inverter sales
office for more details.
If the inverter is shipped incorporated with optional
products, optional instruction will be enclosed.
SH1-00126-HFCF example illustration in below.
