Chapter 2
Installation and Wiring

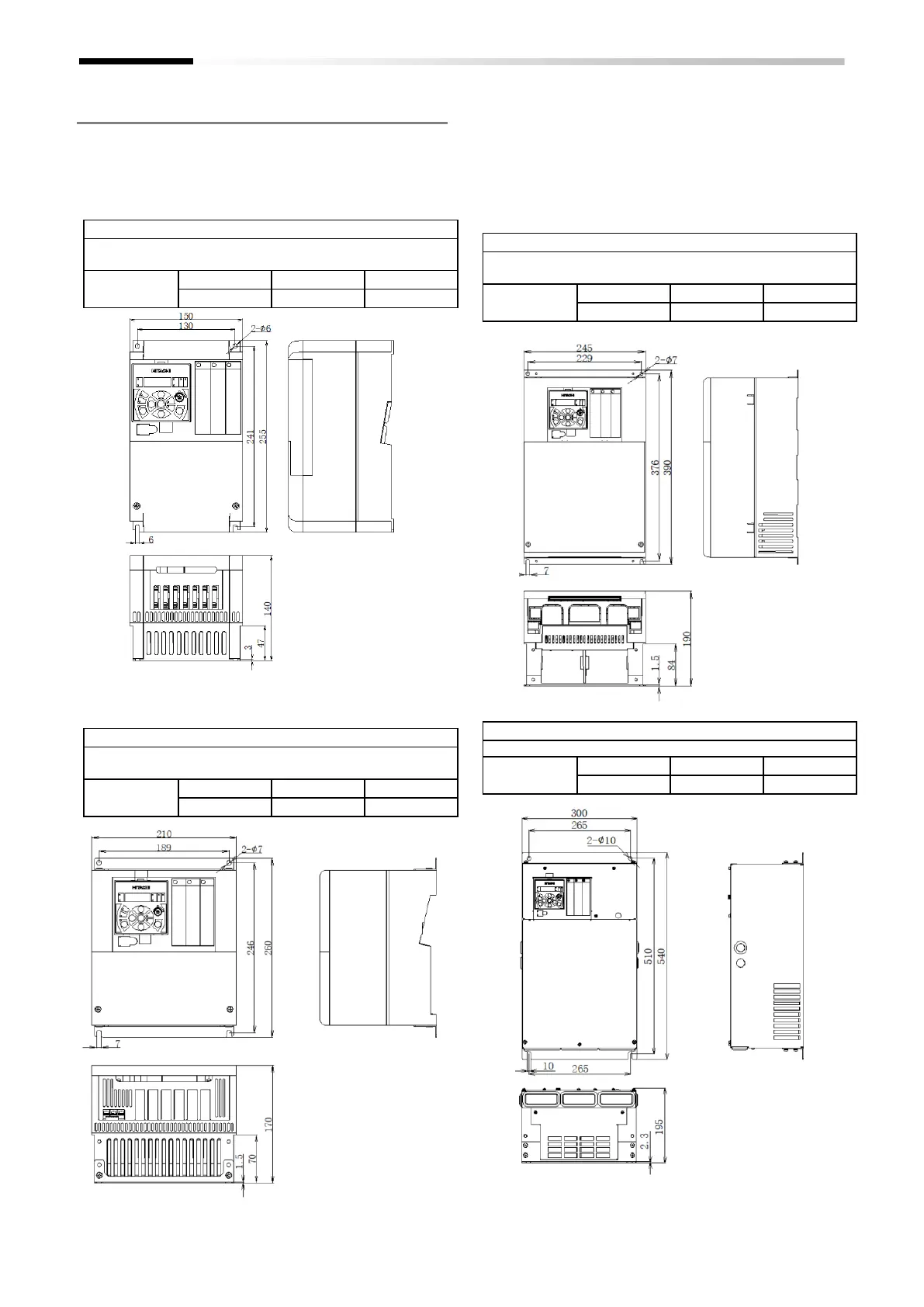

2.3 Dimensions
 If you add optional parts to the inverter, some extra
space is required in the direction of the depth of the
inverter depending on the wiring layout. Keep a
clearance of 50 mm or more. For details, refer to the
instruction manual for each optional product.
Model SH1-*****-*(SH1-***H)
400V class: 00041-H(007H), 00054-H(015H), 00083-H(022H),
00126-H(037H)
Dimension
W(mm)
H(mm)
D(mm)
150
255
140
Model SH1-*****-*(SH1-***H)
400V class: 00175-H(055H), 00250-H(075H),
00310-H(110H)
Dimension
W(mm)
H(mm)
D(mm)
210
260
170
(Eg.) See "Chapter 7 Specifications" for details.
VLD rated current for00041-H(007H) is 4.1A,
(ND rated motor capacity is 0.75kW), and H indicates
400V class.
Model SH1-*****-*(SH1-***H)
400V class: 00400-H(150H), 00470-H(185H),
00620-H(220H)
Dimension
W(mm)
H(mm)
D(mm)
245
390
190
Model SH1-*****-*(SH1-***H)
400V class: 00770-H(300H)
Dimension
W(mm)
H(mm)
D(mm)
300
540
195
