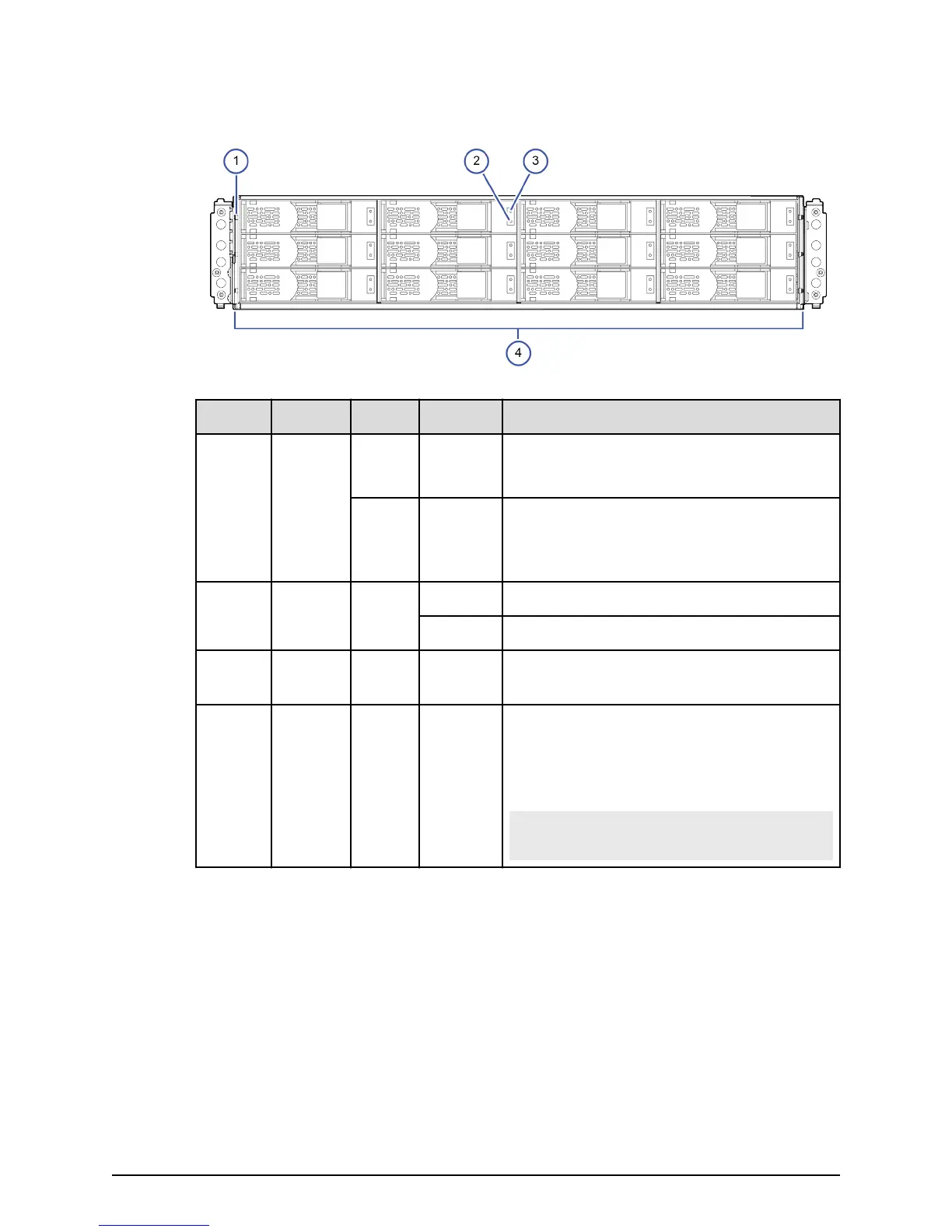

The following table lists the denitions of the DBL drive tray front LEDs without an
attached bezel.
Number Item Color Pattern Description
1 POWER,
READY,
and,
LOCATE
LEDs
Green ON Drive tray is powered on.
Drive tray is under normal operation.
Amber Blink Indicates the location of the chassis.
Can be turned on or turned o by the
maintenance utility.
2 ACT LED Green ON Drive tray is under normal operation.
Blink Drive is being accessed.
3 ALM LED Red ON Drive stopped due to a failure and can be
replaced.
4 LFF drive
slots
- - Twelve 3.5-inch large form factor drives are
positioned horizontally.
The slots are organized in the following
order:
8 9 10 11
4 5 6 7
0 1 2 3
The following table lists the denitions of the DBL drive tray rear panel components and
LEDs.
Large form-factor drive tray (DBL)
Chapter 2: Hardware components and specications
Hitachi Virtual Storage Platform G130 Hardware Reference Guide 41
