Hitachi VM-3100A User Manual

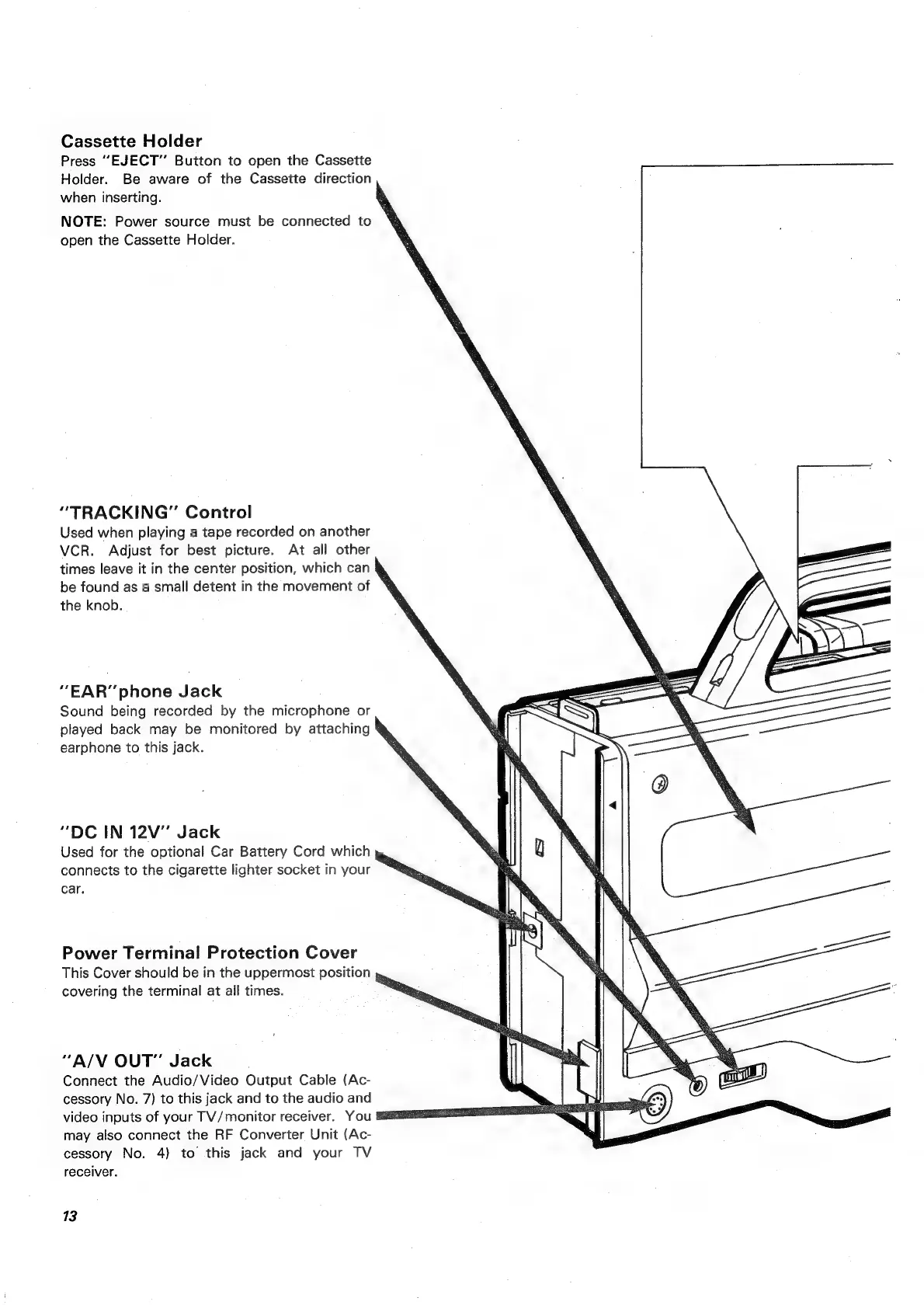

Cassette Holder
Press “EJECT” Button to open the Cassette
Holder. Be aware of the Cassette direction
when inserting.
NOTE: Power source must be connected to
open the Cassette Holder.
“TRACKING” Control
Used when playing a tape recorded on another
VCR. Adjust for best picture. At all other
times leave it in the center position, which can
be found as a small detent in the movement of
the knob.
“EAR” phone Jack
Sound being recorded by the microphone or
played back may be monitored by attaching ©
earphone to this jack.
“DC IN 12V" Jack
Used for the optional Car Battery Cord which p
connects to the cigarette lighter socket in your ~
car.
Power Terminal Protection Cover
This Cover should be in the uppermost position p.
covering the terminal at ail times.
“A/V OUT” Jack
Connect the Audio/Video Output Cable (Ac-
cessory No. 7) to this jack and to the audio and
video inputs of your TV/monitor receiver. You Sxae=E
may also connect the RF Converter Unit (Ac-
cessory No. 4) to this jack and your TV
receiver.
