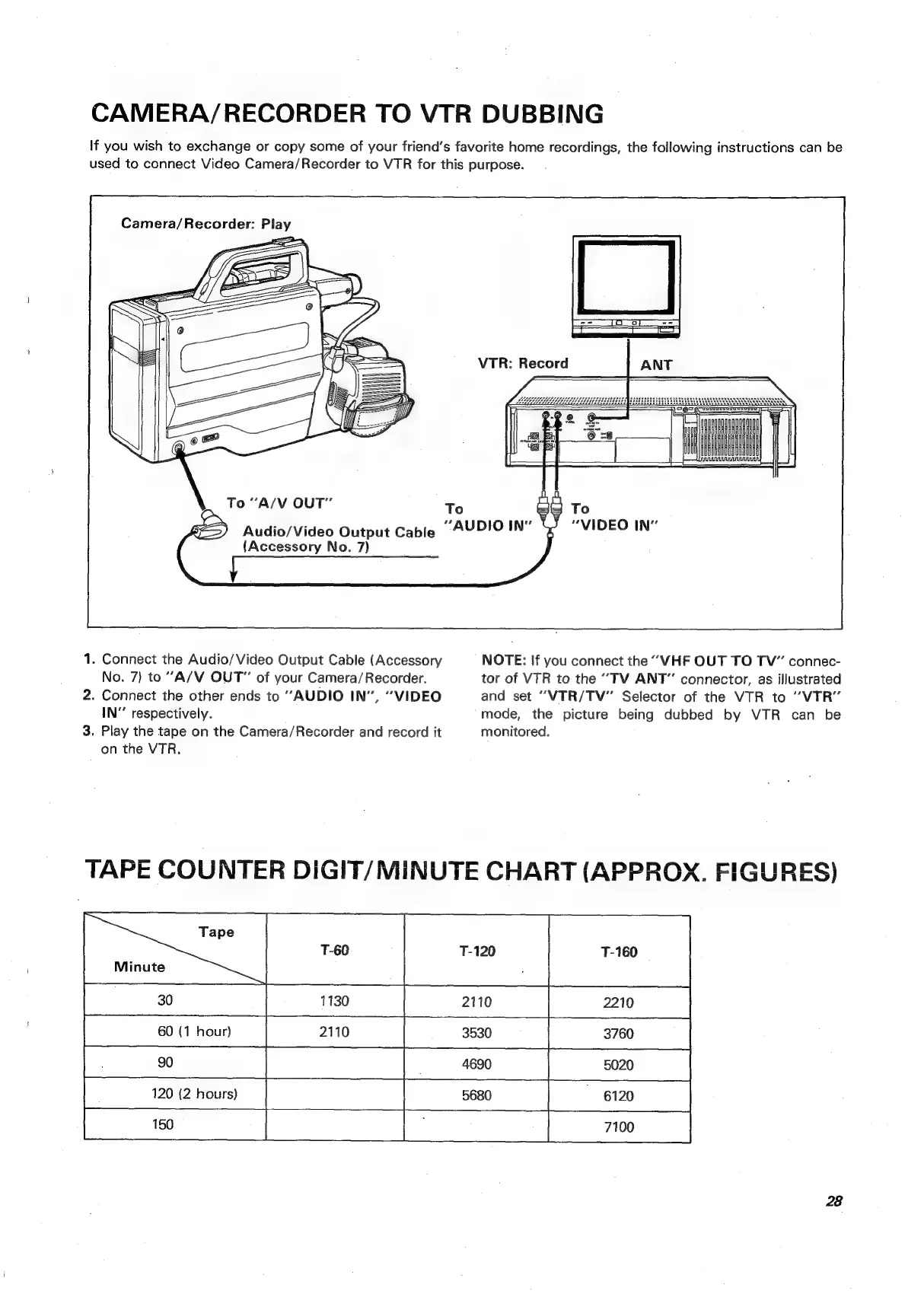

CAMERA/RECORDER TO VTR DUBBING
If you wish to exchange or copy some of your friend’s favorite home recordings, the following instructions can be
used to connect Video Camera/Recorder to VTR for this purpose.
Camera/Recorder: Play
To “A/V OUT” To To
Audio/Video Output Cable “AUDIO IN” 5 “VIDEO IN”
(Accessory No. 7)
1. Connect the Audio/Video Output Cable (Accessory NOTE: If you connect the “VHF OUT TO TV” connec-
No. 7} to “A/V OUT” of your Camera/Recorder. tor of VTR to the “TV ANT” connector, as illustrated
2. Connect the other ends to “AUDIO IN”, “VIDEO and set “VTR/TV” Selector of the VTR to “VTR”
IN” respectively. mode, the picture being dubbed by VTR can be
3. Play the tape on the Camera/Recorder and record it monitored.
on the VTR.
TAPE
COUNTER
DIGIT/MINUTE
CHART
(APPROX.
FIGURES)
0
60 (1 hour)
120 (2 hours)
150
28
