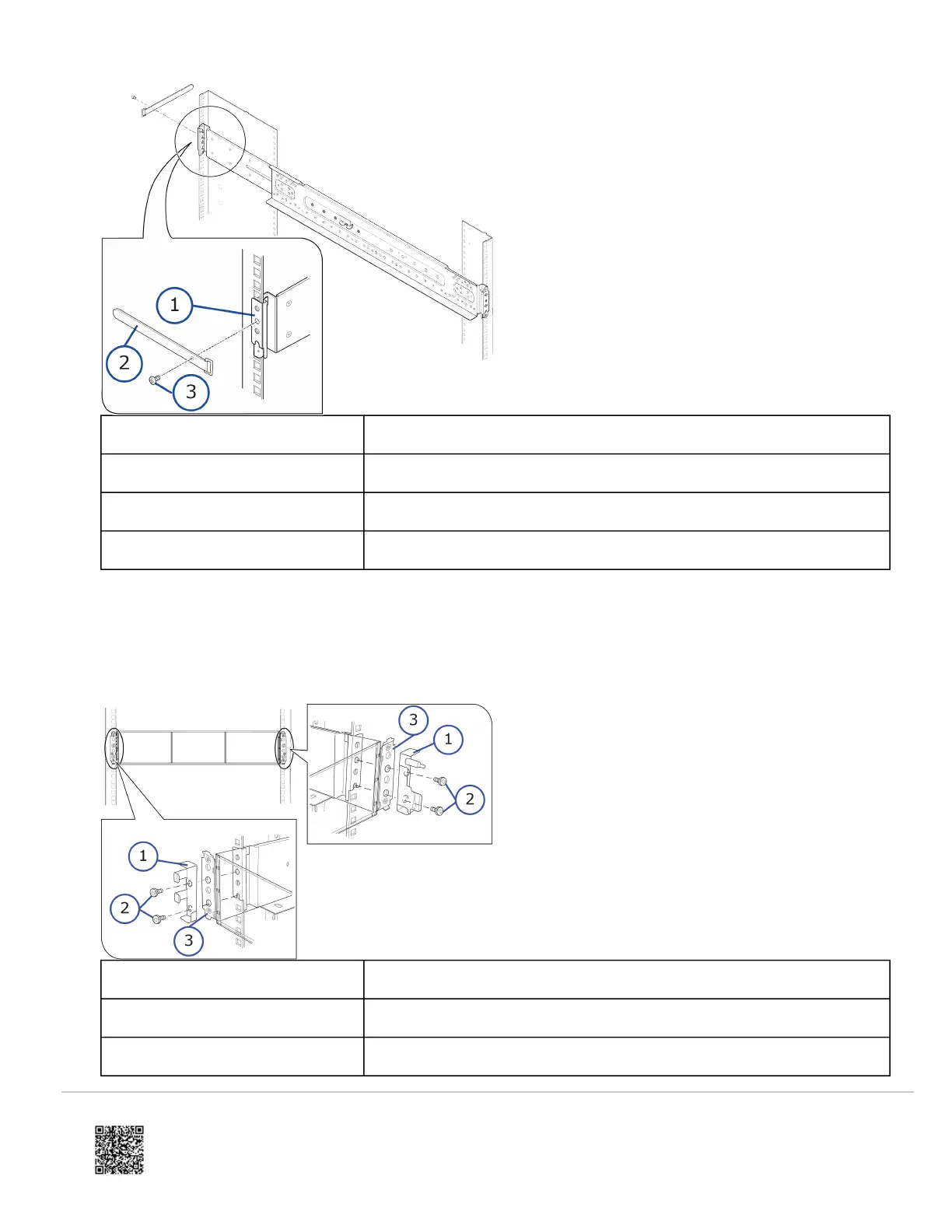

Number Item
1 Clip
2 Cable tie
3 Screw
5. Repeat Steps 1-4 on the left side of the rack.
6. Install the drive box to the rail using the drive box bracket.
7. Fasten the bracket and drive box to the rail using two screws on each side of the rack.
Number Item
1 Bracket
2 Screws
