SETTINGOFDIPSWITCHESANDRSWSWITCHES
ELECTRICAL AND CONTROL SETTINGS
6.3 Seng of DIP switches and RSW switches

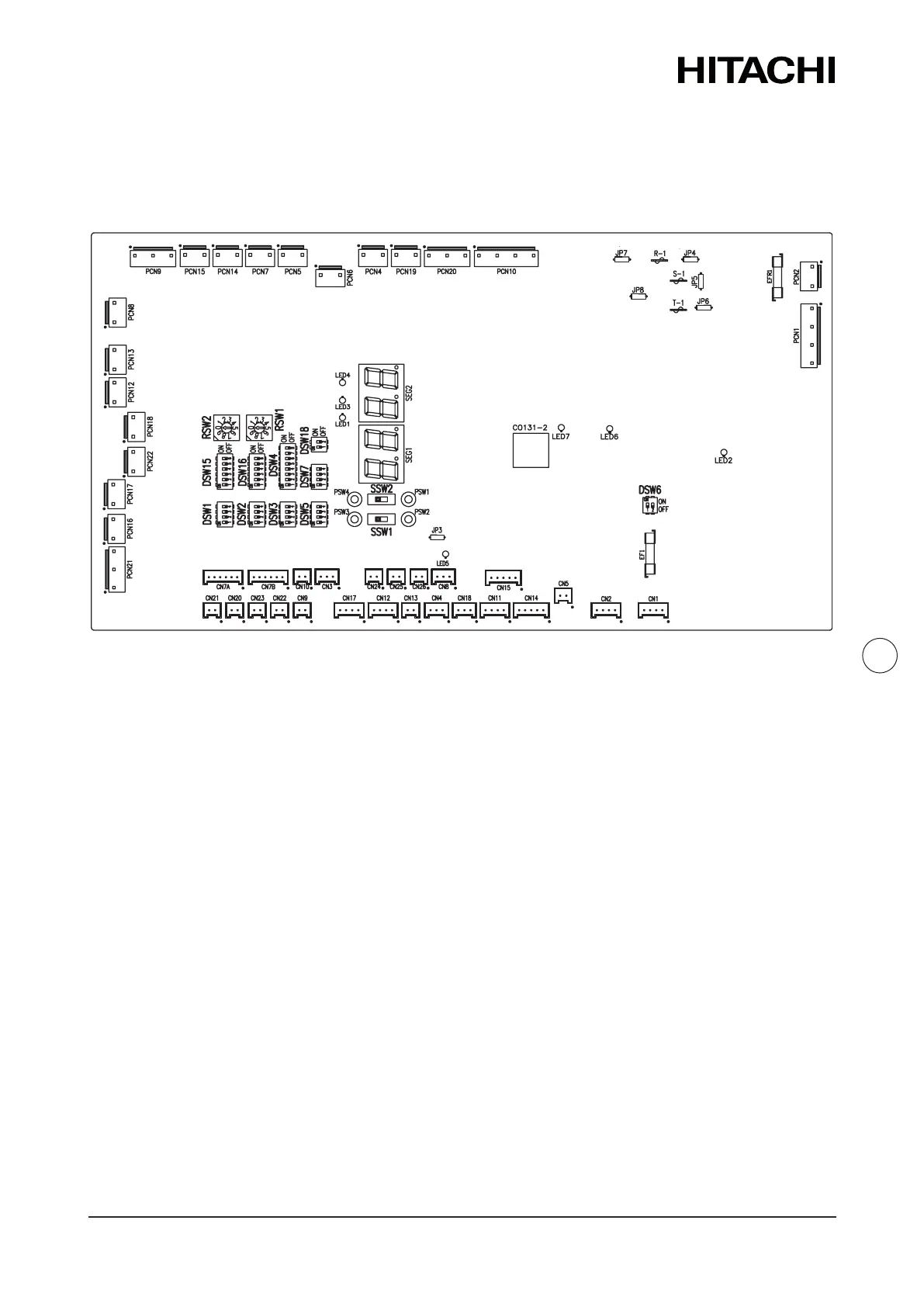

6.3.2.1 Locaon of DIP switches and rotary switches
6.3.2.2 Funcon of DIP switches and rotary switches
 NOTE
• The mark “” indicates the dip switches posions.
• No mark “” indicates pin posion is not aected.
• The gures show the sengs before shipment or aer selecon.
• “Not used” means that the pin must not be changed. A malfuncon might occur if changed.
! CAUTION
Before seng dip switches, rst turn the power supply OFF and then set the posion of dip
switches. If the switches are set without turning the power supply OFF, the contents of the seng
are invalid.

Hitachi YUTAKI S COMBI Series Specifications

General

Type	Air-to-Water Heat Pump
Energy Efficiency Class (Cooling)	A++
Refrigerant	R32
Operating Temperature Range (Heating)	-20°C to 35°C
Energy Efficiency Class (Heating)	A+++
Integrated DHW Tank	190 liters
Dimensions (Indoor Unit)	Varies by model
Dimensions (Outdoor Unit)	Varies by model
Weight (Indoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
Operating Temperature Range (Cooling)	+10°C to +46°C
