OPERATION
5-1
CONTROL LEVER
(ISO EXCAVATOR PATTERN)
WARNING: Be sure to check the location and
function of each control lever before operating.
The upperstructure and/or front attachment may
unexpectedly move when attempting to turn and
look behind the machine as a part of operator’s
body may come into contact with the control
lever(s). Take care not to come into contact with
the control levers when turning and looking
behind the machine.

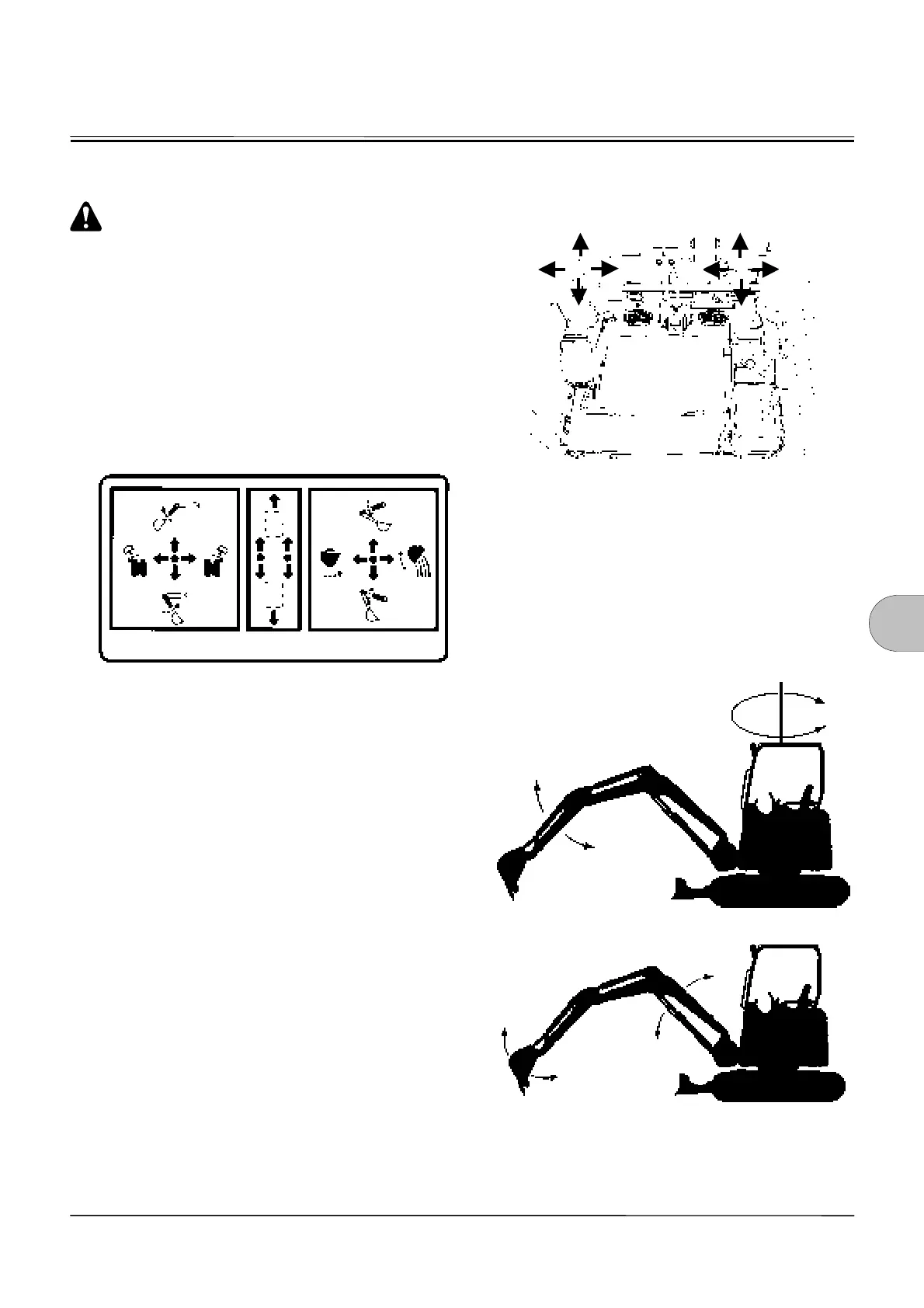

Labels showing the lever control pattern are provided on
the operator’s right. As illustrated below, the labels
indicate the ISO Excavator Pattern.
M588-05-050
When a control lever is released, it automatically returns
to neutral, stopping the function in that position.
1- Arm Roll-Out
2- Arm Roll-In
3- Swing Left
4- Swing Right
5- Boom Lower
6- Boom Raise
7- Bucket Roll-In
8- Bucket Roll-Out
M1MS-05-003
M1M7-05-001
M1M7-05-002
4
3
1
2
8
7
5
6
43
2
1
6
5
7
8
