OPERATION
5-4

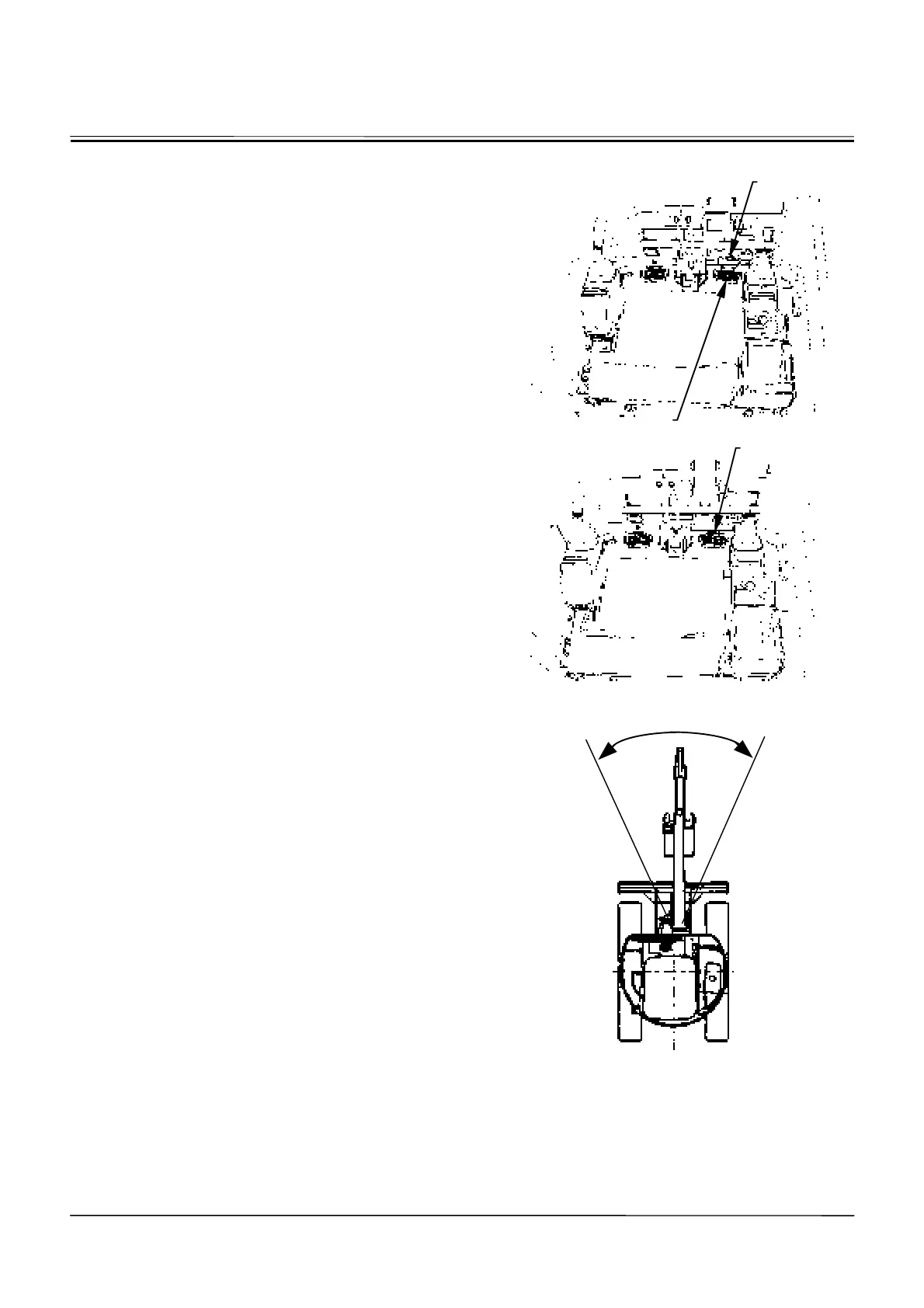

BOOM-SWING PEDAL
Use the boom swing function to efficiently operate the
machine when excavating grooves along roadsides or near
walls. The boom swing operation is performed using
boom-swing pedal (1) located at the operator’s right foot as
illustrated to the right.
Boom-Swing Operation
1. Turn cover (2) for boom-swing pedal (1) forward.
2. Step on the left side of boom-swing pedal (1) to swing
left. Step on the right side of the pedal to swing right.
3. Turn cover (2) backward over boom-swing pedal (1)
when boom-swing operation is no longer required.
3- Swing Left
4- Swing Right
M1MS-05-004
M1MS-05-003
M571-01-001
3
4
2
1
2
