HITEC Eclipse PRO CAR - A) Radio Features; C) System Specifications; 2. Transmitter Functions and Operations; A) Power Switch

2. Transmitter Functions and Operations
A) Power Switch
- Slide the switch right to turn the transmitter on,
and left to turn it off.
- Warning: Always turn your transmitter on first and off last to prevent accidental runaways.

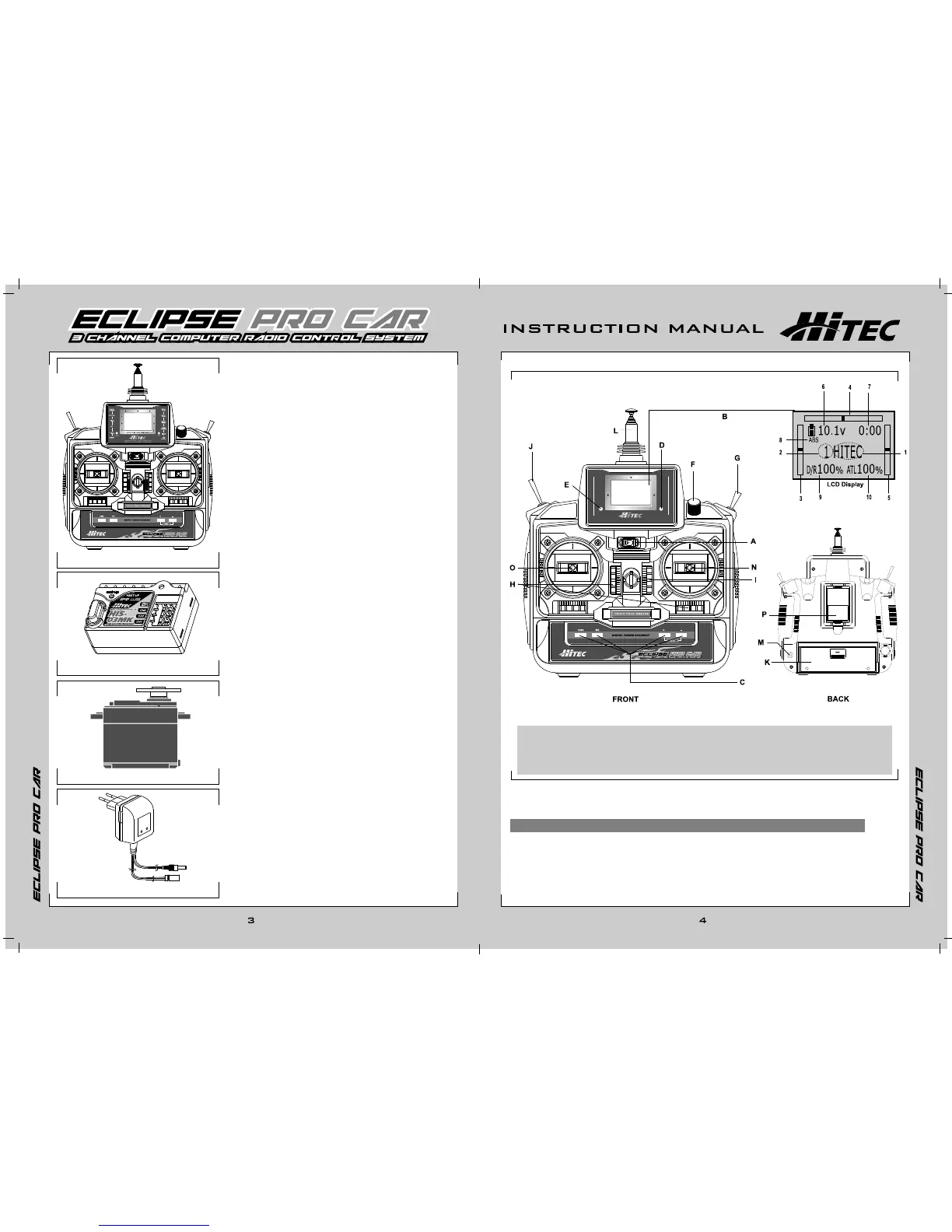

C) System Specifications
1. Transmitter
- Current drain : 160mA
- Modulation : FM
- Power supply : 8AA alkaline,
Nicad or NiMh batteries
- Frequencies : 40MHz (3 channels)
Transmitter
Receiver
Servo
Charger
B) LCD Display
1. Model Name 2. Model Number  3. Throttle trim
4. Steering trim 5. Aux 6. Battery voltage & meter
7. Timer 8. ABS on/off 9. Steering Dual Rate
10. ATL Braking
2. Receiver
- HIS-03MK
- IPD ( Intelligent Pulse Decoding)
- Modulation : FM single conversion
- Power supply : 4.8V- 6V
- Weight : 0.6oz
- Size : 38.8 X 26 X 16.5 mm (1.5X 1.0 X 0.6)"
- Current drain : 18mA +/- 1mA
- DSC (Direct Servo Control)
- Low Battery Warning
- Power LED
3. Servo
- HS-325HB
- Top Ball Bearing
- Karbonite Gears
- Long Life Potentiometer
- Operating Speed : 0.15 sec AT 6v
- Output Torque : 49 oz.in AT 6v
- Weight : 43g(1.5oz)
- Size : 40 X 20 X 37mm (1.6 X 0.8 X 1.4)"
A) Power Switch
B) LCD Display
C) Programming buttons
D) RF Indicator light
E) POWER Indicator light
F) Steering Dual Rate
G) ATL Switch
H) Steering and Throttle trims
I) Third channel Linear adjust
J) Third channel (Shift) switch
K) Battery Cover
L) Antenna
M) Charging jack
N) Steering stick
O) Throttle stick
P) Module
4. Charger
- CG-22A
- AC Overnight Charger
- Charger for Receiver &
Transmitter Nicad Battery
- Charging Capacity : 50mA
- Power Source : 220V RANGE
5. Options
- Dry battery holder. Part# 54409
ON
ON
S-01
Computerized Stick Type Surface System
Digital proportional Radio Control System
GRAPHIC LCD DISPLAY
L
F
B
+
-
R
POWER
R/F
MODEL
NAME
MODEL
COPY
MODEL
RESET
SERVO
REVERSE
TIMER
3CH
SELECT
MODEL
SELECT
SUBTRIM
E.P.A.
EXP
A.B.S.
MIXING
MODEL
SELECT
SUBTRIM
E.P.A.
EXP
A.B.S.
MIXING
MODEL
NAME
MODEL
COPY
MODEL
RESET
SERVO
REVERSE
TIMER
3CH
SELECT
PUSH
6. Available Versions
Standard : Part# 12940 (40 MHz)
Description : Eclipse Pro Car transmitter,
His-03MK RX,
HS-325HB Servo,
TX NiCad's w/Charger.
