Hitron CDA-RES User’s Guide

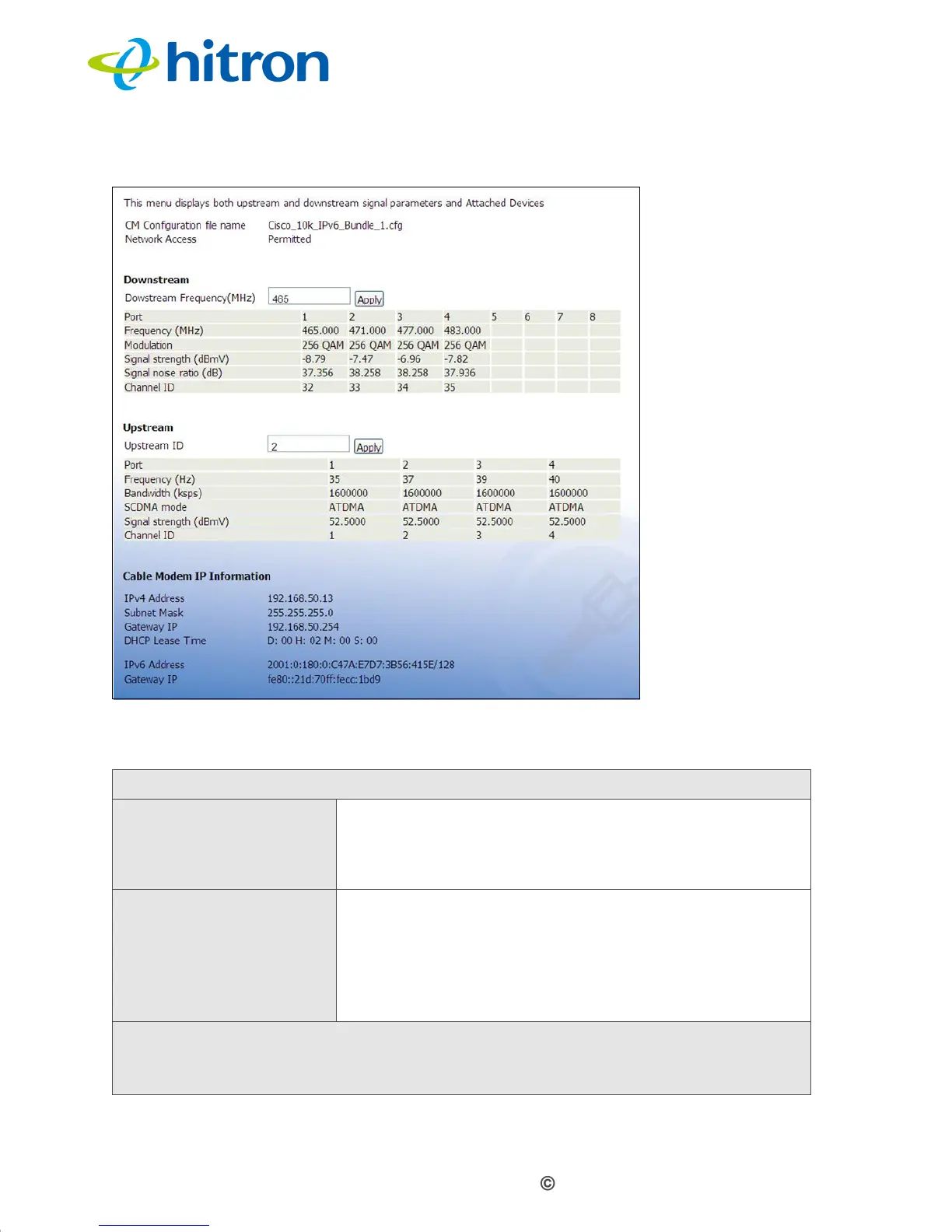

Figure 9: The Cable: Status Screen
The following table describes the labels in this screen.
Table 9: The Cable: Status Screen
DOCSIS Overview
CM Configurator file
name
This displays the name of the configuration file that the
CDA-RES downloaded from your service provider. This
file provides the CDA-RES with the service parameter
data that it needs to perform its functions correctly.
Network Access This displays whether or not your service provider
allows you to access the Internet over the CABLE
connection.
Permitted displays if you can access the Internet.
Denied displays if you cannot access the Internet.
Downstream Overview
NOTE: The downstream signal is the signal transmitted to the CDA-RES.
