7
Power
Cable
Reset
LAN1 LAN2
Chapter 1 Hardware Overview
Rear Panel (Hardware Connections)
The rear panel has the connections shown in the following figure:

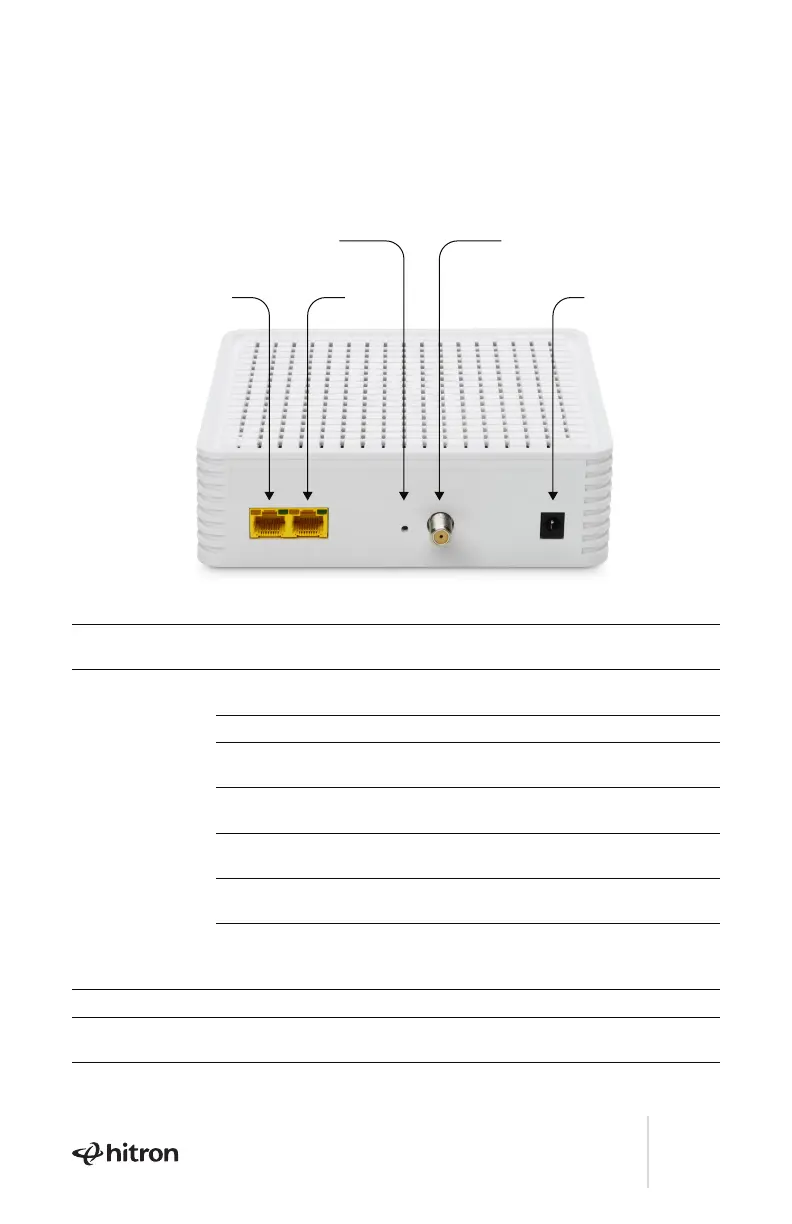

Figure 3: CODA Cable Modem Rear Panel
LAN1
LAN2
Use these ports to connect your computers and other network devices,
using Category 5 or 6 Ethernet cables with RJ45 connectors.
RESET Use this button to reboot or restore your CODA cable modem configuration
settings.
To reboot (or restart) the cable modem:
1. Insert the end of a paper clip or other small object with a narrow tip into
the Reset opening on the back of your CODA modem.
2. Press and hold the Reset button for three or four seconds only to reset the
CODA. The CODA resets, using your existing settings.
To restore the cable modem configuration back to factory
default settings:
1. Insert the end of a paper clip or other small object with a narrow tip into
the Reset opening of the back of your CODA modem.
2. Press and hold the Reset button for 10 seconds or more to restore* the
CODA back to its factory default settings. *NOTE: If you restore the CODA,
any modified settings cannot be recovered.
CABLE Use this to connect to the Internet via an F-type RF cable.
POWER Use the POWER port to connect the included 12 VDC power adapter with
your CODA.
