4 Setups and Accessories
You can deploy LUCAS NANO 305 FX in various confi gurations. The optional
HK Audio accessories listed in section 4.7 let you do this with the greatest
fl exibility and convenience.
4.1 Mono System
With the S-CONNECT POLE LN
(see the picture below)
No speaker cables
Setup
LR
Balance
Screw the S-CONNECT POLE LN into the M33 pole mount on the
subwoofer’s top panel. Then attach the satellite array to the S-CONNECT
POLE LN adapter sleeve via the Easy-Click connector. The signal bus is built
in, so you don’t need to connect any speaker cables for this setup. Be sure
to set the Setup selector to ‘Satellite Array’ and the Balance knob to the
center or 12 o’clock position.
• Required accessories: S-CONNECT POLE LN
4.2 Mono System
In combination with an o -the-shelf 35-mm/M20 speaker pole and
the POLE MOUNT ADAPTER
(see the picture below)
Use Speaker Out L
Setup
LR
Balance
Screw the included adapter sleeve (M33 to M20) into the pole mount on top
of the subwoofer. Then screw the speaker extension pole into the sleeve
and attach the POLE MOUNT ADAPTER to the top end of the speaker
extension pole. Attach the satellites to the POLE MOUNT ADAPTER's Easy
Click connector by clicking them into place.
Please note that the POLE MOUNT ADAPTER is unable to route signals.
Use a speaker cord equipped with 1/4" (6.3 mm) jack plugs to connect the
subwoofer's 'Speaker Out to Satellite L' output to the paired satellites..
Be sure to set the Setup switch to Satellite Array mode and the Balance
knob to the center or 12 o'clock position.
• Required accessory: POLE MOUNT ADAPTER
You can confi gure this setup with any standard 35-mm/M20 speaker exten-
sion pole. You will also need one speaker cord equipped with 1/4" (6.3 mm)
jack plugs (at least 2 x 1.5 mm² in diameter and 2 m in length).
4.3 Stereo System
With the STEREO STAND ADD-ON (LUCAS NANO 300 Series) or in
combination with standard microphone stands with a 3/8" thread
(see the picture below)
Use L/R Speaker Outs
Setup
LR
Balance
RL
Place the two LUCAS NANO 305 FX satellites on the STEREO STAND ADD-
ON speaker stands’ 3/8" threads and screw them down. Now connect the
satellites to the subwoofer’s two Speaker Outs using speaker cables. Be
sure to set the Setup selector to ‘Stereo Satellite’ and the Balance knob to
the center or 12 o’clock position.
• Required accessories: STEREO STAND ADD-ON 300 Series (2 height-
adjustable speaker stands, 2 speaker cords, 1 bag)
This setup option works with any standard microphone stand, provided it
is fi tted with a 3/8" thread.

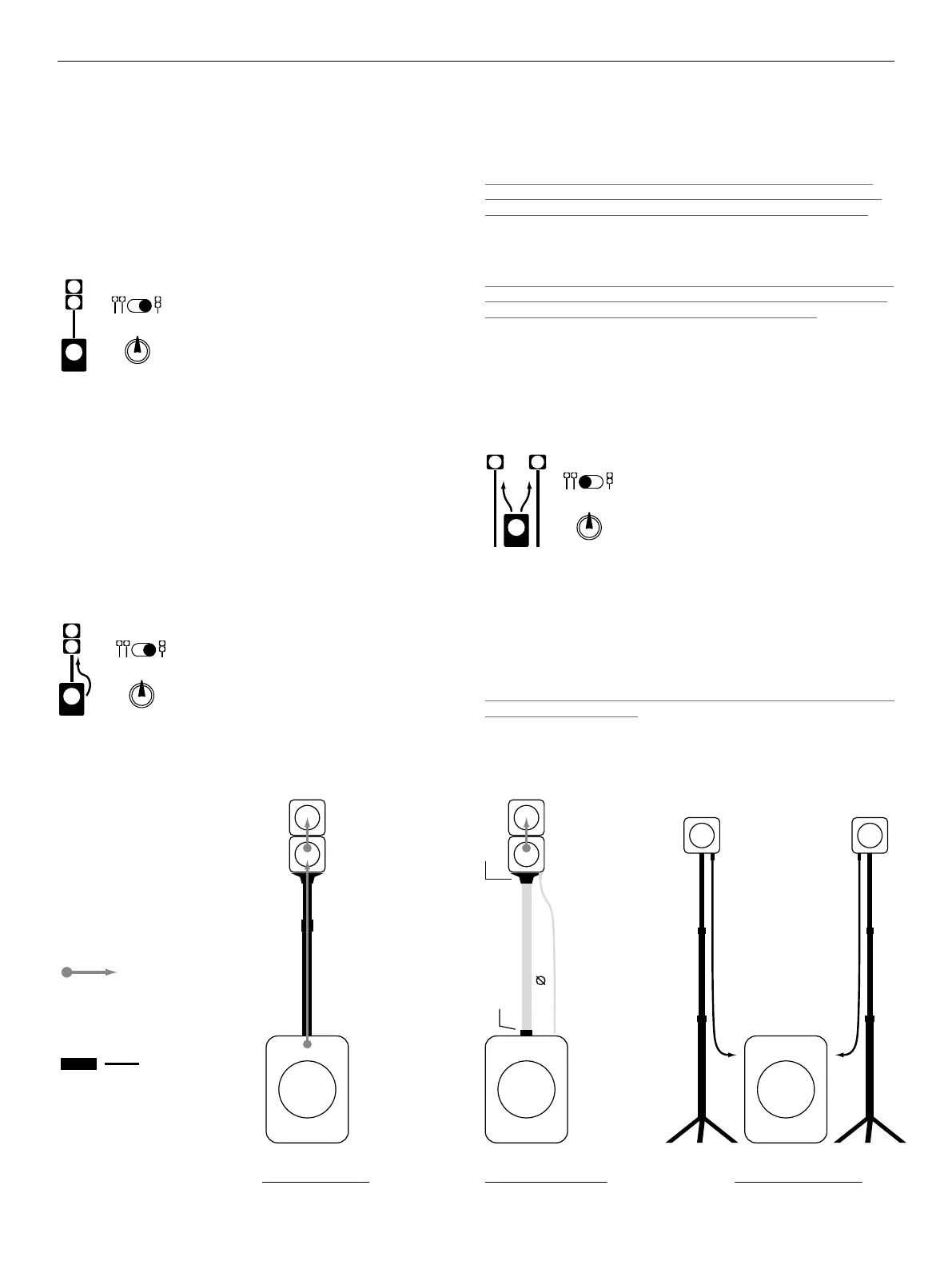

4.1 Mono System
with S-CONNECT POLE LN
No cables needed
S-Connect Pole LN
4.2 Mono System
with one POLE MOUNT ADAPTER
and standard distance rod
Stereo Stand Add-on
4.3 Stereo System
with STEREO STAND ADD-ON
(also works with microphone stands)
Pole Mount
Adapter
M20
Adapter
3/8"
= 35 mm
Two speaker
cables needed
One
speaker
cable
needed
Signal via
Easy-Click
Bold black:
Part of the listed
accessories
