HQ Series Quarter-turn Electric Actuator
Installation Operation& Maintenance Manual
Doc No. : HumG-HQ-21 Rev2 Page 25 / 26 Valve Automation Leader, HKC
HQ-015 ~ 030 Standard DC
HQ-015 ~ 030 Standard DC PCU --- 17 Rev1]
DANGER:
HAZARDOUS VOLTAGE. No electrical power should be connected until all wiring and limit switch
adjustments have been completed.
NOTE:

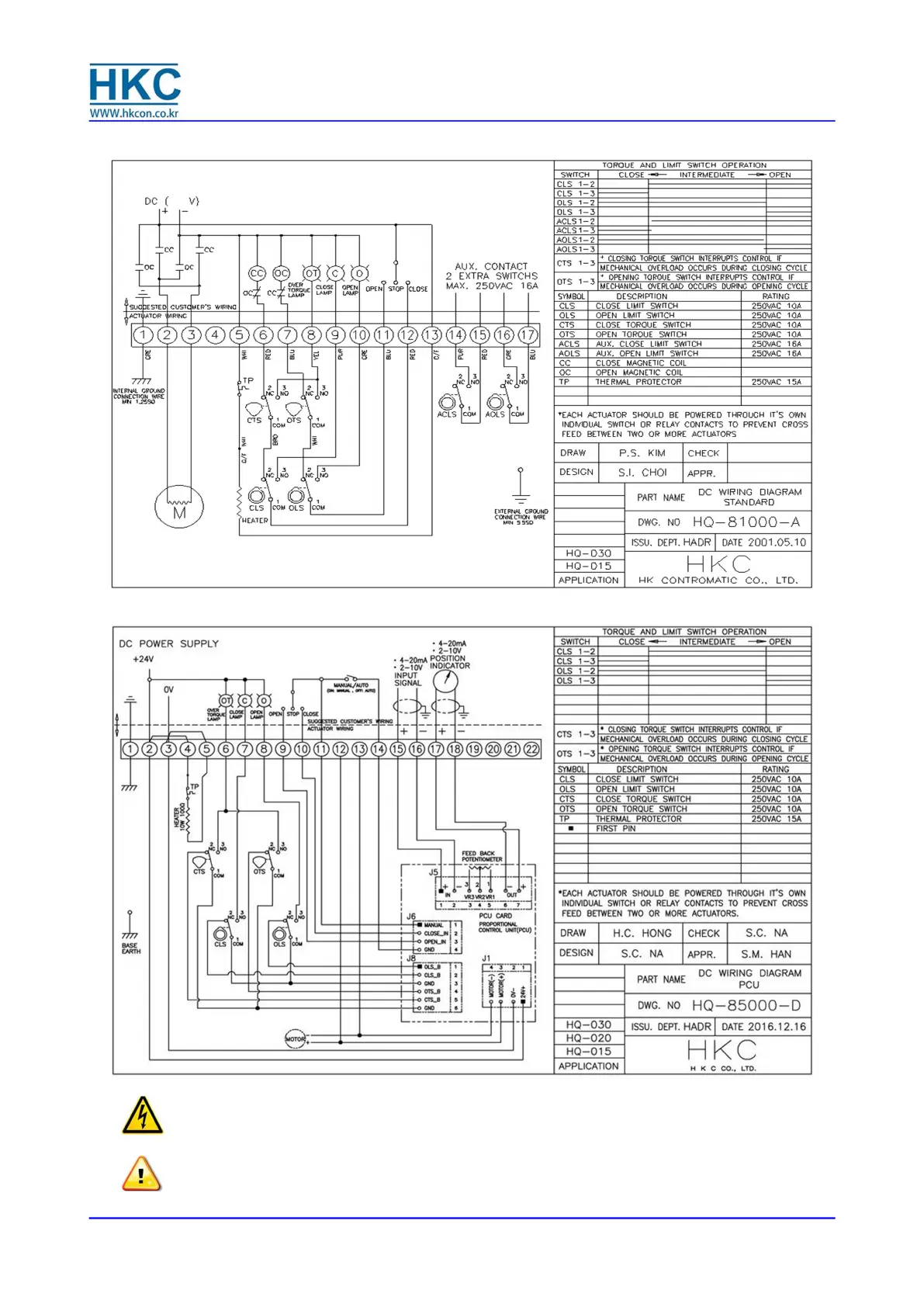

Each actuator is packed with individual box, and you can get the wiring diagram inside.
