HKC HQ-005 User Manual

HQ Series Quarter-turn Electric Actuator
Installation Operation& Maintenance Manual
Doc No. : HumG-HQ-21 Rev2 Page 8 / 26 Valve Automation Leader, HKC
4.1.2. Use in potentially explosive atmosphere
Model
HQ
-
. . .
3
.
0
. . .
0
1)
Type of
protection
[
IECEx
:
Ex d
b
IIB T4, Ex
tb IIIC T135
℃
Db
,
ATEX: II 2G Ex db IIB T4 Gb, II 2 D Ex tb IIIC T135℃ Db---17 Rev0]
Ambient Temperature
-
20 ℃ ~ +60 ℃
If remained openings on the enclosure after installation for use in potentially explosive atmosphere,
the hole shall be blanked with a [certified blanking element suitable for protection of Ex db IIC or Ex
tb IIIC respectively. ----- 16 Rev1]
DANGER: Installation, commissioning, maintenance, repairs and modification work must
only be performed by qualified personnel with extensive knowledge on how to work on
explosion-proof electrical equipment.
WARNING:
Read this installation, operation and maintenance manual carefully and completely before
attempting to install, operate, or troubleshoot the HKC actuator.
NOTE:
1)
Further information can be found from the HQ-series electric actuator catalogue
Refer to the CI.3 in this manual
4.2. Actuator Mounting
Note:
Prior to mounting, the part-turn actuator must be checked for any damage
Damaged parts must be replaced by original spare parts
4.2.1. Mounting is most easily done with the valve shaft pointing vertically upward. But mounting is also
possible in any other position; the actuator may be mounted in any position.
4.2.2. The HQ-series electric actuators are supplied with a female drive output. The ISO5211 bolt patterns
are provided for actuator mounting. The actuator drive bush is removable for ease of machining. It
is mandatory for the actuator to be firmly secured to a sturdy mounting bracket or directly
mounted to the valves’ ISO mounting pad. High tensile bolts or studs with spring locking washers
must be used.
4.2.3. The valve output shaft must be in lined with the actuator output drive to avoid side-loading the
shaft. To avoid backlash, flexibility in the mounting bracket or mounting should not be allowed.
CAUTION:
Do not attempt to work on your HKC actuator without first shutting off the incoming power.
Do not attach ropes or hooks to the hand wheel for the purpose of lifting by hoist

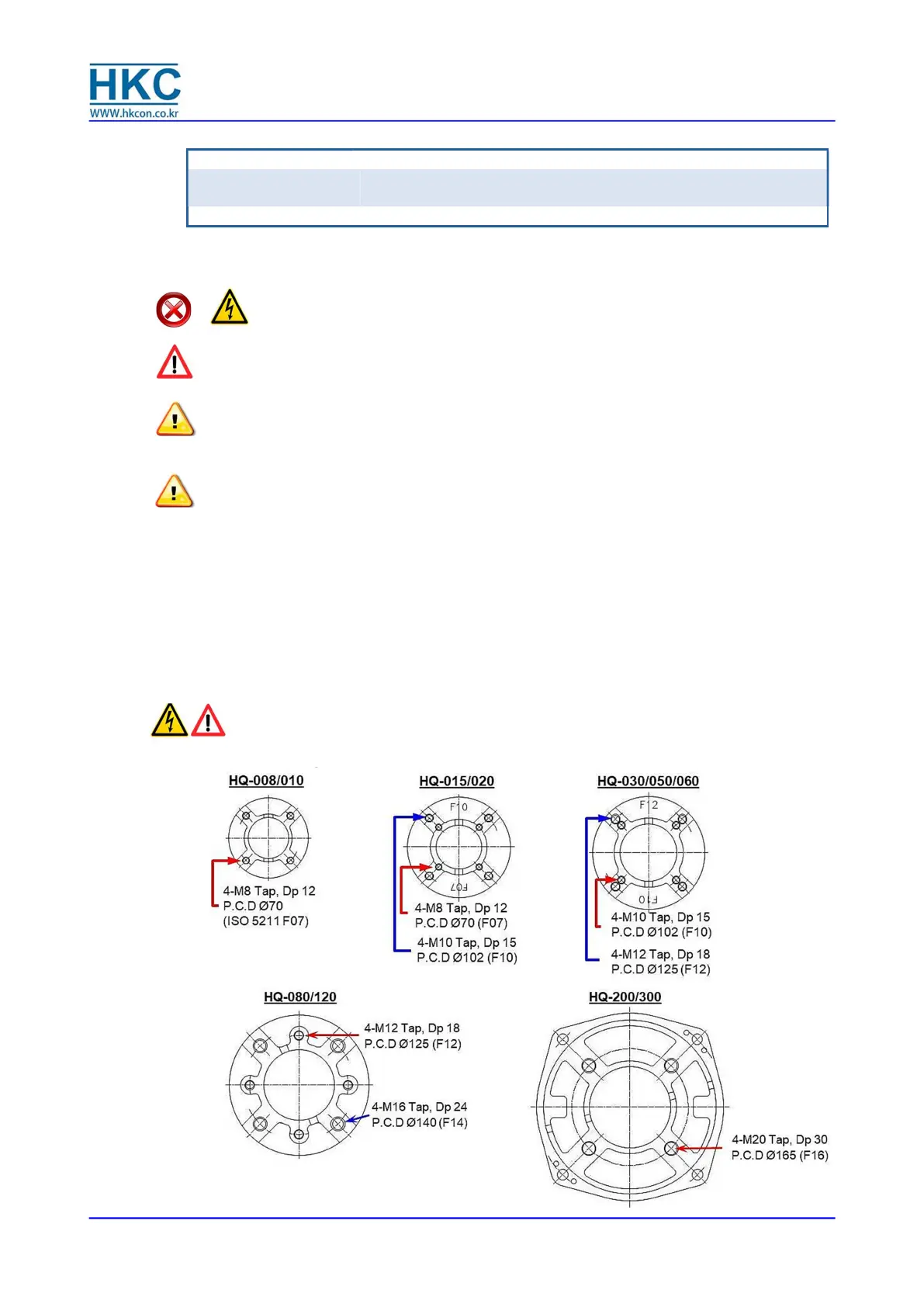

4.2.4. Actuator Mounting Base Details (ISO 5211)
