HKS EVC - Operational Modes and Status Indicators

Note
・TheLCDofthedisplayunitmayhaveablackline.Thisiscausedbystaticelectricity,
anditdoesnotaffectthefunctionsorperformanceoftheunit.Toremovetheline,
wipethedisplaywithanantistaticclothoraclothwiththeantistaticsolution.
−11−

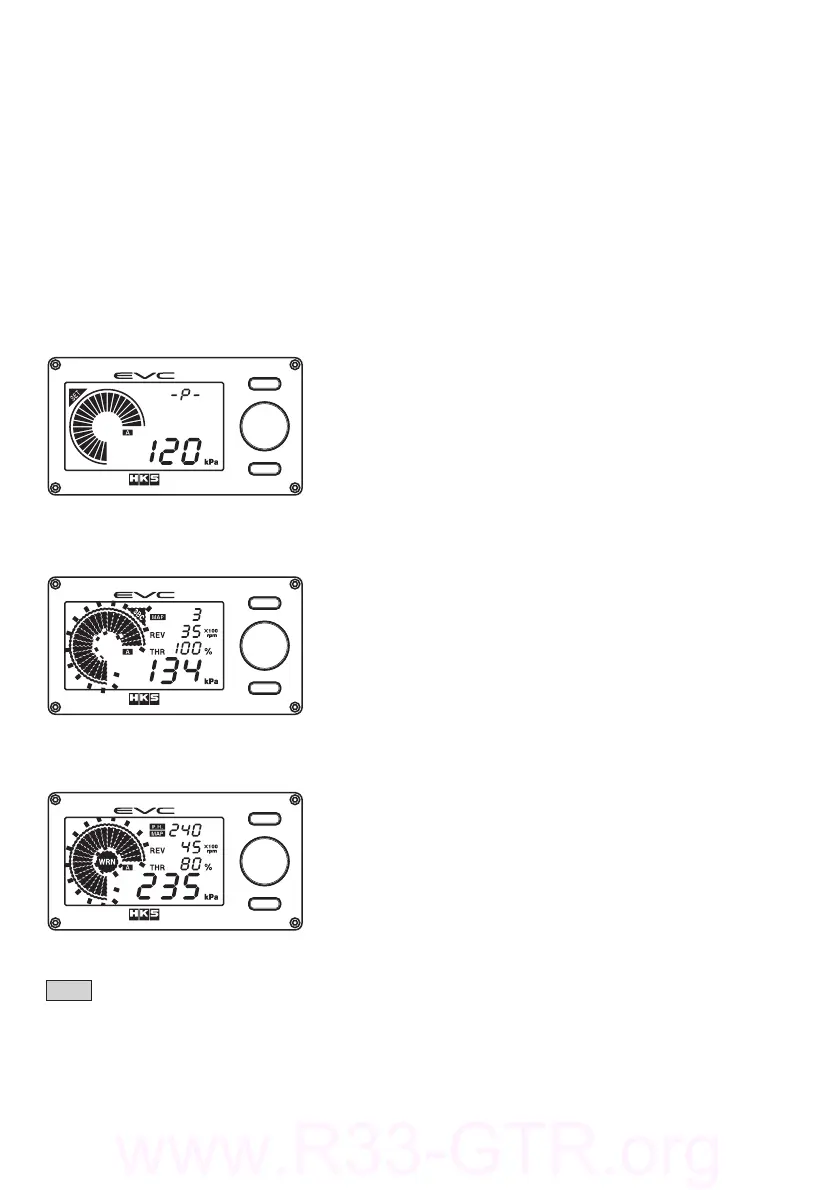

２．３．ScrambleBoostActivated
２．４．WarningFunctionTriggered
Aftertheunitbeeps,thebargraph
andtheSBCindicatorwillblink.
Aftertheunitbeeps,thebargraphand
theWRNindicatorwillblink.
７．BarGraphDisplay
Inthisdisplay,abargraphofthefollowingcanbeshown:manifoldpressure,speed,
RPM,throttlepercentageopening,setvalue,oraxisnumber.IntheStandardMode,you
canselectbetweenthemanifoldpressure,speed,RPM,andthrottlepercentageopening
forreal‑timedisplay.
８．SelectionDisplay
TheindicatorsofAandBshowtheselectedpresetboostsettingintheStandardMode.
IntheOffsetA/BSetMode,MapBoostA/BSetModeandMapOffsetA/BSetMode,the
currentpresetvalueisshown.TheindicatorofSPD,REV,andTHRshowtheinputsignal
currentlyusedforthecorrectionmapintheStandardMode,MapBoostA/BSetModeand
MapOffsetA/BSetMode.IntheSpeedAxisGridPointSetMode,RPMAxisGridPoint
ModeandThrottleAxisGridPointSetMode,eachcorrespondingsignalisshown.
２．２．Start‑Up
Aftertheunitbeepsonce,the
wastegatetypeappearsonthedigital
display(S),andthepresetboostvalue
appearsonthedigitaldisplay(L).
Beep
Beeeeeeep....
BeepBeepBeep....
