HMS Anybus AS-Interface Master - Web Interface

How to configure an Anybus AS-Interface Master module
SCM-7032-036
Rev 1.02
6.3 Web interface
The configuration can also be verified using the web interface in the X-gateway.
Note: To use the web interface it is required that the X-gateway has an Ethernet connection. Use the Anybus
IPconfig to find or set the IP-address. The tool can be downloaded at www.anybus.com.
To enter the web interface, enter the IP-address of the Ethernet module in a web browser, e.g.
http://192.168.0.7
. Open the Device Diagnostics window to view the slave settings.

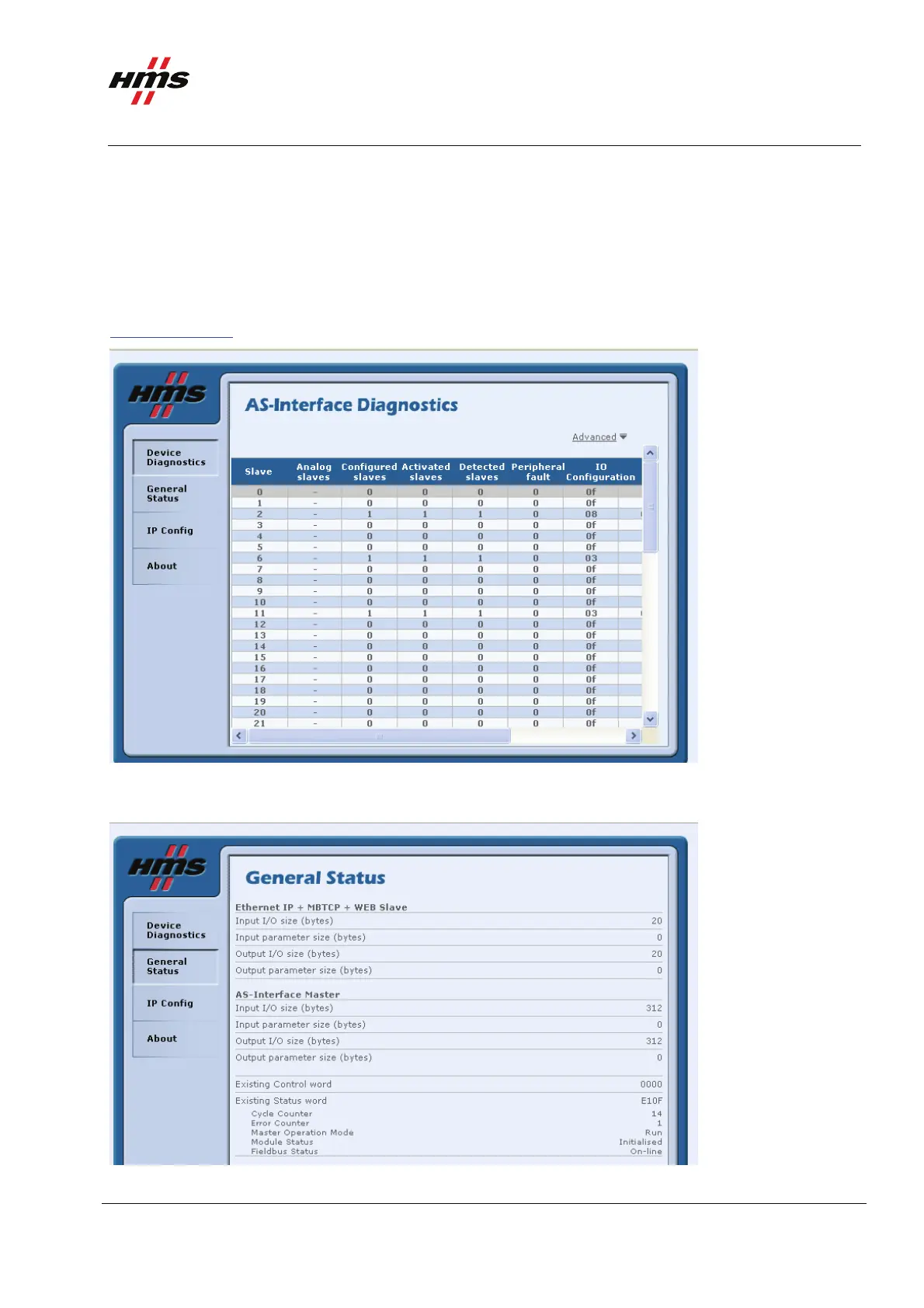

Figure 19 Viewing the AS-Interface Diagnostics in the web interface.
In the next window, the General Status window, it is possible to view the X-gateway configuration.
Figure 20 Viewing the General Status in the web interface.
