Installation Guide 4
© 2005-2009 HMS Industrial Networks.
Connecting to DeviceNet

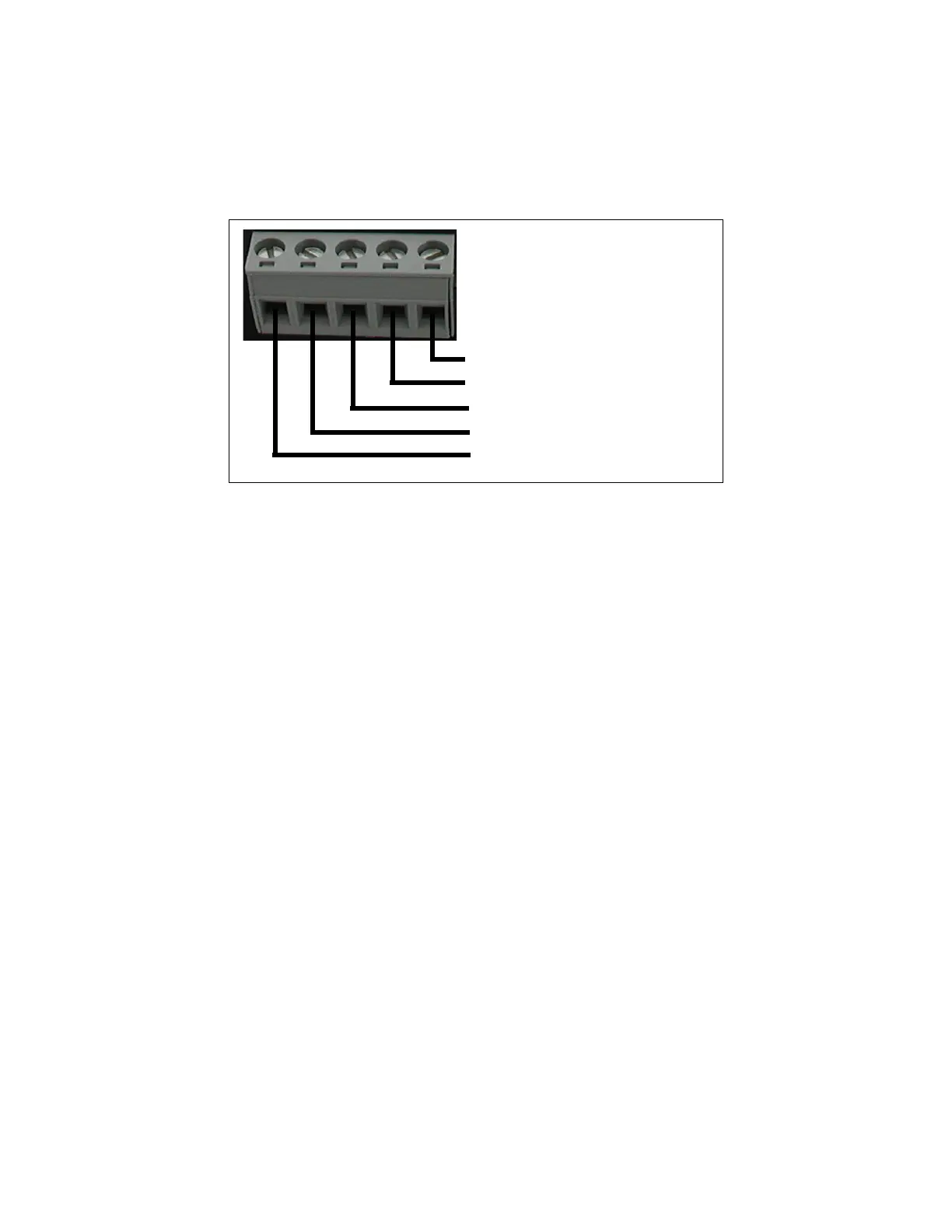

DeviceNet Connector
DeviceNet is connected to the 5 position terminal block connector.
A 120 ohm termination resistor (not provided) between CAN High and CAN Low
may be required for proper network termination.
Setting the MAC ID and Baud Rate
Factory default DeviceNet settings are:
MAC ID 63
Baud Rate 125K
(Red) Net Power 24VDC +
(Black) Net Power 24VDC Common
(White) CAN High
(Blue) CAN Low
CAN Shield
