Setting the IP Address with the Configuration Switch
The IP configuration switch is an 8 position DIP switch located on the end of the
module. If any of the 8 switches are in the ON position, the IP address will be set
as follows:
IP Address: 192.168.1.n
Subnet Mask: 255.255.255.0
Gateway Address: 0.0.0.0
Where n is the value represented in binary by the DIP switch.
This address is a private address and can only be used on a local intranet.
Example:

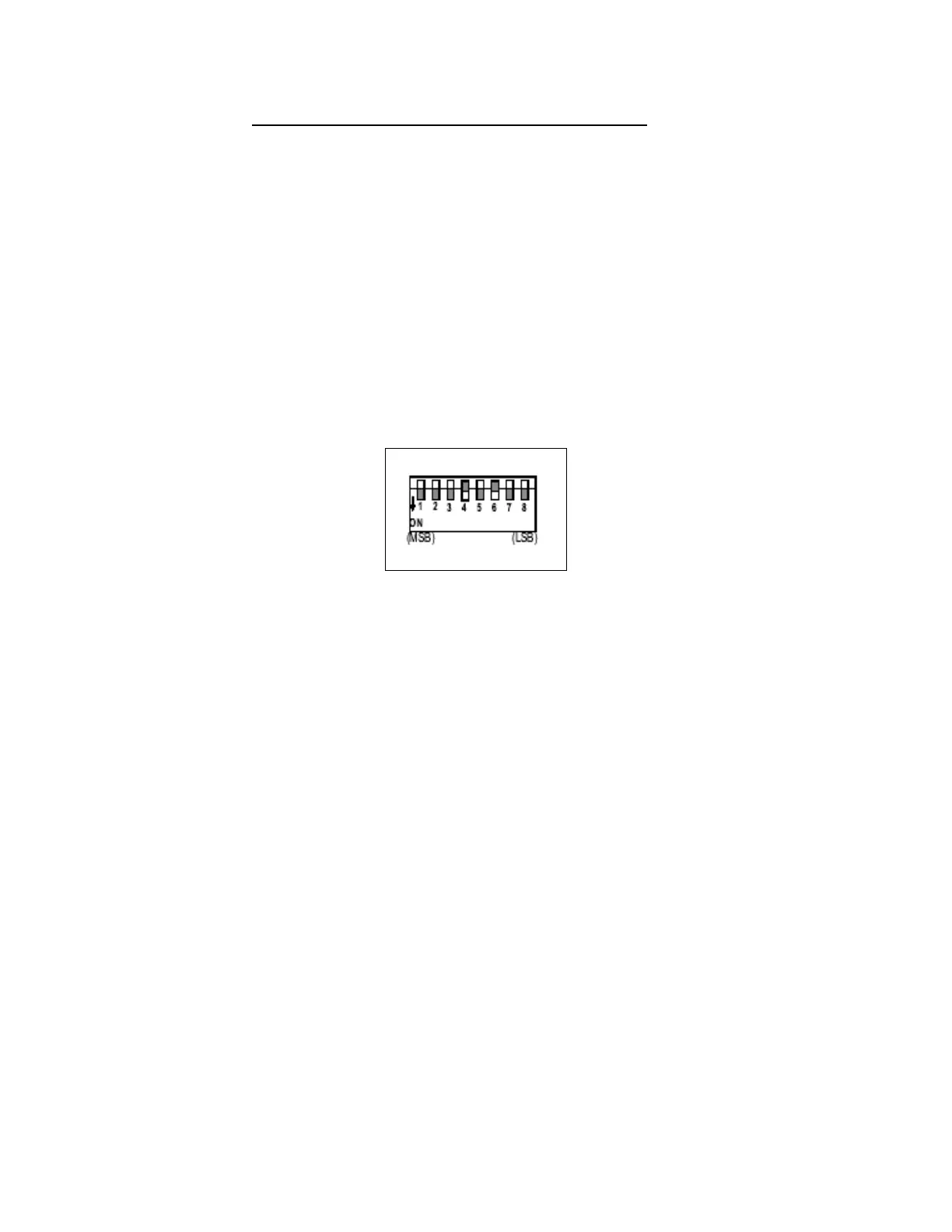

The switch represents the binary value 00010100, or 20 decimal. (The switch
position is shown in White in the diagram.)
The resulting IP address will be 192.168.1.20.
