6

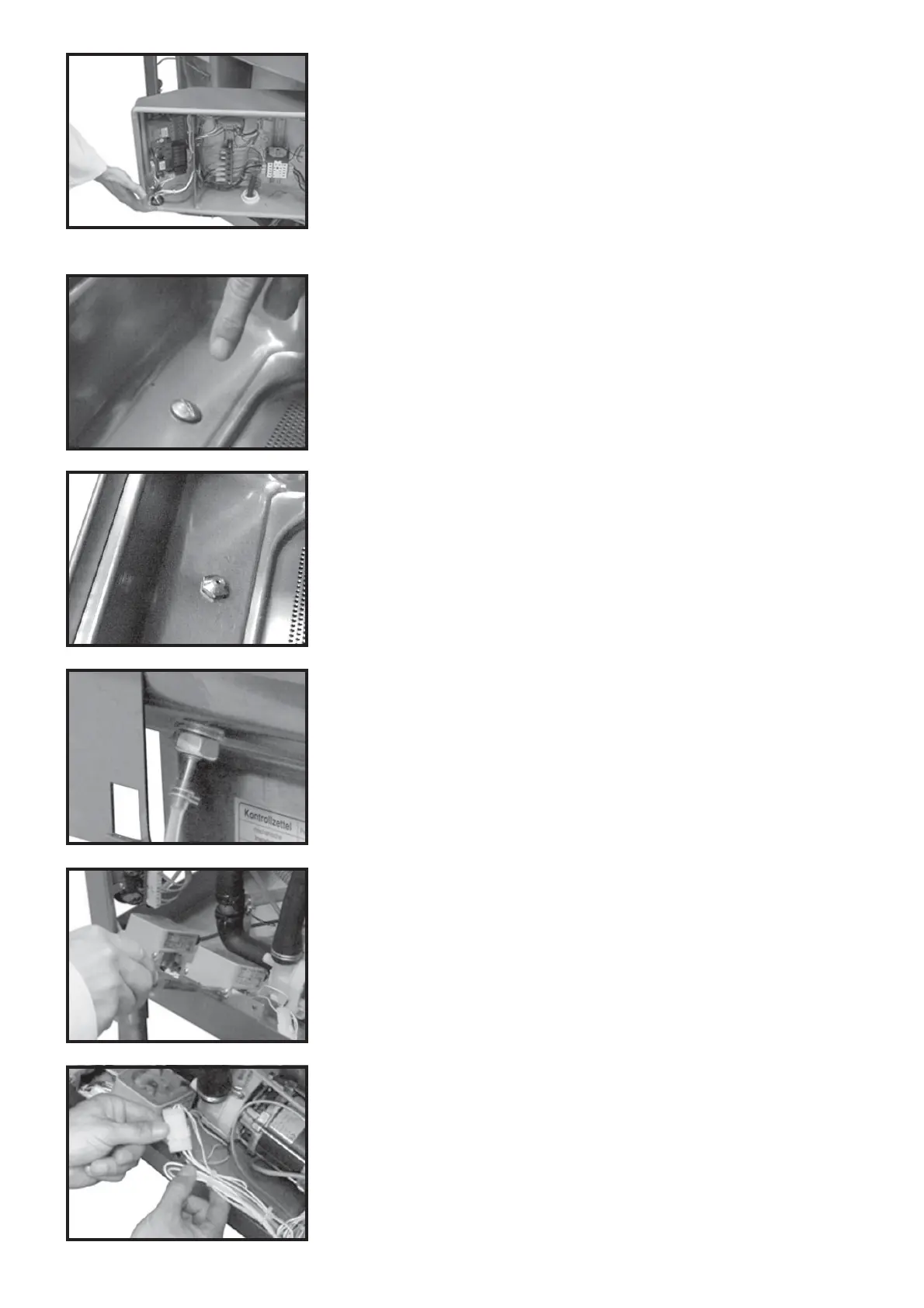

– Lift up control box and turn it to front.
TO CONNECT A LIQUID DETERGENT DISPENSER:
– Remove blanking plug (A) at tank (either at the right or left tank).
– Install detergent inlet fitting + gasket (B).
– Connect a hose (PVC / 6mm outside Ø x 4mm inside Ø) between
outlet of the detergent pump and the detergent inlet (B) of the
wash tank. Tighten with hose clamp.
– Install dosage pump or fit external dispenser.
– Connect the plug (C) of the wire harness with the dosage pump
(max. 100 VA).
A
B
B
C
