4-4. Variable Shade Control (No. 9–13)
OM-281997 Page 3
10-3. Lens Delay Control
1
10-4. Variable Shade Control (No. 9–13)
1
F
Place Weld/Grind mode
switch in Weld position
(Section 4-6).

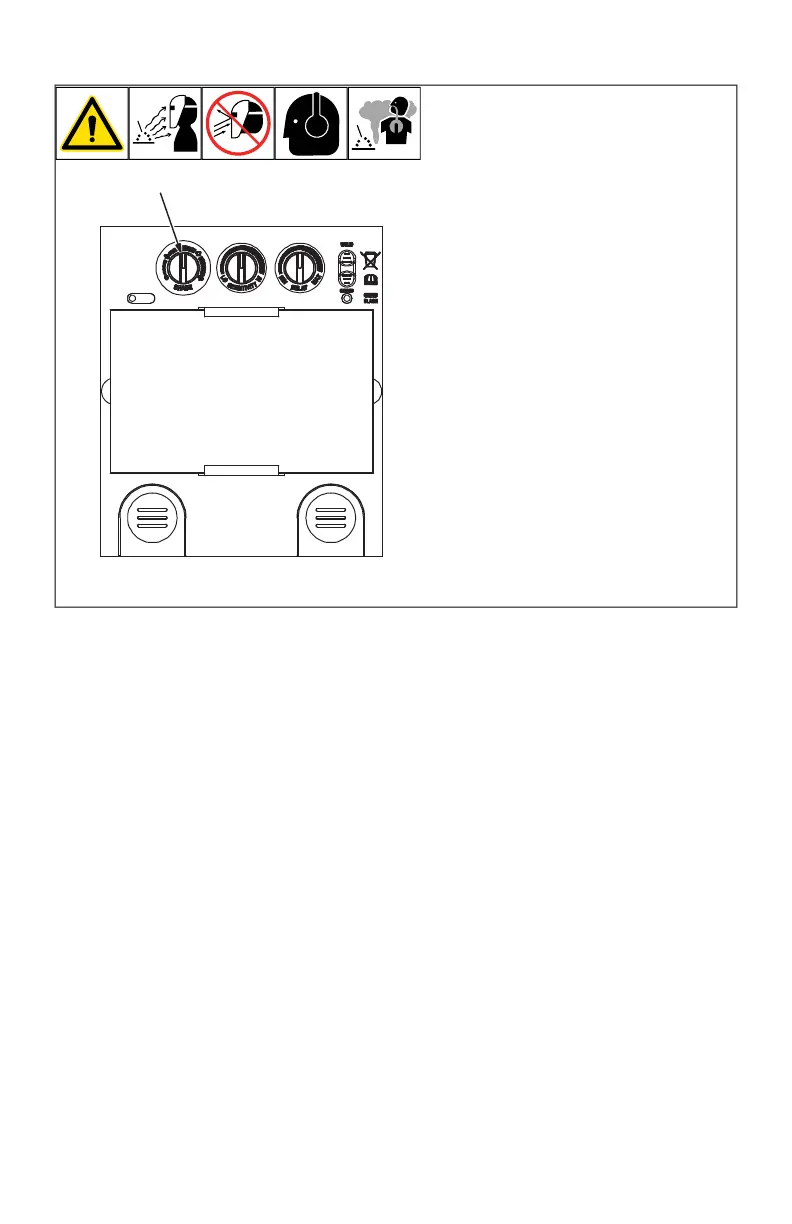

1 Variable Shade Control
(No. 9–13)
Use the control to adjust the
lens shade in the darkened
state. Use the table in Section
1-4 to select proper shade
control setting based on your
welding process.
Start at the highest setting
and adjust lighter to suit the
welding application and your
personal preference.
