SECTION 5 – ADJUSTING HEADGEAR
5-1. Adjusting Headgear
OM-281997 Page 6
SECTION 11 ADJUSTING HEADGEAR
1
2
4
5
3
F

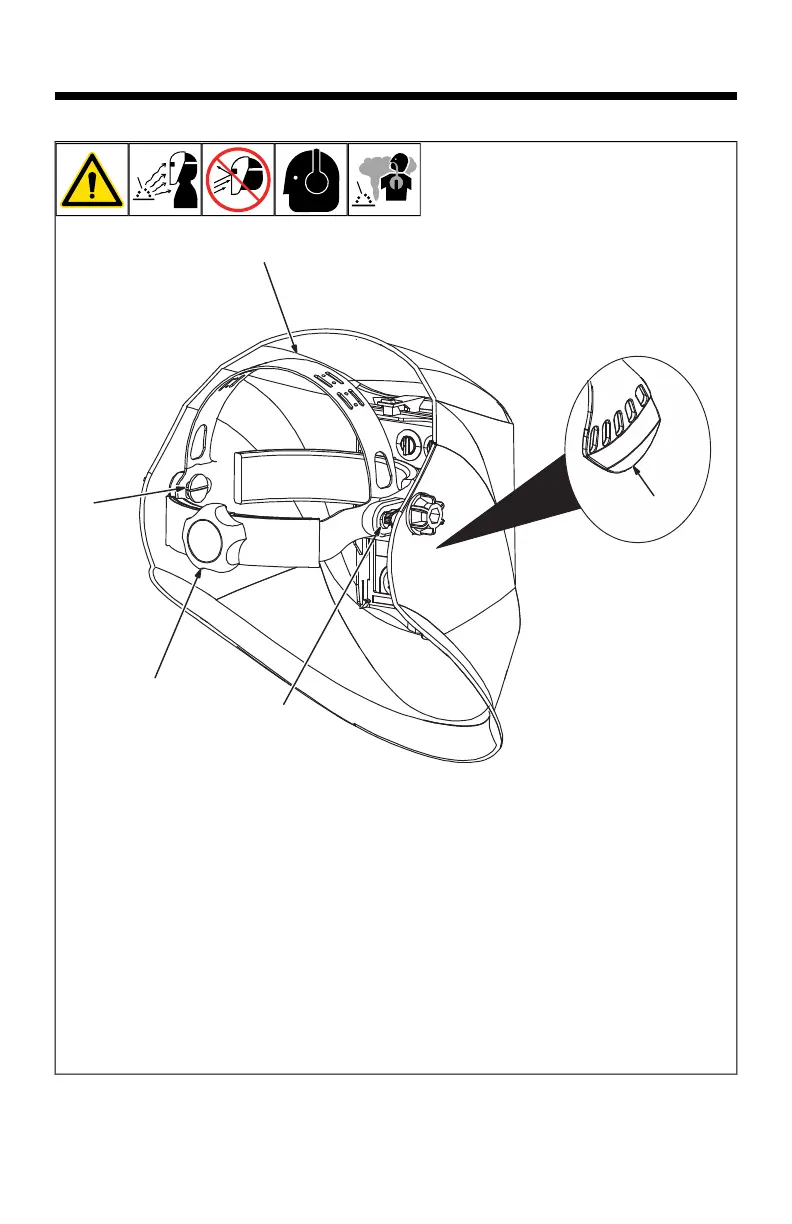

There are four headgear adjustments:
headgear top, tightness, angle adjust-
ment, and distance adjustment.
1 Headgear Top Adjustment
Adjusts headgear for proper depth on the
head to ensure correct balance and stability.
2 Headgear Tightness Adjustment
To adjust, turn the adjusting knob located on
the back of the headgear left or right to de-
sired tightness.
3 Angle Adjustment
Slots on the right side of the headband pro-
vide adjustment for the forward tilt of the hel-
met. To adjust, lift and reposition the control
arm to the desired position.
4 Distance Adjustment
5 Headgear Screw
Adjusts the distance between the face and
the lens. To adjust, loosen headgear screws
and slide headgear forward or backward to
one of the three slots on the slider. Tighten
screws. (Both sides must be equally posi-
tioned for proper vision.)
