6-2. Replacing Inside Lens Cover
OM-281997 Page 8
12-2. Replacing Inside Lens Cover
1
2
Never use the auto-
darkening lens with-
out the inside and
outside lens covers
properly installed.
Welding spatter will
damage the auto-
darkening lens and
void the warranty.

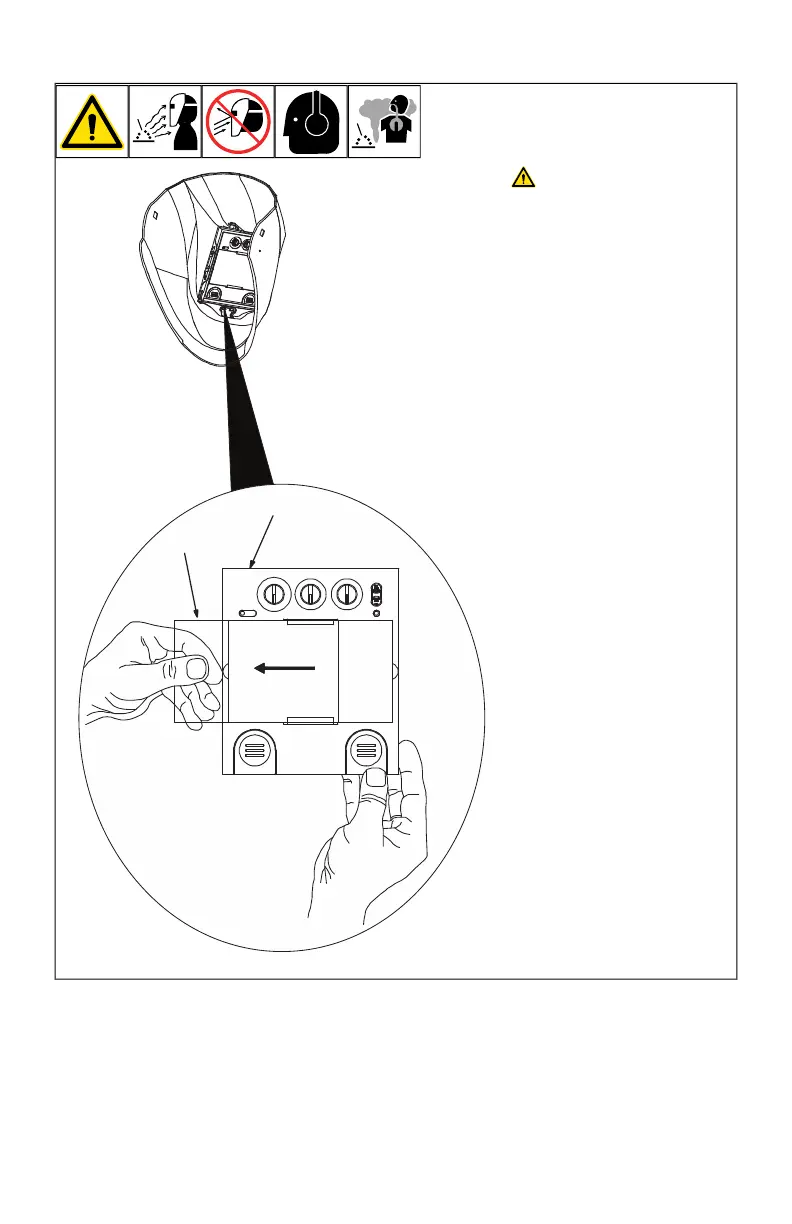

1 Lens Assembly
2 Inside Lens Cover
Remove the lens cover holder
(see Section 6-1). Remove
lens assembly.
Remove the inside lens cover
by prying the cover up at ei-
ther thumbnail opening at
each side of the cover. Slide
cover it out of either side of
frame. Replace lens cover
and reinstall the assembly in
the helmet by reversing the
above procedure.
F
Be sure the cover lens is
seated properly (flat) to
prevent fogging.
