HOBIE 15 CLUB
Repeat mounting procedure for front crossbar.
Repeat procedure for port hull.
Position the two hulls parallel ensuring that you have identified right from left.
NB : the decals are normally on the outside of the hull.
Lift the right hand hull to the upright position. one person holds hull while the other seats the rear
crossbar into its deck support.
NB : the trampoline track faces aft.
1
3
4

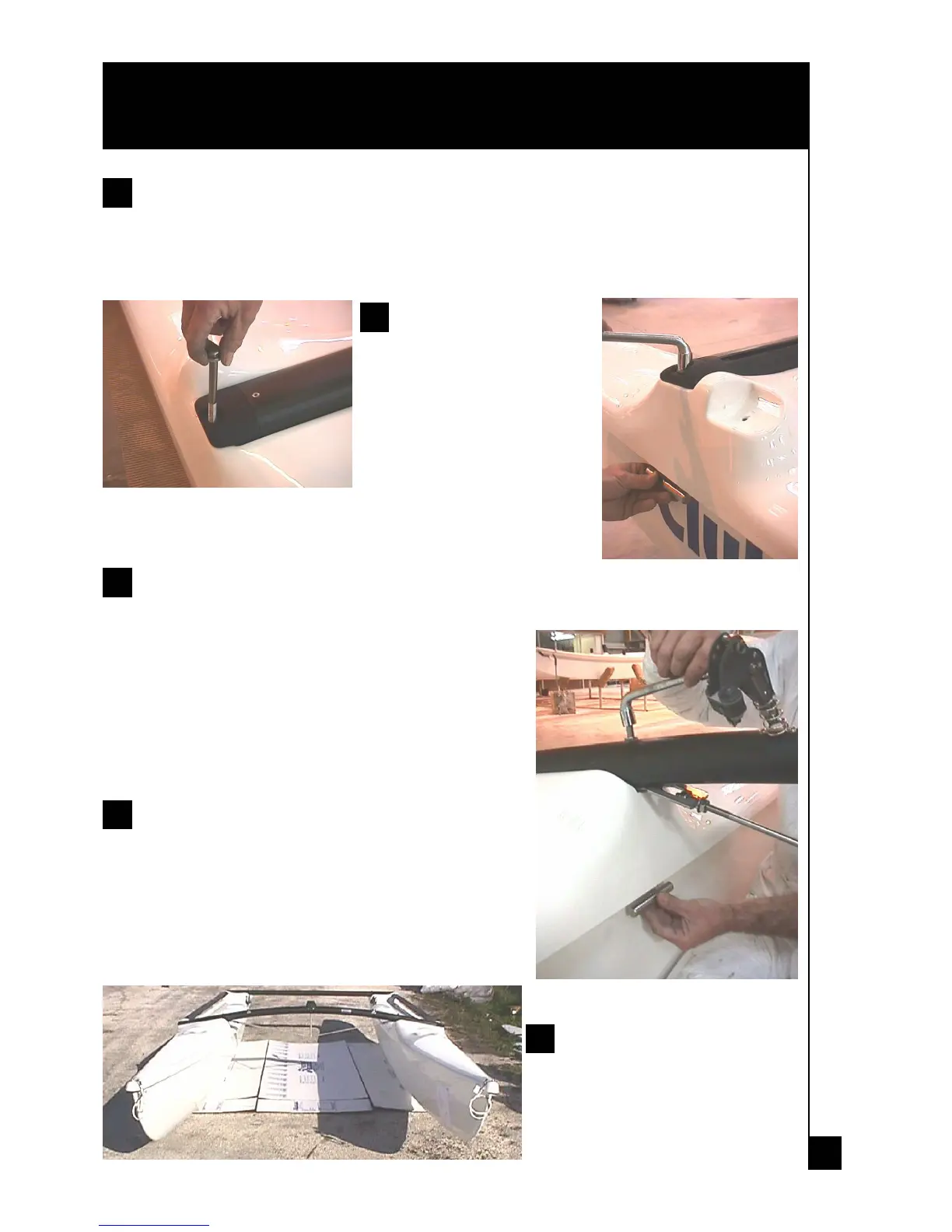

Hull assembly
Insert the two bolts
through the holes in the
deck. Position anchor bars
under gunwhale lip so that
threading will commence and
tighten both loosely using
#14 wrench.
2
After both beams are in place,
tighten all eight bolts securely.
5
To Next Page
