Hobie 15 Club Assembly Manual

HOBIE 15 CLUB
7
ADJUSTING SCREW
The screw allows the tightening of the plastic cam.
2

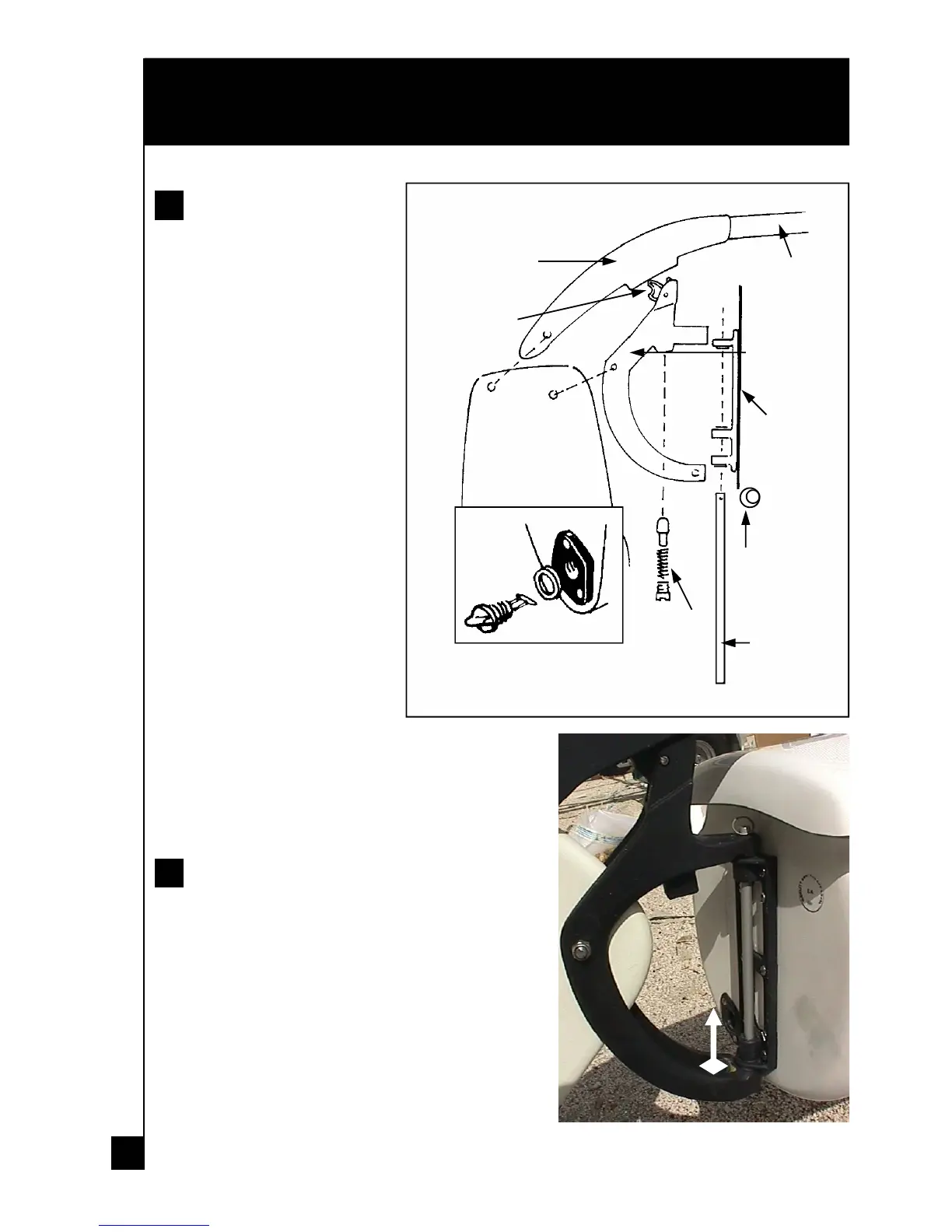

RUDDER ASSEMBLY
Identify the starboard (green
sticker) and the port (red sticker)
rudder assemblies. Locate the
two aluminium rudder pins in the
parts bag and split pins or split
rings. Hold the starboard rudder
casting in line with the starboard
gudgeon and insert the rudder
pin. ensure that the small hole in
the rudder pin is at the top. Insert
a split pin or split ring through
the hole in the top of the rudder
pin
RUDDER ASSEMBLY
Upper casting
rgehäuse
Rudder blade
Plastic cam
DRAINING PLUG
Tiller arm
Lower Casting
Gudgeon
Split ring
Rudder pin
Rudder screw
1
Rudder Assembly
