8
HOBIE 15 CLUB
TILLER SYSTEM

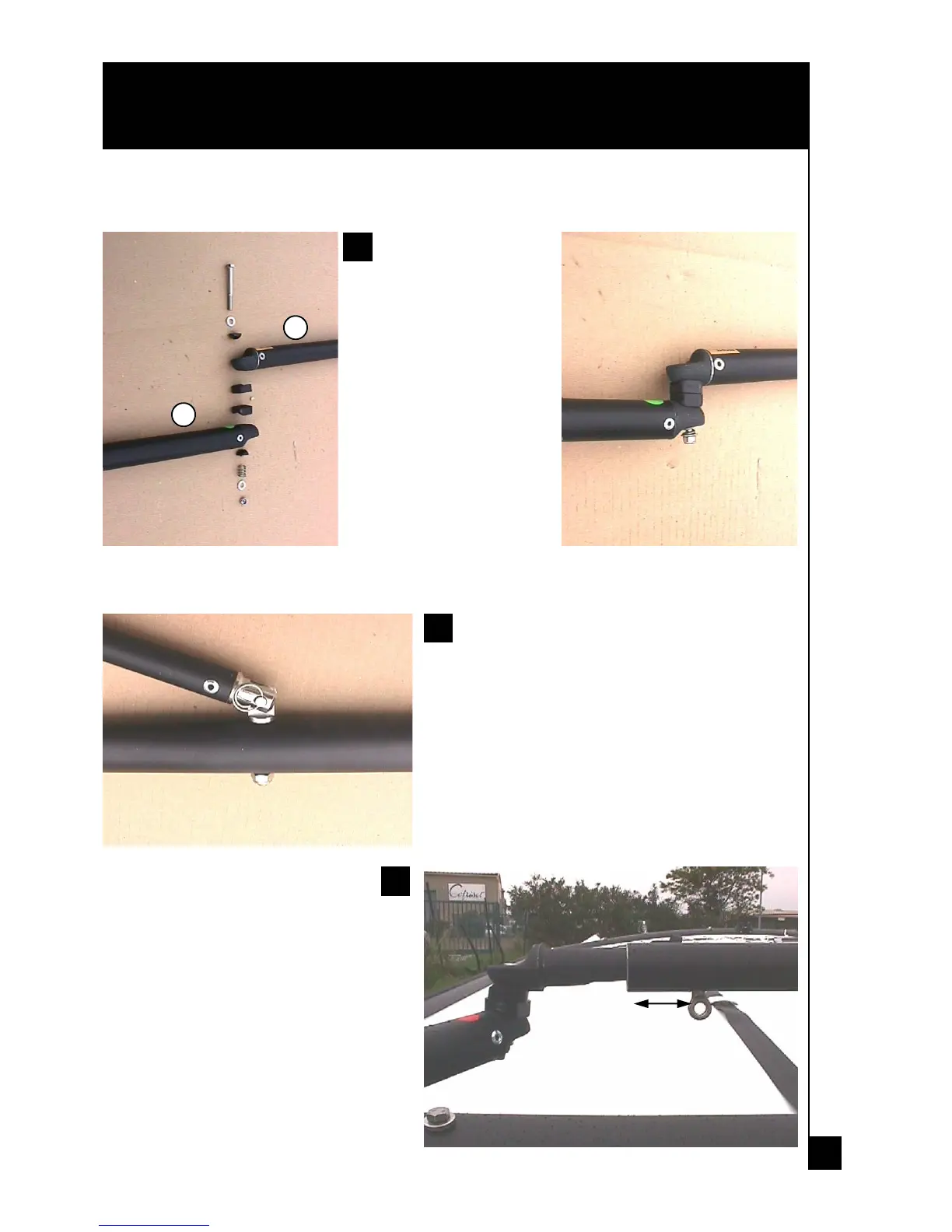

Attach the tiller crossbar
(1) to the tiller arm (2). Pay
attention to the left and right
side. Insert the screw as
shown on the drawing. Repeat
the same operation on the
other side.
Tiller extension
Attach the stick by slipping the pin through the
violin screw in the middle of the tiller crossbar.
1
1
2
2
It is advisable to have the rudder blades
parallel or lightly toed-in (3-4 mm).
The length of the tiller crossbar can be
adjusted to achieve this. Loosen the screw
on the underside of the tiller crossbar and
you will be able to slide the adjuster in or
out. When you have aligned the rudders
correctly, ensure that you re-tighten the
adjuster screw firmly.
3
Tiller crossbar and tiller extension
