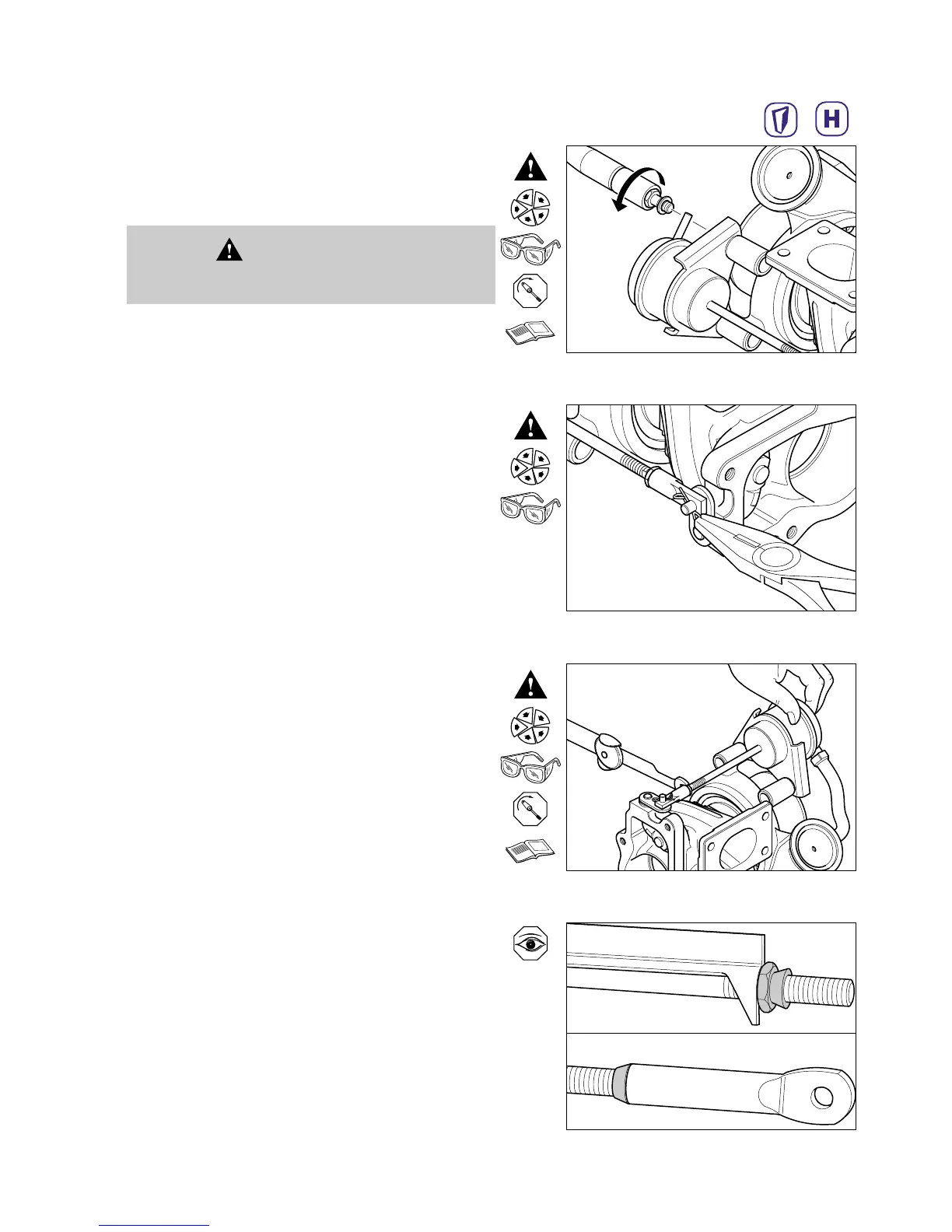

M8 (12 mm)
Fit actuator mounting fasteners with washers and
torque tighten to the value shown in the
Service Data Sheet.
HX25/25W/27W Service Repair Manual Component Testing and Replacement
4:19
Fit new spring clip to retain end link on pin.
(10 mm)
Loosen spacer piece by turning jam-nut anti-clockwise
(counter-clockwise). Remove and discard tie wrap and
spacer piece.
Continue turning jam-nut in the same direction, and
torque tighten against end link to value shown in
Service Data Sheet.
New pre-set actuator kits (74) may be supplied with a
tamper resistant break off nut (143) instead of a jam nut
(128). To install a tamper resistant actuator:
1. Slacken the shear nut from the spacer spine
2. Continue to turn the nut until it contacts the pre-set
end link
3. Continue tightening until the hex flats break off
leaving only the cone section in tight contact with
the end link.
Warning
Always wear safety glasses when fitting wastegate
actuator.
