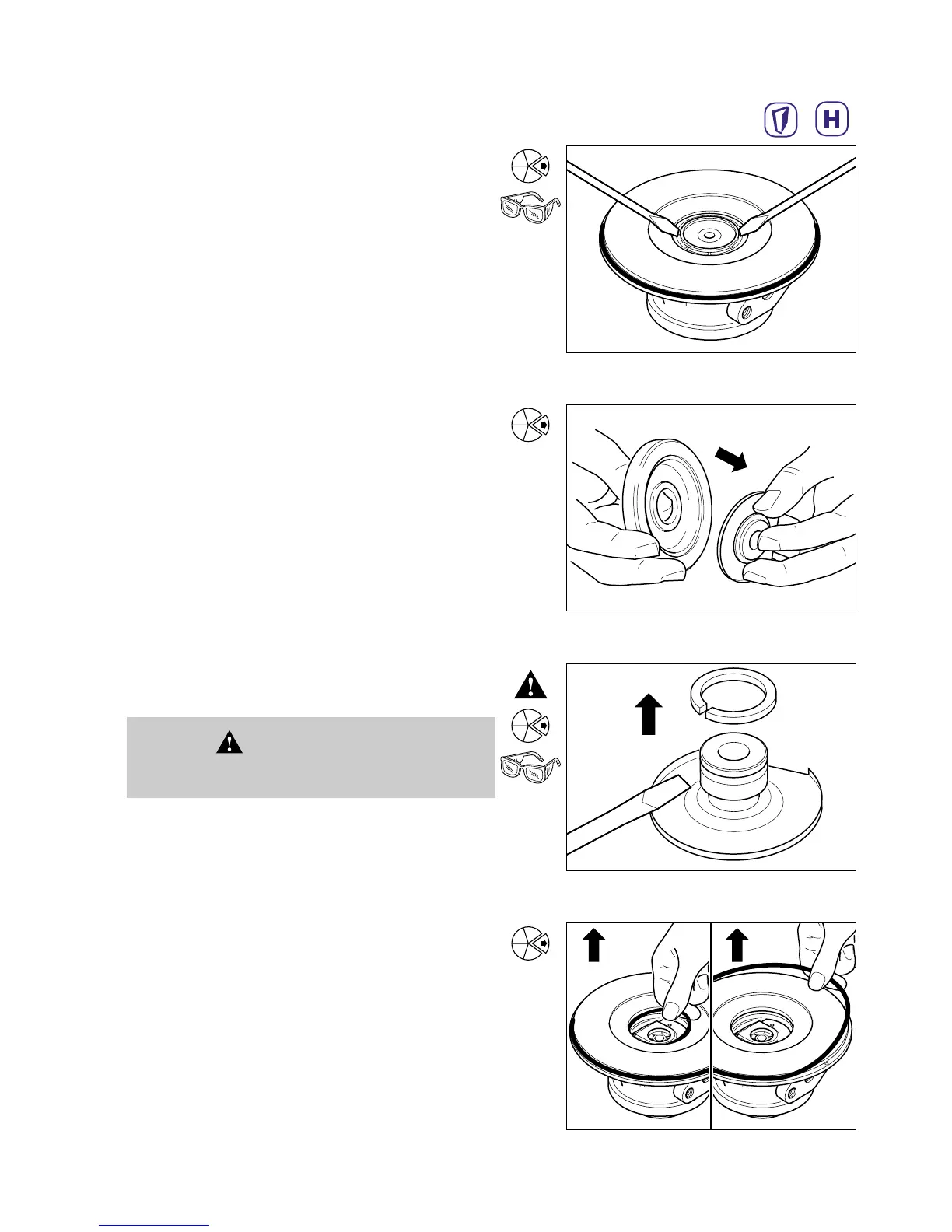

Remove oil seal plate (43) using two screw drivers
under the exposed lip to prise out seal plate.
HX25/25W/27W Service Repair Manual Turbocharger Service and Overhaul
5:4
Remove oil slinger (31) and baffle sub-assembly from
oil seal plate.
Using a precision screwdriver, remove split ring seal,
compressor (16)
*
to disassemble oil slinger (31) from
oil baffle (33)
*
.
Remove and discard the o-ring seal, bearing housing
(32)
*
and o-ring seal, compressor housing (41)
*
.
Warning
Always wear safety glasses when removing sealing
rings.
