Treadmill A90-248 ~ 4 ~

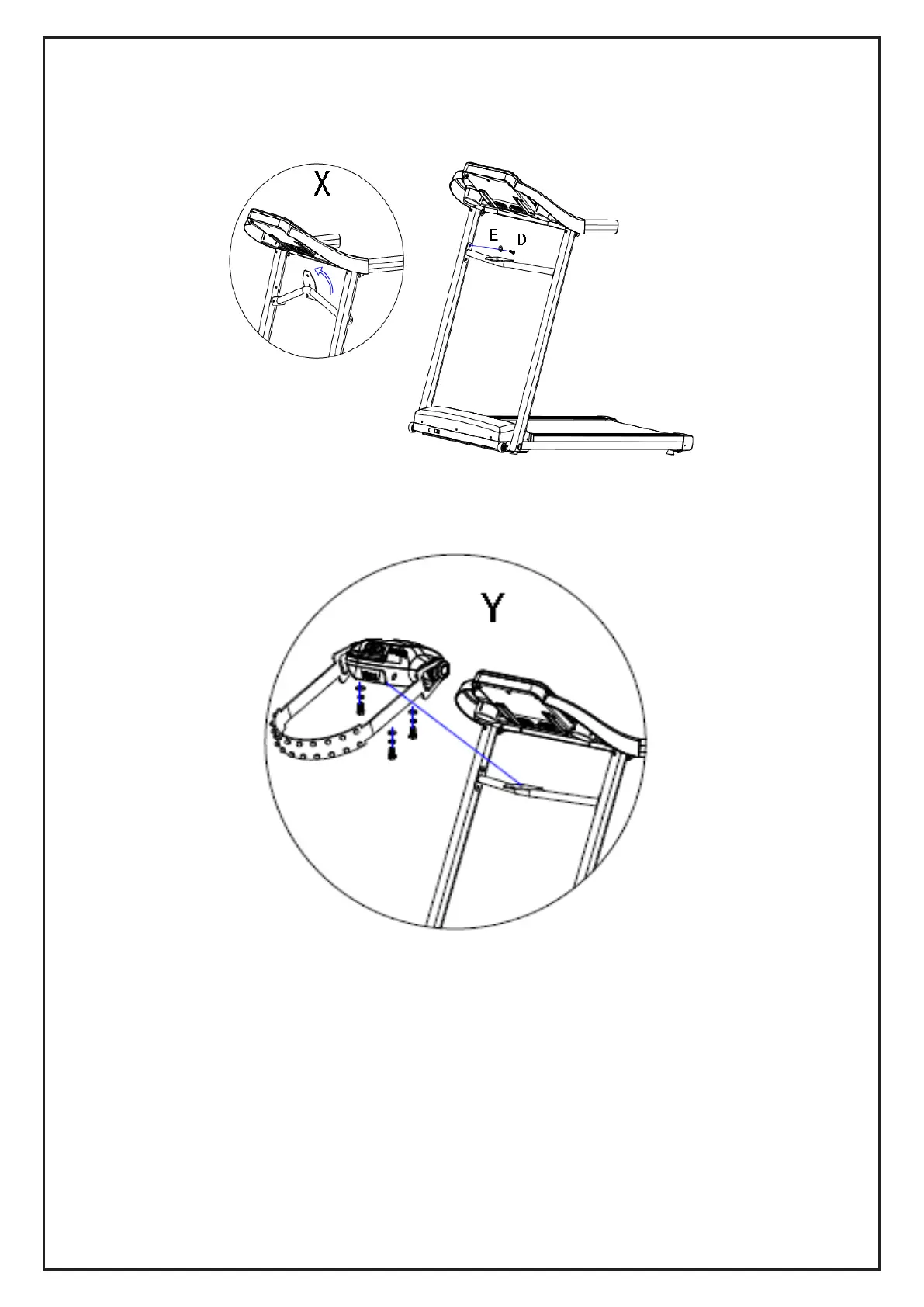

1. Rotate the massage bracket in the direction of the arrow shown in figure X, then fix the massage bracket on the
column with part E (#M8*15) screws and part D (#M8) flat pads.
2. Use its flat screws and spring pads to massage 4 #. The head is fixed on the flat plate on the upper end of the
massage stand.
