Homelite Trimlite UT20763 User Manual

Page 21
P/N DESCRIPTION
A. UP04634 Muffler Assembly w/Gasket
Includes:
UP04629 Screen-Spark Arrestor
B. UP08713 Carburetor Assembly
C. UP03858 Ignition Assembly
Includes:
UP05875 Spark Plug
D. UP04741 Air Filter Assembly
Includes:
UP04270 Filter
E. UP08714 Starter Assembly
F. UP00020 Fuel Tank Assembly
Includes:
UP04708 Fuel Cap
G. UP03025 Rear Housing
H. UP03091 Control Handle
I. UP04557 Cable-Throttle
J. UP03010 Handle
K. UP00710 Curved Shaft Assembly (Trimlite & Trim ‘n
Edge Models)
UP04891 Straight Shaft Assembly (Easy Reach
Models)
L. UP06710 Deflector (Trimlite & Trim ‘n Edge Models)
UP04888 Deflector (Easy Reach Models)
P/N DESCRIPTION
M. DA03001A String head - Complete (.080 in. [2.0 mm])
Includes:
UP06567 Housing & Eyelet
B06713 Spring-Compression
UP00145 Spool & String (.080 in. [2.0 mm])
DA98866A Retainer-Spool (R.H. Thread, Black)
N. UP06970 Gear Head Assembly (Easy Reach
Model)
O. UP04099 Muffler Guard Kit (Optional)
P. UP00008 Edger Guide (Trim ‘n Edge Model)
Q. UP03116 Engine Assembly
For product information, technical help,
dealer locations or parts ordering information
visit our website at: www.homelite.com or
call 1-800-chainsaw (1-800-242-4672).

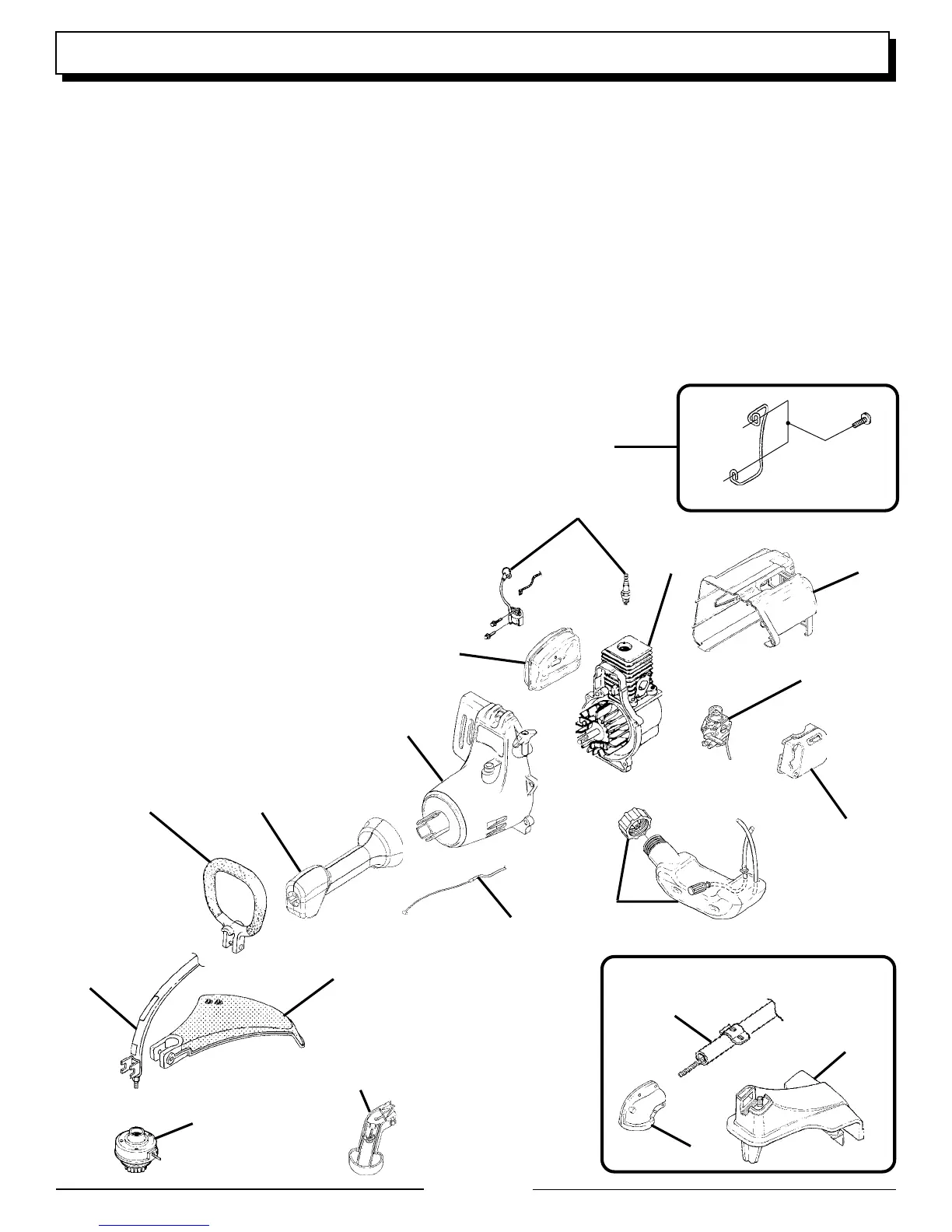

SERVICE PARTS
OPTIONAL MUFFLER GUARD
G
C
A
E
H
J
K
M
L
I
F
Q
B
D
P
EASY REACH
K
L
N
O
