Honda 08E91-E54-100 - Routing the Engine Starter Harness

10 of 25 AII 50024-50373 (1308) © 2013 American Honda Motor Co., Inc. – All Rights Reserved.

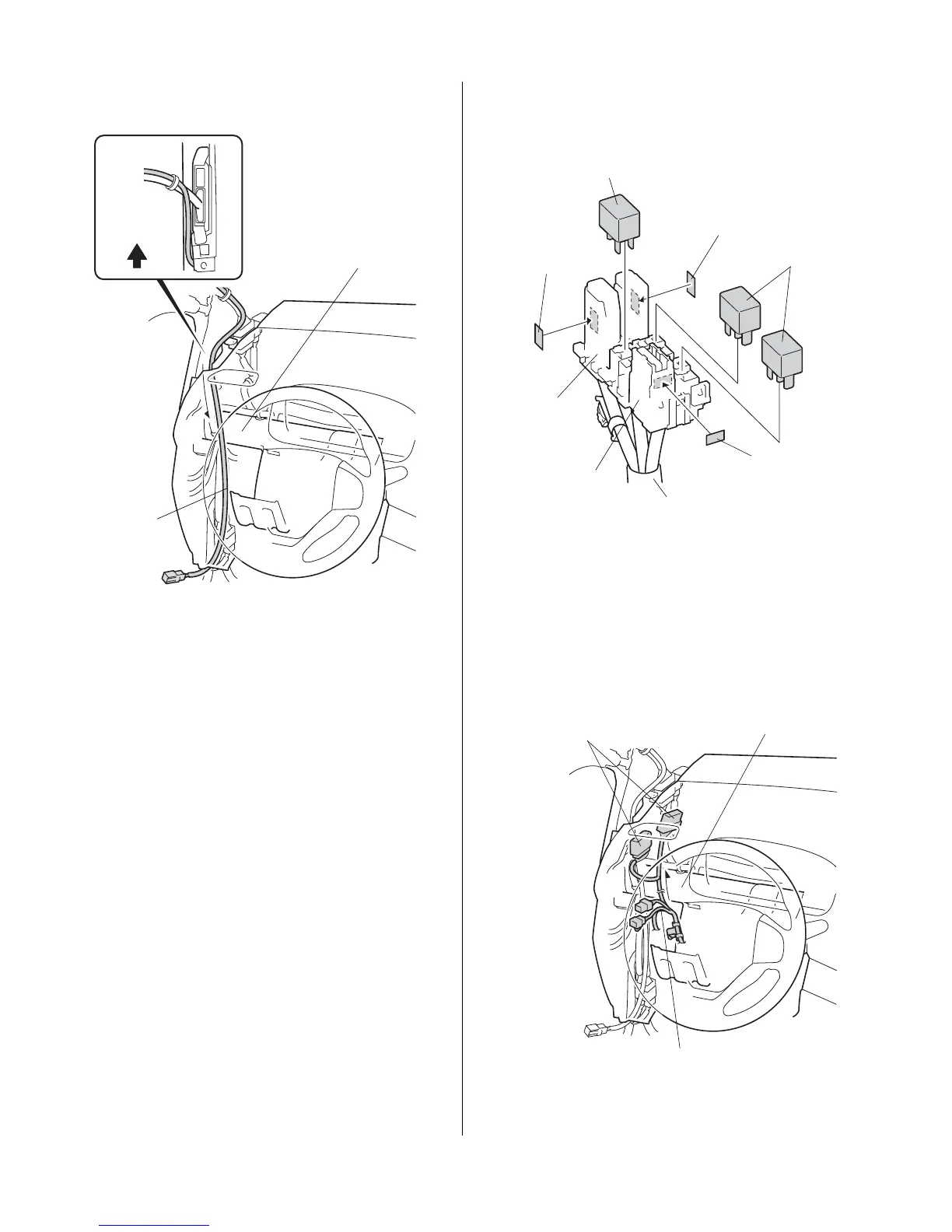

31. Route the antenna cable behind the dashboard.
QC50906AB
ANTENNA
CABLE
TOP VIEW
FRONT
STEERING
HANGER BEAM
Routing the Engine Starter Harness
32. Plug the three relays into the relay block on the
engine starter harness.
Q0N1801AG
40A FUSE
LABEL
2 RELAYS
RELAY
40A FUSE
LABEL
FUSE
BLOCK
RELAY
BLOCK
ENGINE STARTER
HARNESS
3A FUSE
LABEL
33. Using isopropyl alcohol on a shop towel, thoroughly
clean the relay block and fuse block where the 3A
fuse label and 40A fuse labels will attach.
34. Attach the 3A fuse label and two 40A fuse labels to
the
relay and fuse blocks.
35. Route the two 28-pin starter harness connectors
up
ward as shown.
QC50907AB
ENGINE STARTER
HARNESS
STEERING
HANGER BEAM
ENGINE STARTER
HARNESS 
28-PIN CONNECTOR
