Removing the Vehicle Parts

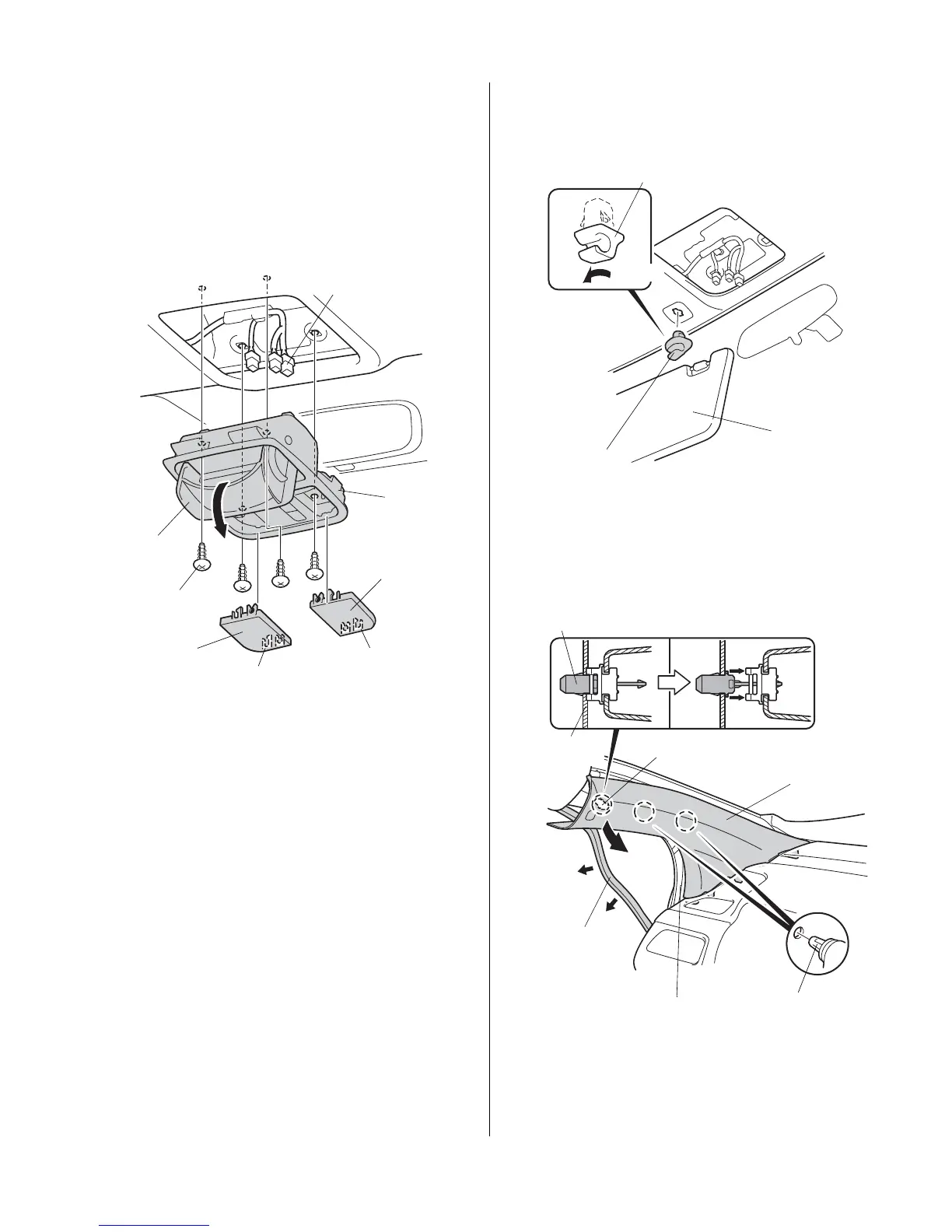

4. Remove the roof console.
• Using a plastic trim tool, pry off the left and right
le
nses.
• Open the sunglass holder and remove the
screws
.
• Remove the roof console and unplug the vehicle
co
nnectors.
Q0N2012AG
VEHICLE
CONNECTORS
ROOF
CONSOLE
4 SCREWS
4 RETAINING
TABS
LEFT
LENS
SUNGLASS
HOLDER
(Open.)
4 RETAINING
TABS
RIGHT
LENS
5. Release the driver’s sunvisor from the sunvisor
holder. Rotate the holder 45° counterclockwise and
remove it
QC50902AB
Rotate.
SUNVISOR
HOLDER
SUNVISOR
HOLDER
DRIVER’S
SUNVISOR
6. Pull the driver’s door seal away from the driver’s 
A-pillar. Gently pull out the driver
’s A-pillar trim to
release the clips.
Q0N2014AG
VEHICLE
PANEL
CLIP
2 CLIPS
DRIVER’S
A-PILLAR
TRIM
DRIVER’S
DOOR 
SEAL
(Pull away.)
CLIP
DRIVER’S
A-PILLAR
