14 of 25 AII 50024-50373 (1308) © 2013 American Honda Motor Co., Inc. – All Rights Reserved.

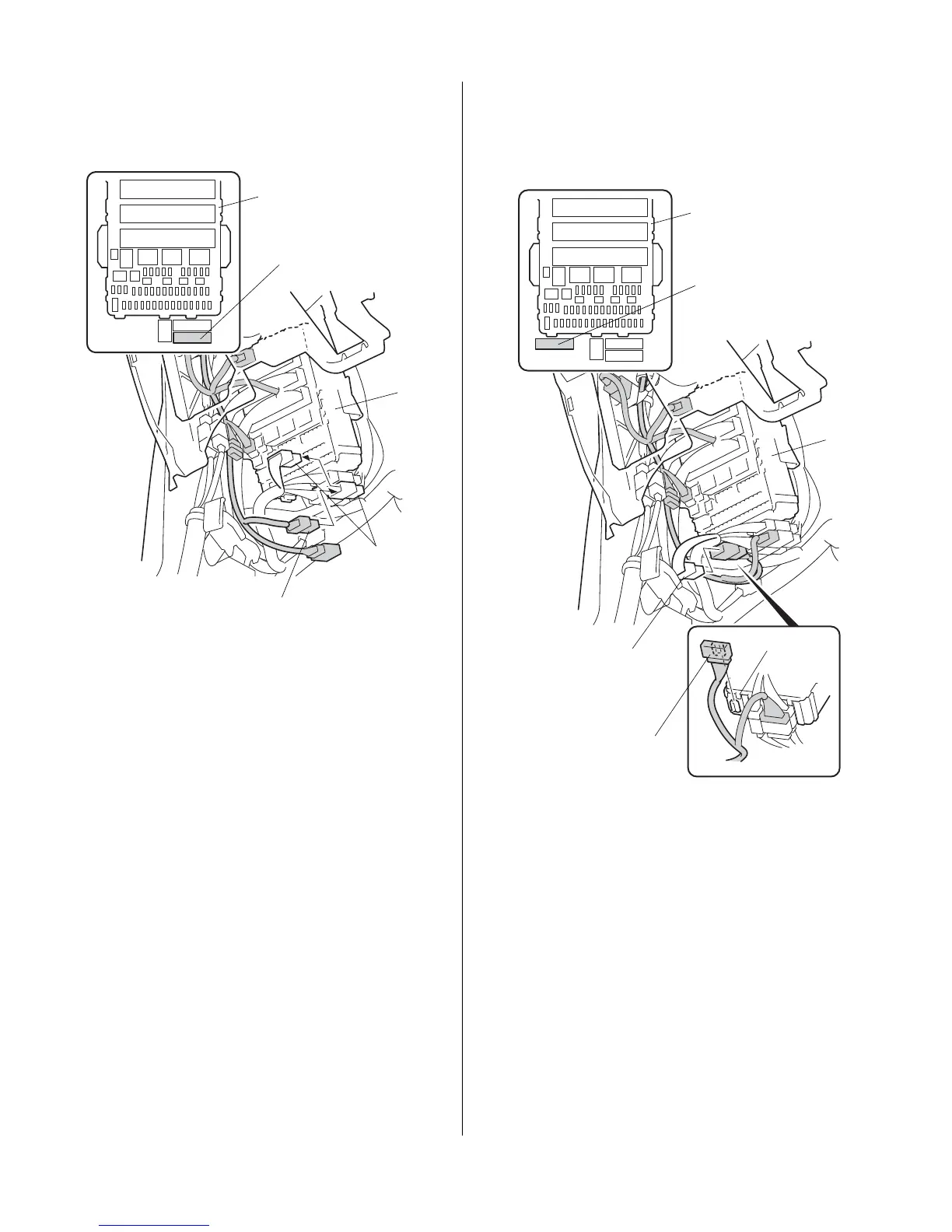

49. Unplug the vehicle 24-pin connector, and plug the
engine starter harness 24-pin connector into the
vehicle 24-pin connector.
QC50913AB
FRONT VIEW
FUSE
BOX
FUSE
BOX
ENGINE STARTER HARNESS
24-PIN CONNECTOR
VEHICLE 
24-PIN 
CONNECTOR
VEHICLE 
24-PIN 
CONNECTOR
50. Slide the clip from the engine starter harness 24-pin
connector onto the bottom of the fuse box, then plug
the remaining vehicle 24-pin connector into the
engine starter harness 24-pin connector.
QC50914AB
FRONT VIEW
FUSE
BOX
FUSE
BOX
ENGINE
STARTER
HARNESS 
24-PIN
CONNECTOR
VEHICLE 
24-PIN 
CONNECTOR
FUSE BOX
ENGINE
STARTER
HARNESS 
24-PIN
CONNECTOR
