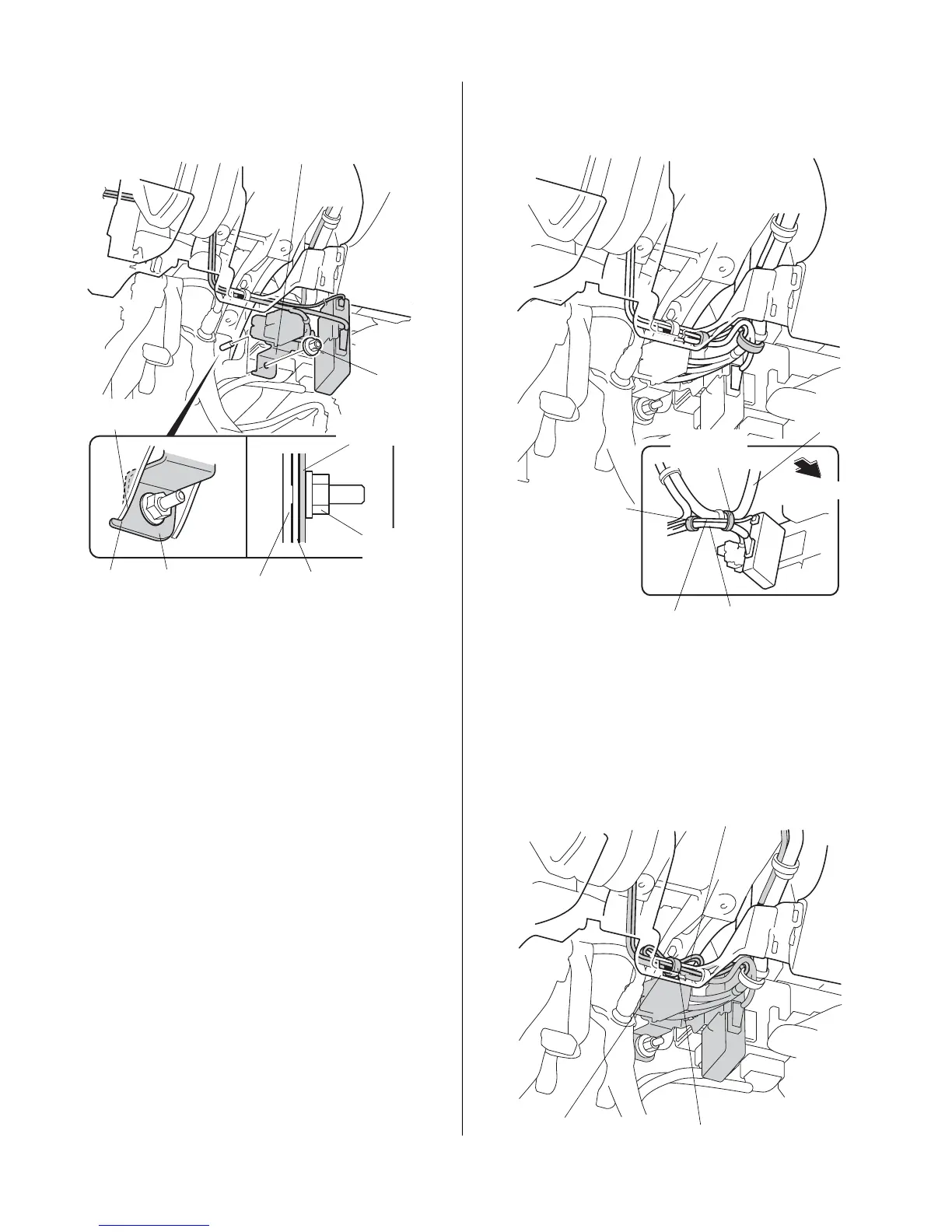

75. Remove the vehicle flange nut that secures the
vehicle bracket.
CONTROL UNIT
BRACKET
VEHICLE
FLANGE
NUT
CONTROL UNIT
BRACKET
VEHICLE
BRACKET
VEHICLE
FLANGE
NUT
VEHICLE
BRACKET
VEHICLE
PANEL
CONTROL
UNIT
BRACKET
Align.
76. Install the control unit bracket on top of the vehicle
bracket and align the brackets. Install the vehicle
flange nut.
77. Secure the antenna cable and engine starter
harness to the vehicle harness with one long cable
tie.
QC61401AY
ENGINE
STARTER
HARNESS
FRONT
LONG
CABLE TIE
ANTENNA
CABLE
VEHICLE
HARNESS
CABLE
TIE
78. Secure the antenna cable to the engine starter
harness with one cable tie.
79. Bundle up the excess antenna cable, and secure it
to the da
shboard with the one cable tie loosely
installed in step 69.
ANTENNA CABLE
(Bundle up the excess.)
CABLE TIE
DASHBOARD
