© 2013 American Honda Motor Co., Inc. – All Rights Reserved. AII 50024-50373 (1308) 7 of 25

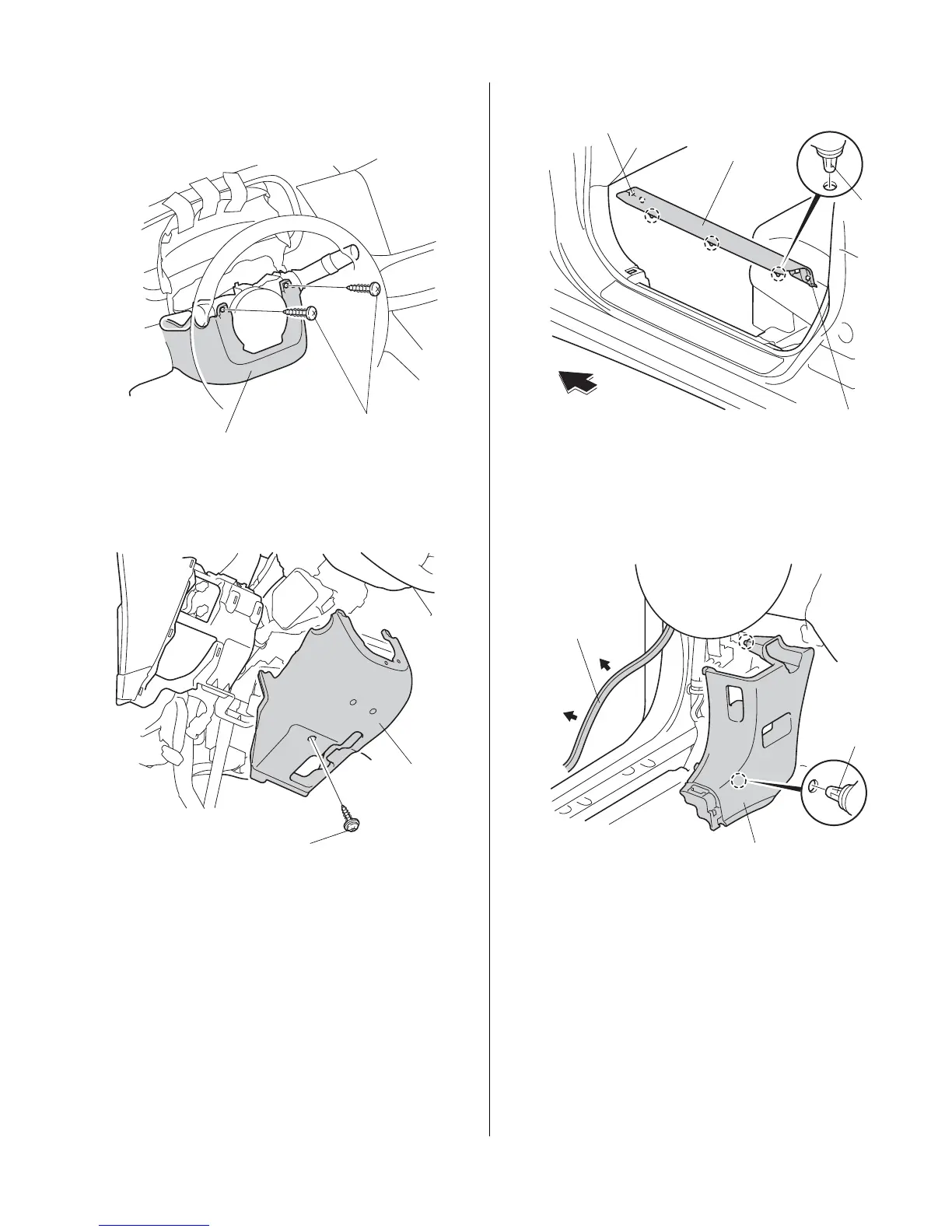

20. Remove the two self-tapping screws from the front of
the lower column cover.
Q0N2027AG
LOWER COLUMN
COVER
2 SELF-TAPPING
SCREWS
21. Remove the lower column cover.
Q0N2028AG
SELF-TAPPING
SCREW
LOWER
COLUMN
COVER
22. Remove the driver’s front door sill trim.
Q0N2029BG
2 RETAINING TABS
FRONT
3 CLIPS
2 HOOKS
DRIVER’S
FRONT DOOR
SILL TRIM
23. Pull away the driver’s door opening seal, and
remove the driver’s kick panel.
Q0N2030AG
DRIVER’S DOOR
OPENING SEAL
(Pull away.)
DRIVER’S KICK
PANEL
2 CLIPS
