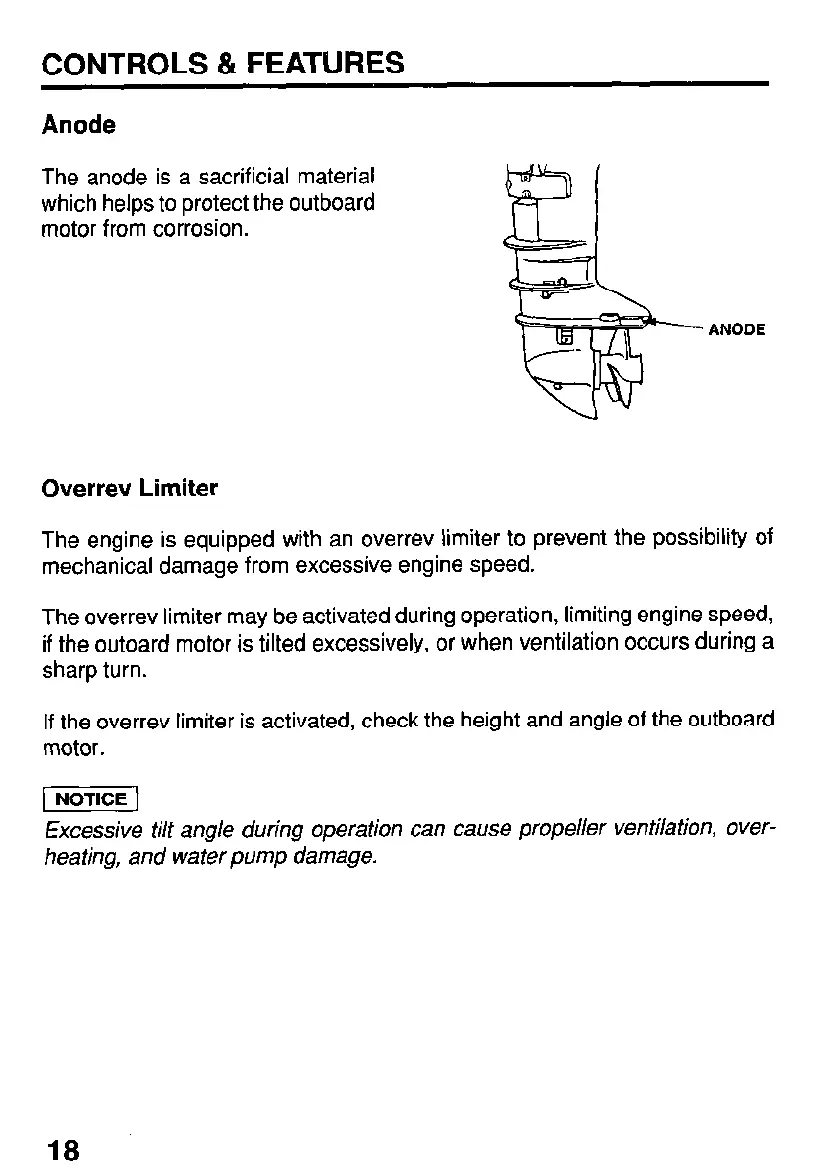

CONTROLS & FEATURES
Anode
The anode is a sacrificial material
which helps to protect the outboard
motor from corrosion.
ANODE
Overrev Limiter
The engine is equipped with an overrev limiter to prevent the possibility of
mechanical damage from excessive engine speed.
The overrev limiter may be activated during operation, limiting engine speed,
if the outoard motor is tilted excessively, or when ventilation occurs during a
sharp turn.
If the overrev limiter is activated, check the height and angle of the outboard
motor.
1 NOTICE ]
Excessive tilt angle during operation can cause propeller ventilation, over-
heating, and water pump damage.
18
