Honda BF15A - Propeller Replacement

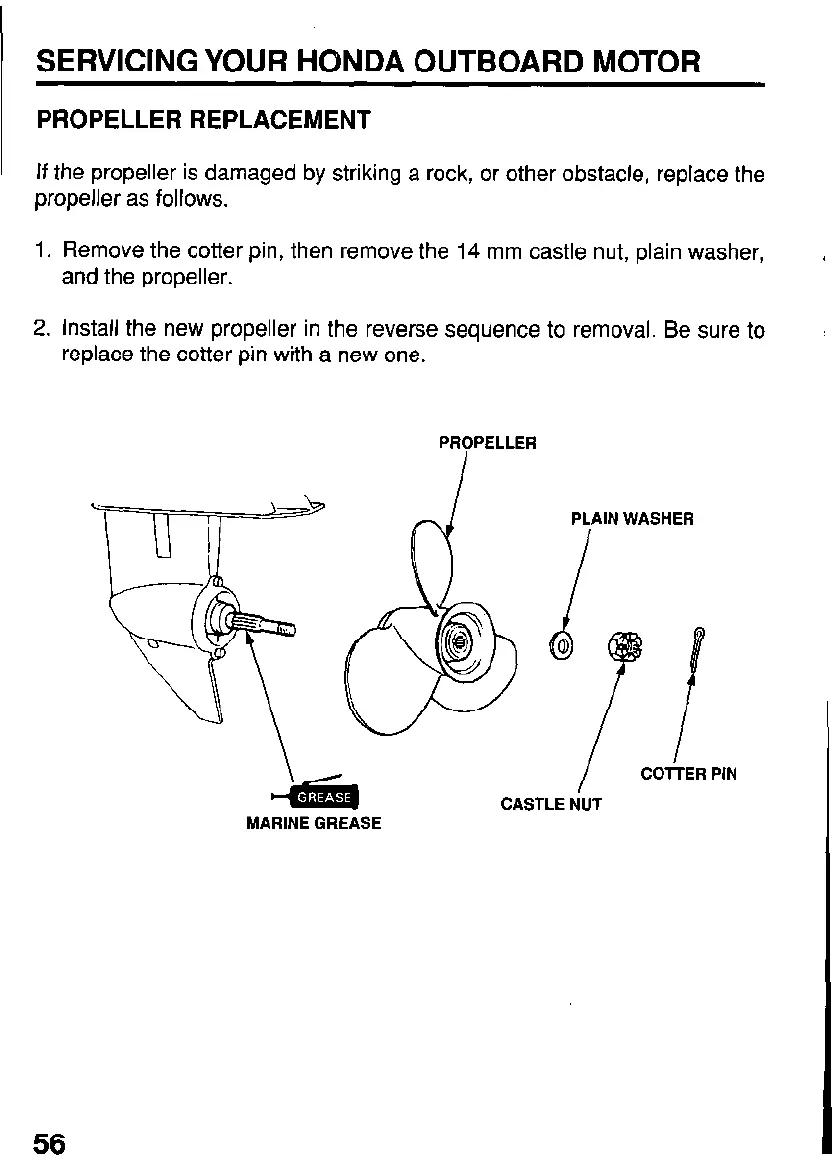

SERVICING YOUR HONDA OUTBOARD MOTOR
PROPELLER REPLACEMENT
If the propeller is damaged by striking a rock, or other obstacle, replace the
propeller as follows.
1. Remove the cotter pin, then remove the 14 mm castle nut, plain washer,
and the propeller.
2. Install the new propeller in the reverse sequence to removal. Be sure to
replace the cotter pin with a new one.
PROPELLER
i
PLAIN WASHER
MARINE GREASE
I
COlTER PIN
CASTLE NUT
56
