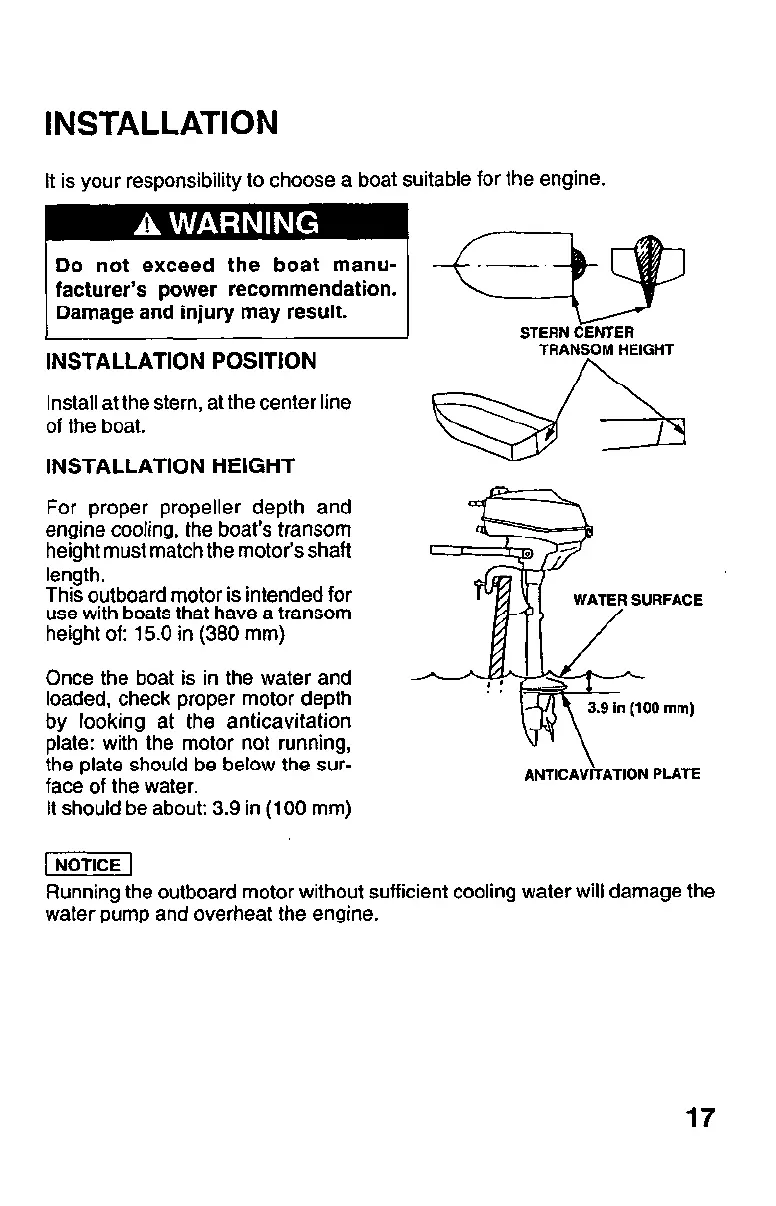

INSTALLATION
It is your responsibility to choose a boat suitable for the engine.
facturer’s power recommendation.
INSTALLATION POSITION
TRANSOM HEIGHT
Install at the stern, at the center line
of the boat.
INSTALLATION HEIGHT
For proper propeller depth and
engine cooling, the boat’s transom
height must match the motor’s shaft
length.
This outboard motor is intended for
use with boats that have a transom
height of: 15.0 in (380 mm)
Once the boat is in the water and
loaded, check proper motor depth
by looking at the anticavitation
plate: with the motor not running,
the plate should be below the sur-
face of the water.
It should be about: 3.9 in (100 mm)
ANTICAVITATION PLATE
Running the outboard motor without sufficient cooling water will damage the
water pump and overheat the engine.
17
