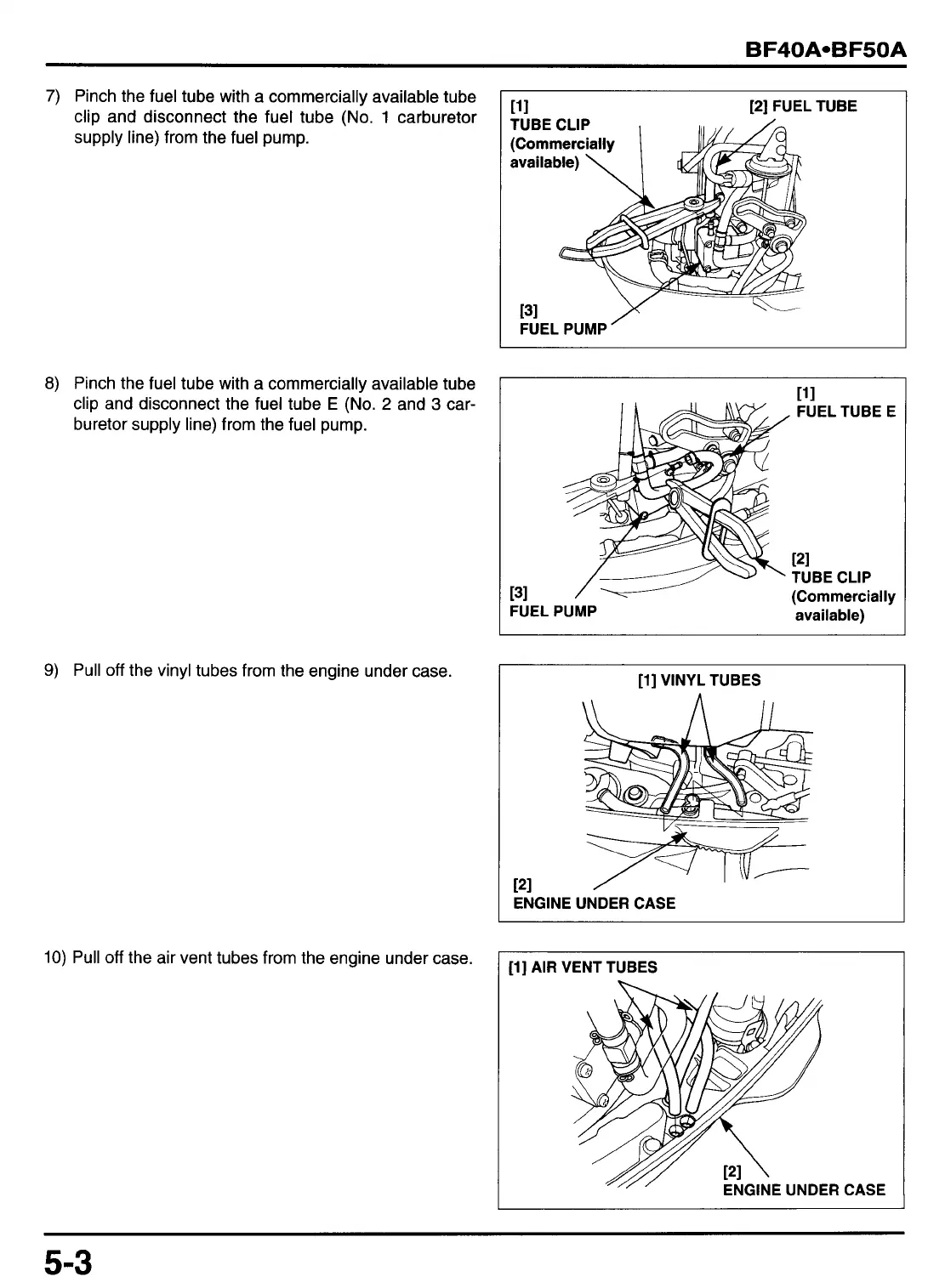

10) Pull off the air vent tubes from the engine under case.
7) Pinch the fuel tube with a commercially available tube
clip and disconnect the fuel tube
(No. 1 carburetor
supply line) from the fuel pump.
AIR VENT TUBES
8) Pinch the fuel tube with a commercially available tube
clip and disconnect the fuel tube
E (No. 2 and 3 car-
buretor supply line) from the fuel pump.
[1 I [2] FUEL TUBE
TUBE CLIP
rii
L -A
FUEL TUBE E
PI
TUBE CLIP
(Commercially
FUEL PUMP available)
[l] VINYL TUBES
9) Pull off the vinyl tubes from the engine under case.
I ENGINE UNDER CASE
